Summary of Contents for Russound R8DT

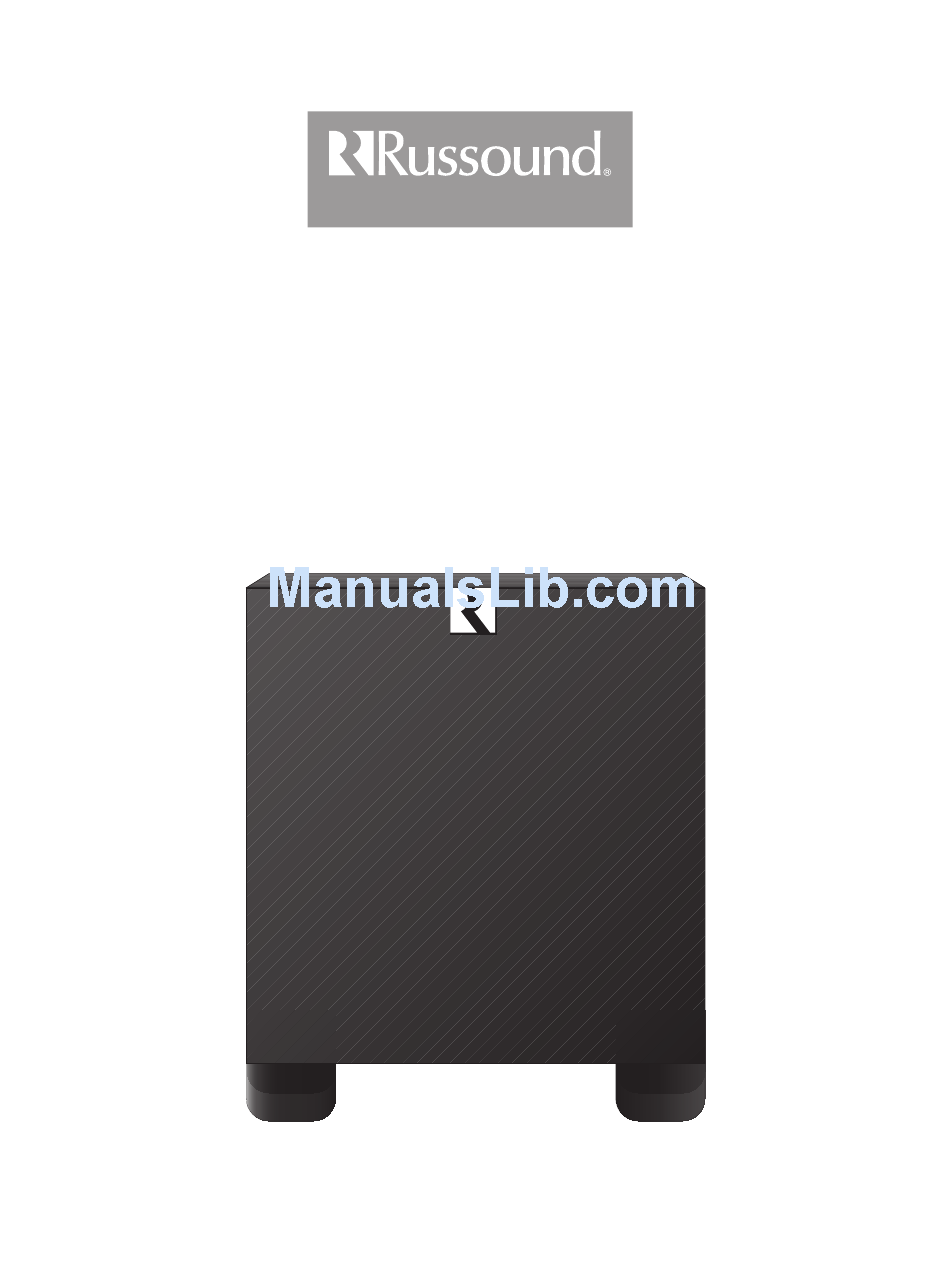

- Page 1 Complement Series R8DT 8” Powered Subwoofer User’s Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS “WARNING” TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. “CAUTION” TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI- FIED SERVICE PERSONNEL. - Page 3 R8DT keeps up its end of the deal in your home theater or audio system. With its built-in amplifier,...
- Page 4 Speaker Level Output: Spring-loaded terminals accept speaker wire up to 12 gauge in size. Output terminals feed audio to the speakers which would otherwise be directly connected to the amplifier/receiver’s main Left and Right outputs...
-
Page 5: Connection Options
Method B. The preamp (variable line level) outputs from the receiver carry the full range of audio signal frequency and the R8DT will use the active crossover to filter out the mid- and high-range frequen- cies, those which the subwoofer is not designed to reproduce. - Page 6 The closer it is placed to a corner, the more emphasized the bass will sound. The R8DT should also be placed close enough to the audio system so that cables and wires are as short a run as possible.
-
Page 7: Specifications
Dimensions: WARRANTY The Russound R8DT is fully guaranteed for two (2) years from the date of purchase against all defects in materials and workmanship. During this period Russound will replace any defective parts and correct any defect in workman- ship without charge for either parts or labor. For this warranty to apply, the unit must be installed and used according to its written instructions. - Page 8 Complement Series R8DT Powered Subwoofer User’s Manual 5 Forbes Rd. Newmarket, NH 03857, USA Tel 603.659.5170 • Fax 603.659.5388 e-mail: tech@russound.com 28-1171 01/04/05 Copyright © 2005 Russound ® All rights reserved.
