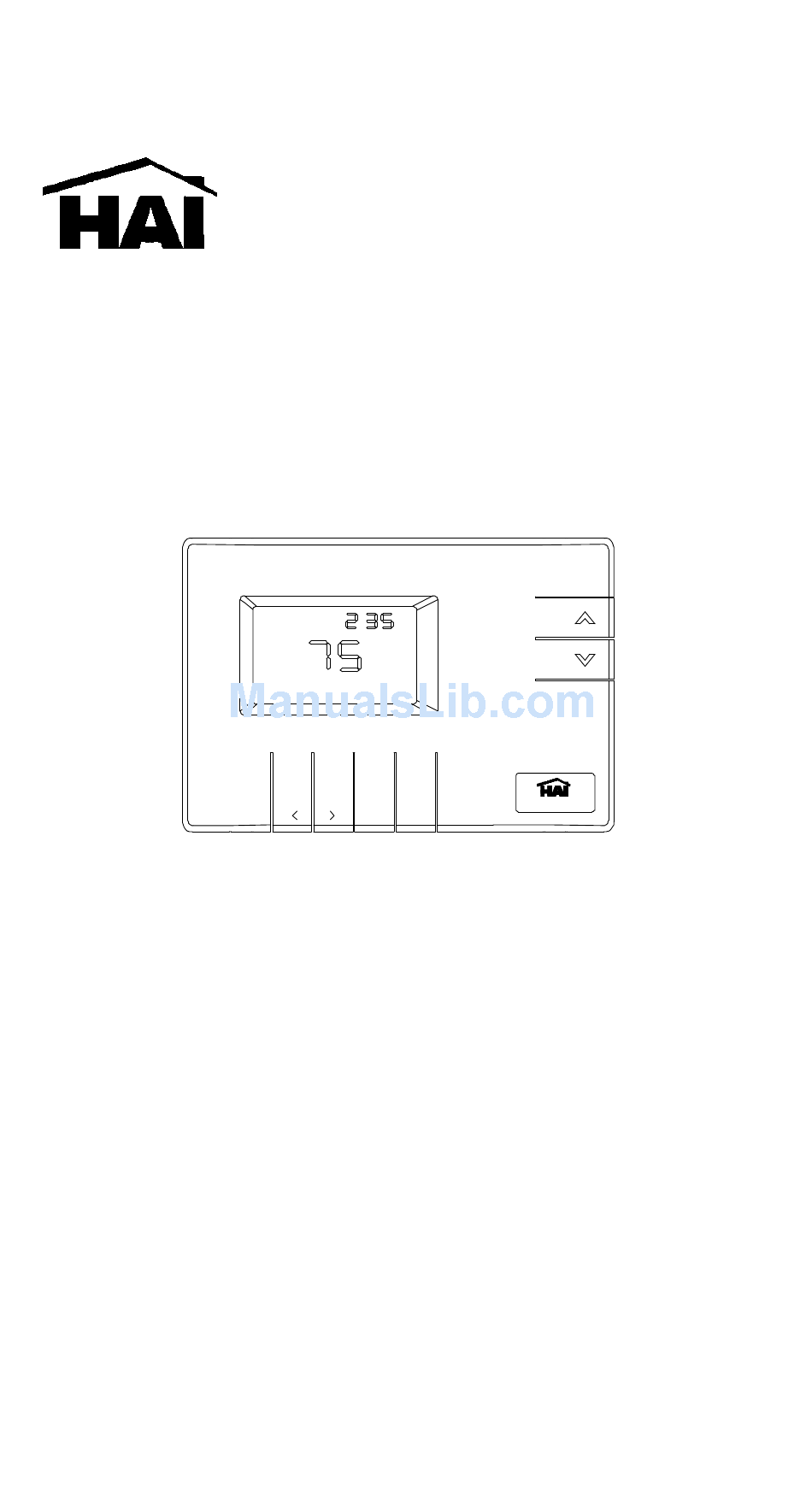

- Page 1 O M N I S T A T ELECTRONIC COMMUNICATING THERMOSTAT COOL AUTO Hold Prog Mode OMNISTAT Owner's Manual RC-80 Single Stage Heat/Cool Document Number 13R00-1 January, 1997...
- Page 2 Copyright © 1997 Home Automation, Inc. All Rights Reserved...
-
Page 3: Table Of Contents
INTRODUCTION ........DESCRIPTION ........MAINTENANCE . - Page 4 This thermostat is Listed by Underwriter's Laboratories and UL Canada. This thermostat has been tested and found to comply with the requirements of the European Union for Electromagnetic Interference, Electromagnetic Immunity and Safety under the applicable EMI and Low Voltage Directives and Standards.
-
Page 5: Introduction
DESCRIPTION The RC-80 is a precision digital thermostat for single stage heating and cooling systems. It has the capability of being controlled both locally and by remote control. It offers programmability, stand alone operation, and robust, optically isolated communications with automation systems, utility control systems, and personal computers. -
Page 6: Operation
OPERATION To take advantage of all the benefits and features offered by your thermostat, we recommend that you start by becoming familiar with its operation. Hold 1- Display The Display is used to show current time, temperature, outdoor temperature (optional), mode, and to give useful information that will guide you through normal operation of your thermostat. - Page 7 4- Mode Press the Mode key to set the thermostat mode to Off, Heat, Cool, or Auto. In Off mode, the heating and cooling systems are both off and do not respond to changes in temperature settings. In Heat mode, the heating system responds to maintain your desired heating setting.
-
Page 8: Display
DISPLAY The following icons will be displayed during normal operation: HOLD MORN NITE REMOTE 1- Temperature Display Shows the current temperature, desired temperature, or heating and cooling settings. 2- Time Display Shows the current time of day. DESIRED DESIRED is displayed when the temperature display shows the desired temperature setting. - Page 9 REMOTE is displayed when the last command received by the thermostat was sent by a remote system. 12- Period Indicators MORN, DAY, EVE, or NITE temperature changes are made by the thermostat programs. HOLD HOLD is displayed when the system is in Hold mode. is displayed when scheduled...
-
Page 10: Filter Reminder
You will be more comfortable at a higher cool setting, which saves energy. Remember to allow some time for the thermostat to adapt to a new setting. -
Page 11: Setting The Current Time And Day
SETTING THE CURRENT TIME AND DAY To set or change the current time and day, press and release the Prog key. The hour will blink. Use the arrow keys ( - ) to change the hour. Press the Prog key to advance to minutes. Use the arrow keys ( - ) to change minutes. -
Page 12: Programming
Your thermostat will follow a set of time scheduled programs on weekdays (Monday-Friday), on Saturday, and on Sunday. This will allow you to have different heating and cooling settings on Saturday and Sunday, than you normally would have for weekdays (Monday - Friday). -
Page 13: Setting Time Schedules
SETTING TIME SCHEDULES To view or change the programming time schedules of your thermostat, press and the Prog key four times. The weekday MORN time will flash. Use the arrow keys ( - ) to change the scheduled time for the displayed period (MORN, DAY, EVE, or NITE). - Page 14 Press the Prog key to advance to the next period.
-
Page 15: Day/Night Mode
"REMOTE" will be displayed when the remote system has control of the thermostat. You cannot use the arrow keys ( - ) or any other key on the thermostat to override the remote system. To resume normal operation of your thermostat, you must turn the energy saver feature... -
Page 16: System Mode
"REMOTE" will be displayed when a command is sent from the automation system or personal computer. You can use the arrow keys ( - ) on the thermostat to change the temperature settings. When the temperature settings are changed at the thermostat, "REMOTE"... -
Page 17: Time Schedules
TIME SCHEDULES The table below shows the time schedules that are currently set into your thermostat. There is a blank table at the bottom that can be used to plan changes to the current schedule. WEEKDAYS SATURDAYS SUNDAYS MORN COOL... - Page 18 COOL HEAT...
-
Page 19: Two Year Limited Warranty
TWO YEAR LIMITED WARRANTY Home Automation, Inc. (HAI), warrants this product against defects in material and workmanship, under normal use and service, for a period of two (2) years from the date of purchase by the consumer. During the warranty period, HAI will repair or replace, at its option, any HAI thermostat that fails due to defect.
