Page 1: Heat Pump

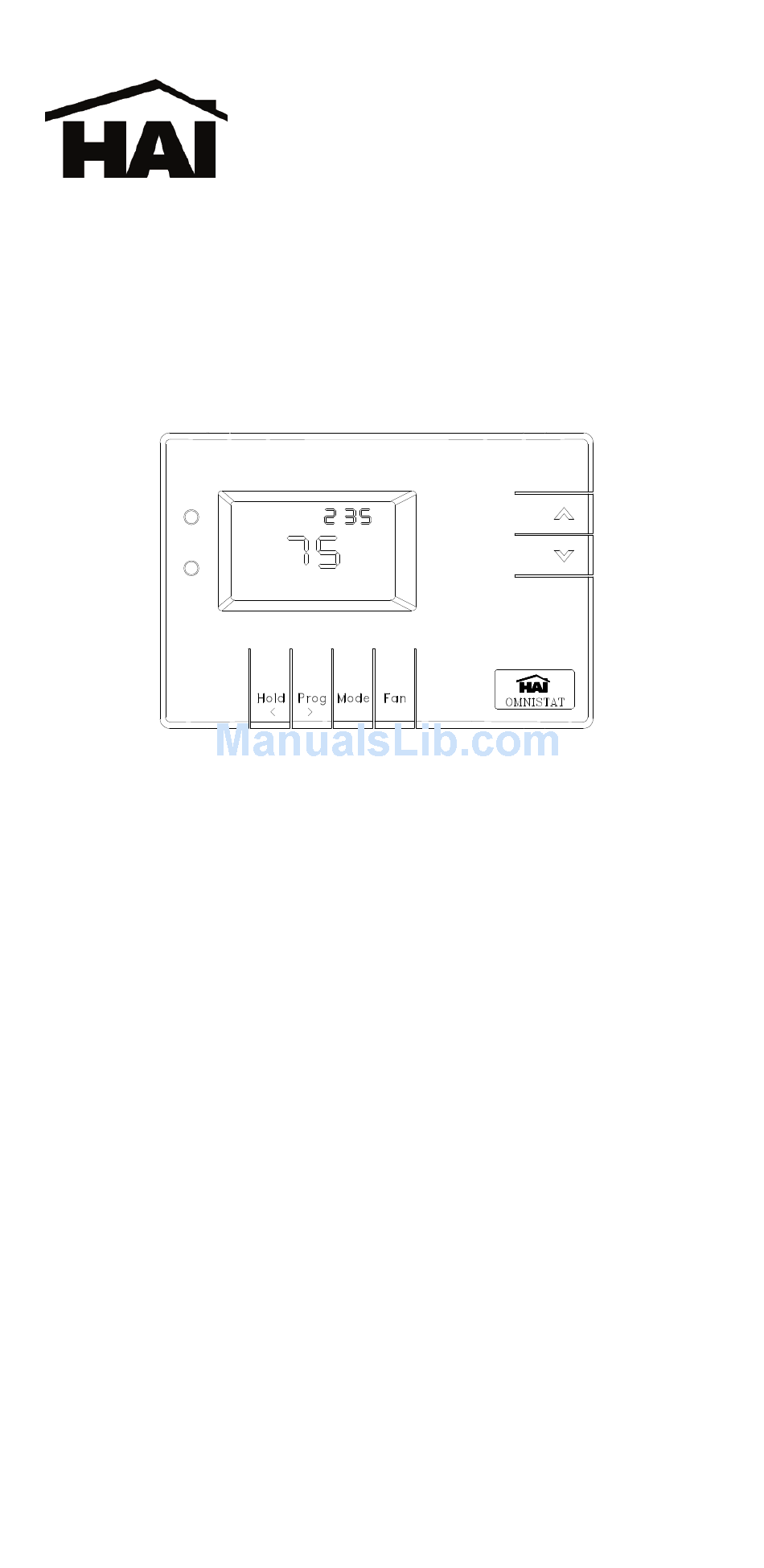

O M N I S T A T ELECTRONIC COMMUNICATING THERMOSTAT COOL AUTO Owner's Manual RC-100B / RC-100BZ Heat Pump 2 Stage Heat / 1 Stage Cool Document Number 13R00-3 May, 2007... - Page 2 This thermostat is Listed by Underwriter's Laboratories and UL Canada. This thermostat has been tested and found to comply with the requirements of the European Union for Electromagnetic Interference, Electromagnetic Immunity and Safety under the applicable EMI and Low Voltage Directives and Standards.
-
Page 3: Table Of Contents
INTRODUCTION ... 1 DESCRIPTION... 1 MAINTENANCE... 1 ABOUT HEAT PUMPS..2 ENERGY EFFICIENT CONTROL ... 3 OPERATION ... 4 DISPLAY ... 7 FILTER REMINDER ... 9 ANTICIPATION ... 9 SETTING THE CURRENT TIME AND DAY ... 10 PROGRAMMING ... 10 SETTING TIME SCHEDULES... -
Page 4: Introduction
These items have a check box ( ) for your installer to indicate which features are used in your system. As an EPA ENERGY STAR Partner, Home Automation, Inc. has determined that this thermostat meets the ENERGY STAR guidelines for energy efficiency. -
Page 5: About Heat Pumps
ABOUT HEAT PUMPS... A heat pump is a mechanical refrigeration system that operates in two modes, heating and cooling. In cooling mode, the heat pump takes indoor heat and pumps it outside, just like a standard air conditioner. In heating mode, the process is reversed: the heat pump takes outside heat and pumps it inside. -
Page 6: Energy Efficient Control
ENERGY EFFICIENT CONTROL Using the programmable or remote control features of your thermostat, you can save energy costs by setting back the thermostat during unoccupied times. This reduces the energy loss from indoors to outdoors. In the past, it has been said that heat pumps should not be set back because it takes more energy to re-heat the premises than to keep it at the same temperature. -
Page 7: Operation
OPERATION To take advantage of all the benefits and features offered by your thermostat, we recommend that you start by becoming familiar with its operation. 1- Display The Display is used to show current time, temperature, outdoor temperature (optional), mode, and to give useful information that will guide you through normal operation of your thermostat. - Page 8 MORN, DAY, EVE, and NITE periods. 4- Mode Press the Mode key to set the thermostat mode to Off, Heat, Cool, Auto, or EM Heat. In Off mode, the heating and cooling systems are both off and do not respond to changes in temperature settings.
- Page 9 ∨ 6- Down Arrow ( Press the Down Arrow key to lower the desired temperature. ∧ 7- Up Arrow ( Press the Up Arrow key to raise the desired temperature. 8- Aux Heat Indicator The AUX HEAT indicator (green) glows when the auxiliary heat is 9- Check Indicator The CHECK indicator (red) may be used to indicate a malfunction of the heat pump, or for some other condition.
-
Page 10: Display
DISPLAY The following icons will be displayed during normal operation: HOLD MORN NITE REMOTE 1- Temperature Display Shows the current temperature, desired temperature, or heating and cooling settings. 2- Time Display Shows the current time of day. DESIRED DESIRED is displayed when the temperature display shows the desired temperature setting. - Page 11 REMOTE is displayed when the last command received by the thermostat was sent by a remote system. 12- Period Indicators MORN, DAY, EVE, or NITE is displayed when scheduled temperature changes are made by the thermostat programs. is displayed when the Auxiliary heat is on.
-
Page 12: Filter Reminder
You will be more comfortable at a higher cool setting, which saves energy. Remember to allow some time for the thermostat to adapt to a new setting. -
Page 13: Setting The Current Time And Day
SETTING THE CURRENT TIME AND DAY To set or change the current time and day, press and release the Prog key. The hour will blink. Use the arrow keys ( 2. Press the Prog key to advance to minutes. 3. Use the arrow keys ( 4. -
Page 14: Programming
PROGRAMMING Your thermostat may be programmed to adjust the heating and cooling settings up to 4 times per day (MORN, DAY, EVE, and NITE). You can setup a temperature time schedule for weekdays, Saturday, and Sunday. To enter programming mode, press the Prog key 4 times. -
Page 15: Setting Time Schedules
SETTING TIME SCHEDULES To view or change the programming time schedules of your thermostat, press and the Prog key four times. The weekday MORN time will flash. 1. Use the arrow keys ( displayed period (MORN, DAY, EVE, or NITE). -
Page 16: Day/Night Mode
"REMOTE" will be displayed when the remote system has control of the thermostat. You cannot use the arrow keys (∧−∨) or any other key on the thermostat to override the remote system. To resume normal operation of your thermostat, you must turn the energy saver feature off at the remote system. -
Page 17: System Mode
SYSTEM MODE Your thermostat can be connected to an automation system or personal computer. With network software, the remote system can send commands to the thermostat to change mode, cool setting, heat setting, status of fan and hold, and other items. -
Page 18: Time Schedules
TIME SCHEDULES The table below shows the time schedules that are currently set into your thermostat. There is a blank table at the bottom that can be used to plan changes to the current schedule. WEEKDAYS MORN COOL HEAT COOL... -
Page 20: Two Year Limited Warranty
TWO YEAR LIMITED WARRANTY Home Automation, Inc. (HAI), warrants this product against defects in material and workmanship, under normal use and service, for a period of two (2) years from the date of purchase by the consumer. During the warranty period, HAI will repair or replace, at its option, any HAI thermostat that fails due to defect.
