DESCRIPTION
The Model 38A14-1 Scene Switch Remote Control is used for controlling rooms of HLC lighting by sending infrared (IR) signals to
Model 38A00-1 6-Button Scene Switches with IR Receivers. To activate lighting, point the 38A14-1 Remote Control at a 38A00-1
Scene Switch and press the desired buttons. The buttons on the 38A14-1 Remote Control simulate pressing the pushbuttons on the
38A00-1 Scene Switch with IR Receiver. The room can be turned on, turned off, dimmed, brightened, or set to a scene (A-D).
The Model 38A14-1 Scene Switch Remote Control has 4 separate IR codes for each button so that it can be used to control up to 4
Model 38A00-1 Scene Switches with IR Receivers located in the same general area of a room.
PROGRAMMING
By default, the Model 38A00-1 Scene Switch with IR Receiver is configured to respond to Room 1 IR commands. It may be changed
to responds to IR commands for Room 1 – Room 4, or disabled so that it does not respond to IR commands.

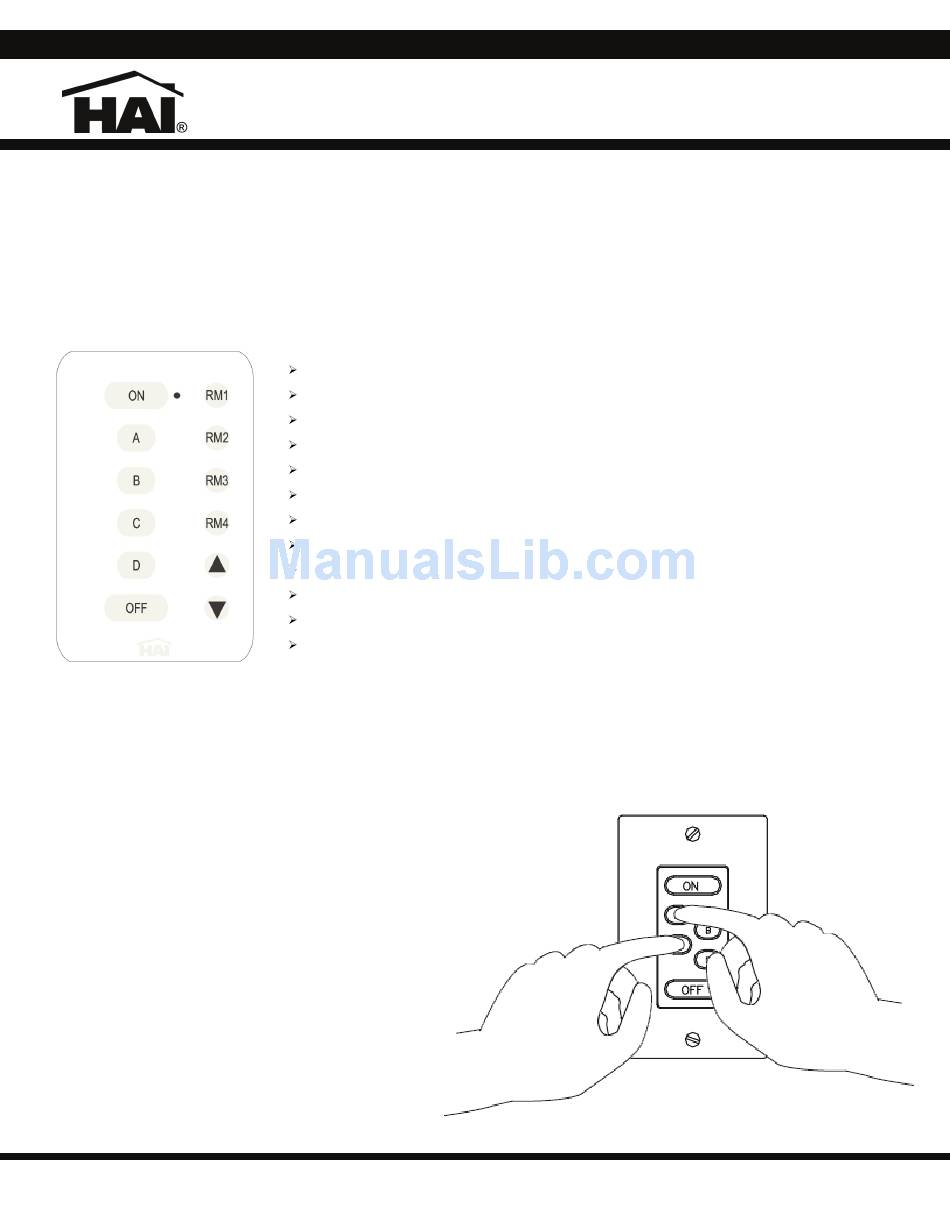

To program the 38A00-1 Scene Switch to respond to IR
commands for Room 1 – Room 4, or disabled:
1) Press the A and C pushbuttons simultaneously for 1
second. A pushbutton will begin to blink indicating
the programmed Room for that switch (i.e. Room 1-4
is pushbuttons A-D, respectively).
Note: If the current Room is programmed to OFF
(disabled), upon entering programming mode, the
"A" pushbutton will blink.
2) Press the pushbutton that corresponds to the Room
that you wish to program (i.e. Room 1-4 is
pushbuttons A-D, respectively) or "OFF" to disable.
The respective pushbutton will begin to blink.
3) Press the "ON" pushbutton to save the setting in the
switch and exit programming.
Home Automation, Inc.
Model 38A14-1 Scene Switch Remote Control
The "ON" pushbutton will brighten the room to 100% at each switch's default fade rate when pressed.
The "OFF" pushbutton will fade the room to 0% (off) at each switch's default fade rate when pressed.
The "A" pushbutton will adjust the lights in the room to their preset level at their default fade rate when pressed.
The "B" pushbutton will adjust the lights in the room to their preset level at their default fade rate when pressed.
The "C" pushbutton will adjust the lights in the room to their preset level at their default fade rate when pressed.
The "D" pushbutton will adjust the lights in the room to their preset level at their default fade rate when pressed.
The "▲"pushbutton will slowly brighten the room when pressed, and then stop brightening when it is released.
The "▼" pushbutton will slowly dim the room when pressed, and then stop dimming when it is released.
The "RM1" pushbutton will set the remote to control Scene Switches programmed for Room 1 IR commands.
The "RM2" pushbutton will set the remote to control Scene Switches programmed for Room 2 IR commands.
The "RM3" pushbutton will set the remote to control Scene Switches programmed for Room 3 IR commands.
The "RM4" pushbutton will set the remote to control Scene Switches programmed for Room 4 IR commands.
38I14-1
