For the following Models:
40A00-1 HAI 15A Relay Switch (referred to as HAI UPB
37A00-1 HAI Auxiliary Switch
READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE
This HAI UPB™ Wall Switch and Auxiliary Switch is intended for installation in accordance with the National Electrical Code and
local codes and regulations. It is recommended that a qualified electrician perform this installation. Retain these instructions for
reference.
This product is for indoor use only. Connect only copper or copper clad wire to this device.
Important Notes Prior To Installation
1. All HAI UPB™ Wall Switches require a neutral (white) connection wire.
2. Be sure that all power to the load has been disconnected by turning off the circuit breaker. Installing an HAI UPB™ Wall Switch
or Auxiliary Switch with power on may expose you to dangerous voltage and may damage the device.
HAI UPB™ Wall Switch Overview

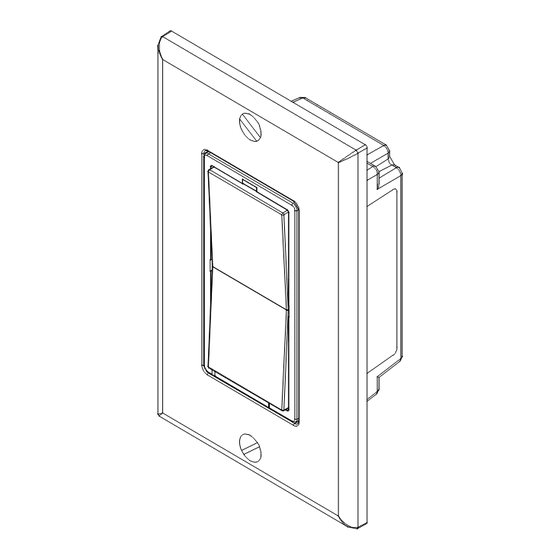

The HAI UPB™ Wall Switch (Figure 1) allows for local control of loads by using the Decora-style rocker switch. It also incorporates
the UPB™ two-way powerline communication technology that gives it the ability to be remotely controlled by UPB™ compatible
controllers. The HAI UPB™ Wall Switch is also capable of transmitting UPB™ messages when the rocker switch is turned on or
turned off.
The HAI 15A Relay Switch is used to control loads such as receptacles, motor-operated appliances (i.e. fans), and fluorescent lighting
fixtures.
HAI UPB™ 15A Relay Switch and Auxiliary Switch
Installation and Operating Instructions
LED
INDICATOR
TOP
(ON)
BOTTOM
(OFF)

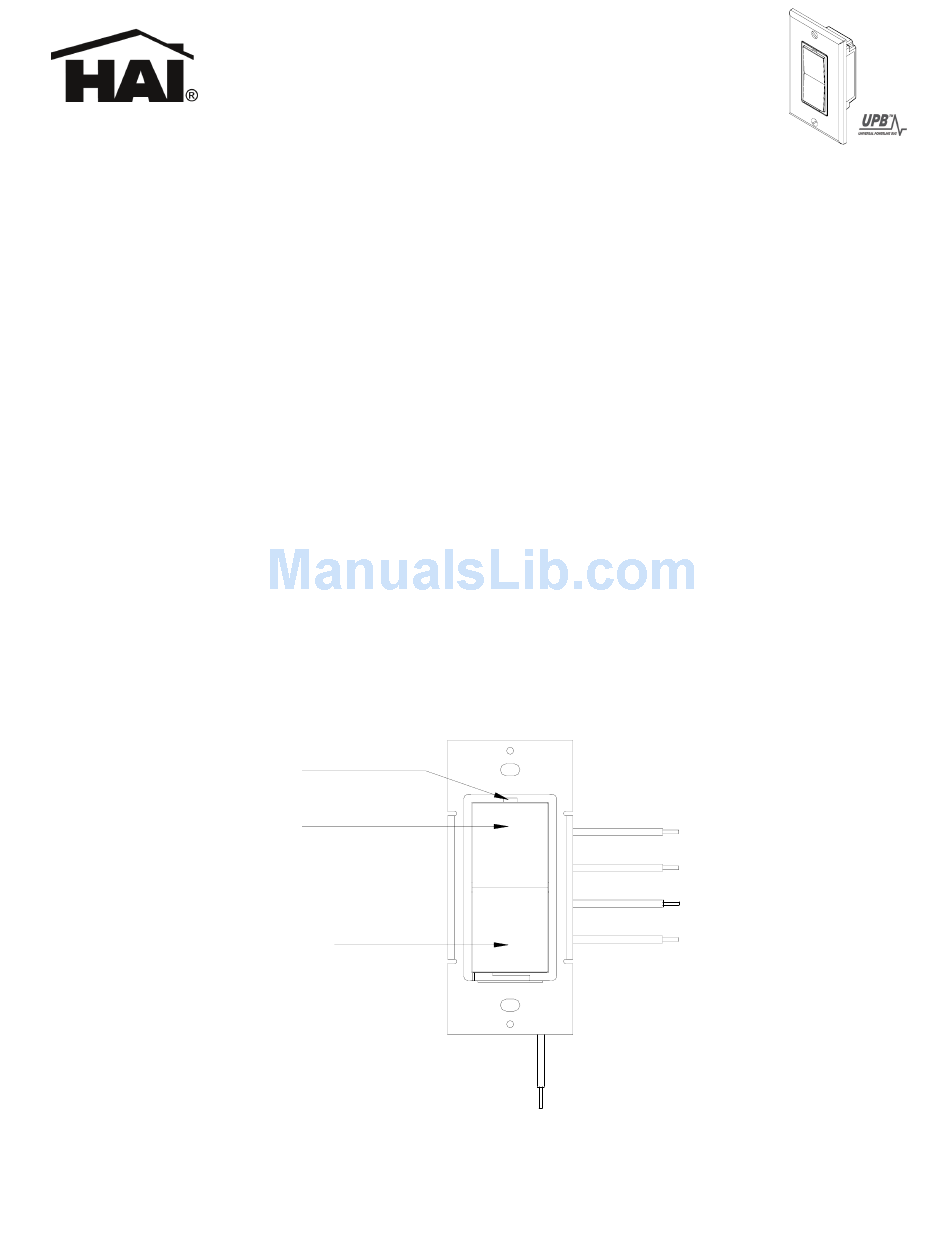

Figure 1 - HAI UPB™ Wall Switch
Wall Switch, in this document), and
™
BLACK
WHITE
RED
YELLOW
GREEN
GROUND
LINE
NEUTRAL
LOAD
CONTROL
40I00-1, Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAI 37A00-1
Summary of Contents for HAI 37A00-1
- Page 1 1. All HAI UPB™ Wall Switches require a neutral (white) connection wire. 2. Be sure that all power to the load has been disconnected by turning off the circuit breaker. Installing an HAI UPB™ Wall Switch or Auxiliary Switch with power on may expose you to dangerous voltage and may damage the device.
- Page 2 HAI Auxiliary Switch Overview The 37A00-1 HAI Auxiliary Switch (Figure 2) is an optional companion device used with the HAI UPB™ Wall Switch for multi-way circuits. The HAI Auxiliary Switch has a Decora-style rocker switch that controls the load in the exact same manner as the Decora- style rocker switch on the HAI UPB™...
- Page 3 5. After all connections have been made, be certain that all wire connectors are firmly attached and there is no exposed copper. 6. Gently place the wires and HAI UPB™ Wall Switch into the wall box with the LED at the top of device. Using the supplied screws, attach the HAI UPB™...
- Page 4 On the HAI UPB™ Wall Switch that you want to reset to factory default, tap the rocker switch quickly 5 times. The HAI UPB™ Wall Switch will cycle the load one time and blink its LED blue to indicate that it is ready to be reset.
-
Page 5: Specifications
Input Power Input Frequency Operating Temperature Note: It is normal for this switch to make a slight buzzing sound during operation. It is also normal for the switch and wall plate to feel warm to the touch. LIMITED WARRANTY HAI warrants this product against defects in material and workmanship, under normal use and service, for a period of two (2) years from the date of purchase.
