38A00-3 HAI UPB™ Lumina Mode Controller
READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE
This HAI UPB™ Lumina Mode Controller is intended for installation in accordance with the National Electrical Code and local
regulations. It is recommended that a qualified electrician perform this installation. Retain these instructions for reference.
This product is for indoor use only. Connect only copper or copper clad wire to this device.
Important Notes Prior To Installation
Be sure that all power to the load has been disconnected by turning off the circuit breaker. Installing an HAI UPB™ Lumina Mode
Controller with power on may expose you to dangerous voltage and may damage the device.
HAI UPB™ Lumina Mode Controller Overview
The HAI UPB™ Lumina Mode Controller (Figure 1) is used to easily change the mode before leaving your house, going to bed,
arriving home, going on vacation, entertaining for the evening, or any other special event. It uses the UPB™ two-way powerline
communication technology to communicate with a Lumina controller to initiate programs for preset lights and temperatures.
The HAI UPB™ Lumina Mode Controller has six pushbuttons labeled AWAY, HOME, SLEEP, VAC (Vacation), SPCL (Special),
and PARTY. Each pushbutton is slightly backlit so that the buttons can be seen in a dark room. The pushbuttons of the current
Lumina Mode will be distinctly illuminated, so that you can always tell which mode you are currently in just by glancing at the
Lumina Mode Controller.
To change the current mode from a Lumina Mode Controller, simply press the desired mode button. The new mode button will
illuminate and the lighting and temperatures in your home will be changed accordingly.
HAI UPB™ Lumina Mode Controller
Installation and Operating Instructions

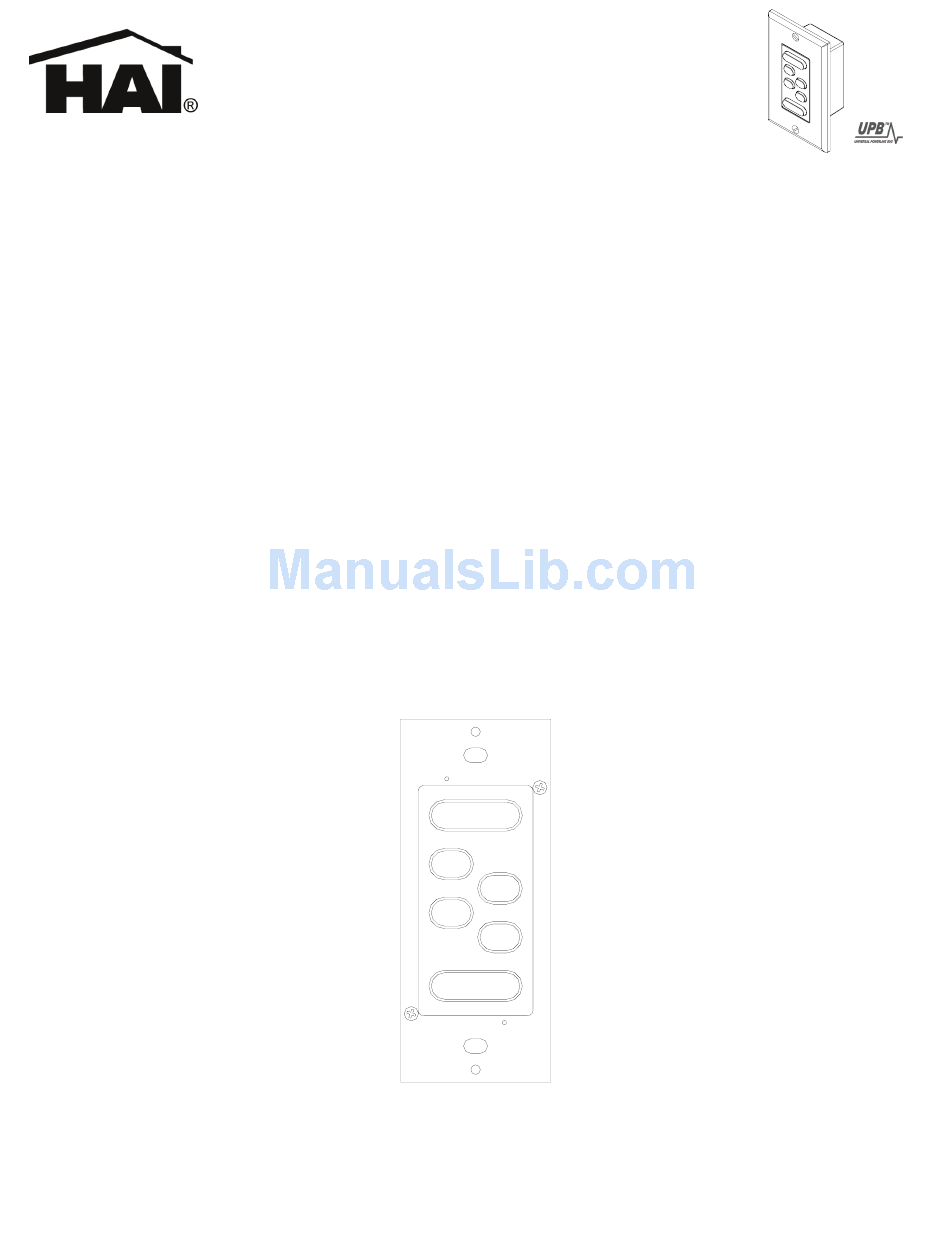

Figure 1 - HAI UPB™ Lumina Mode Controller
AWAY
SLEEP
VAC
SPCL
PARTY
HOME
38I00-3, Rev B
Advertisement
Table of Contents
Related Manuals for HAI 38A00-3
Summary of Contents for HAI 38A00-3
- Page 1 HAI UPB™ Lumina Mode Controller Installation and Operating Instructions For the following Model: 38A00-3 HAI UPB™ Lumina Mode Controller READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE This HAI UPB™ Lumina Mode Controller is intended for installation in accordance with the National Electrical Code and local regulations.
- Page 2 7. After testing the HAI UPB™ Lumina Mode Controller for proper local operation, install a Decora-style faceplate over the HAI UPB™ Lumina Mode Controller. MAIN CIRCUIT BREAKER PANEL 120VAC 60Hz AWAY SLEEP SPCL PARTY HOME BLACK WHITE Figure 3 – Wiring Diagram Figure 2 – Changing Switch Color 38A00-3 LUMINA MODE CONTROLLER NEUTRAL LINE...
- Page 3 UPB™ Wall Switch Dimmers will slowly brighten, and then stop brightening when the “AWAY” pushbutton is released. In its factory default configuration, the “HOME” pushbutton will fade the UPB™ Wall Switch Dimmers to 0% (off) at each switch’s default fade rate when pressed.
-
Page 4: Specifications
Input Frequency Operating Temperature Note: It is normal for this switch to make a slight buzzing sound during operation. LIMITED WARRANTY HAI warrants this product against defects in material and workmanship, under normal use and service, for a period of two (2) years from the date of purchase.
