Installation

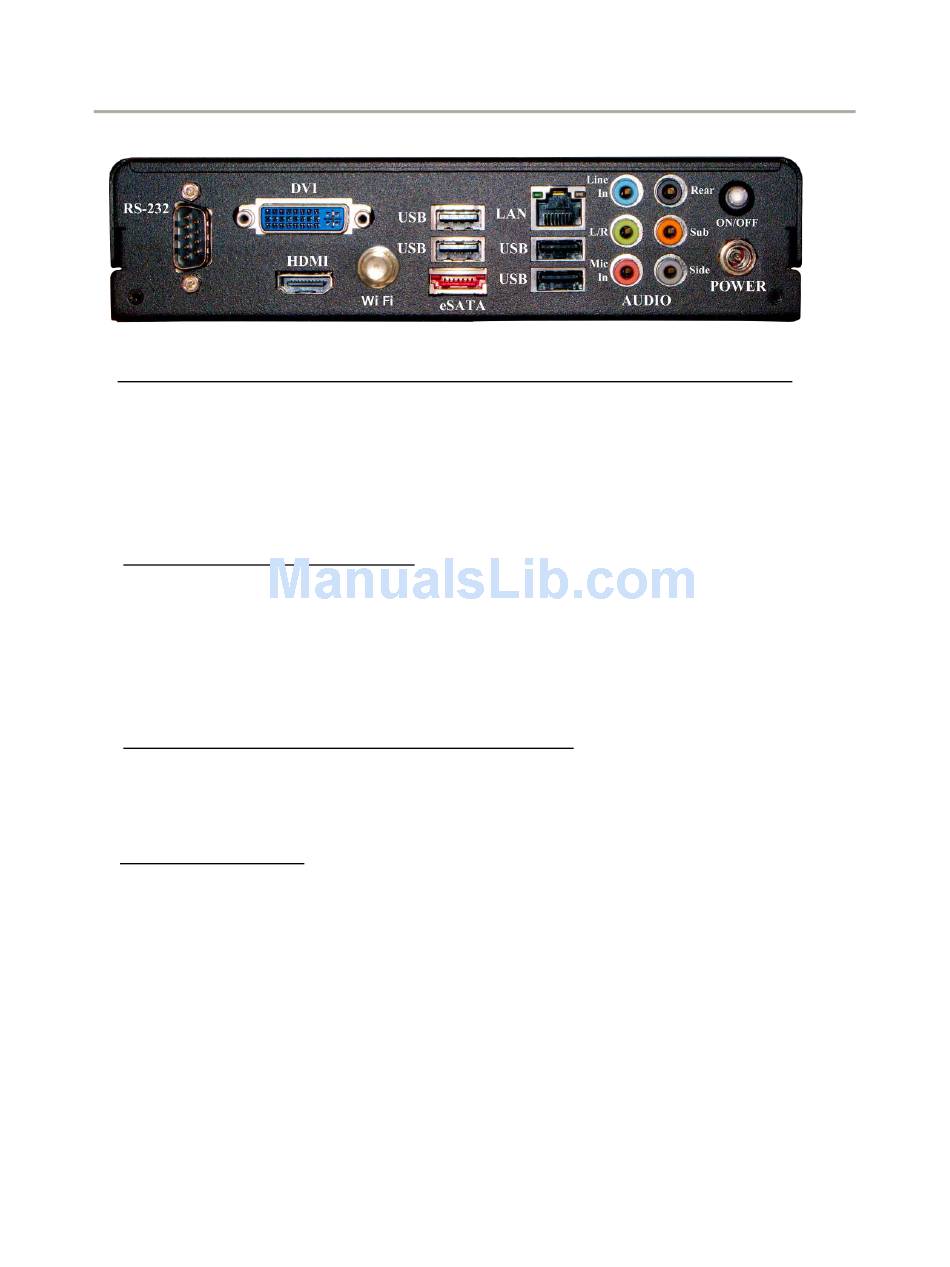

Rear Connector Layout
Audio Port
Blue
Green
Pink
Orange
Black
Grey
Audio Port
Blue
Green
Pink
Orange
Black
Grey
LAN Connector (with LED status indicator)
Green/Light Up/Blink = 10 Mbps/Link/Activity
Green and Green/Light Up/Blink = 100 Mbps/Link/Activity
Green and Orange/Light Up/Blink = 1000 Mbps/Link/Activity
Wireless Antenna
2-Channel 4-Channel
Line-In
Line-In
Line-Out
Front Speaker Out Front Speaker Out
Mic In
Mic In
N/A
N/A
N/A
Rear Speaker Out
N/A
N/A
7.1-Channel
Line-In
Front Speaker Out
Mic In
Center/Subwoofer Out
Rear Speaker Out
Side Speaker Out
Black 6dBi 2.4GHz wireless antenna
5.1-Channel
Line-In
Mic In
Center/Subwoofer Out
Rear Speaker Out
N/A
9
