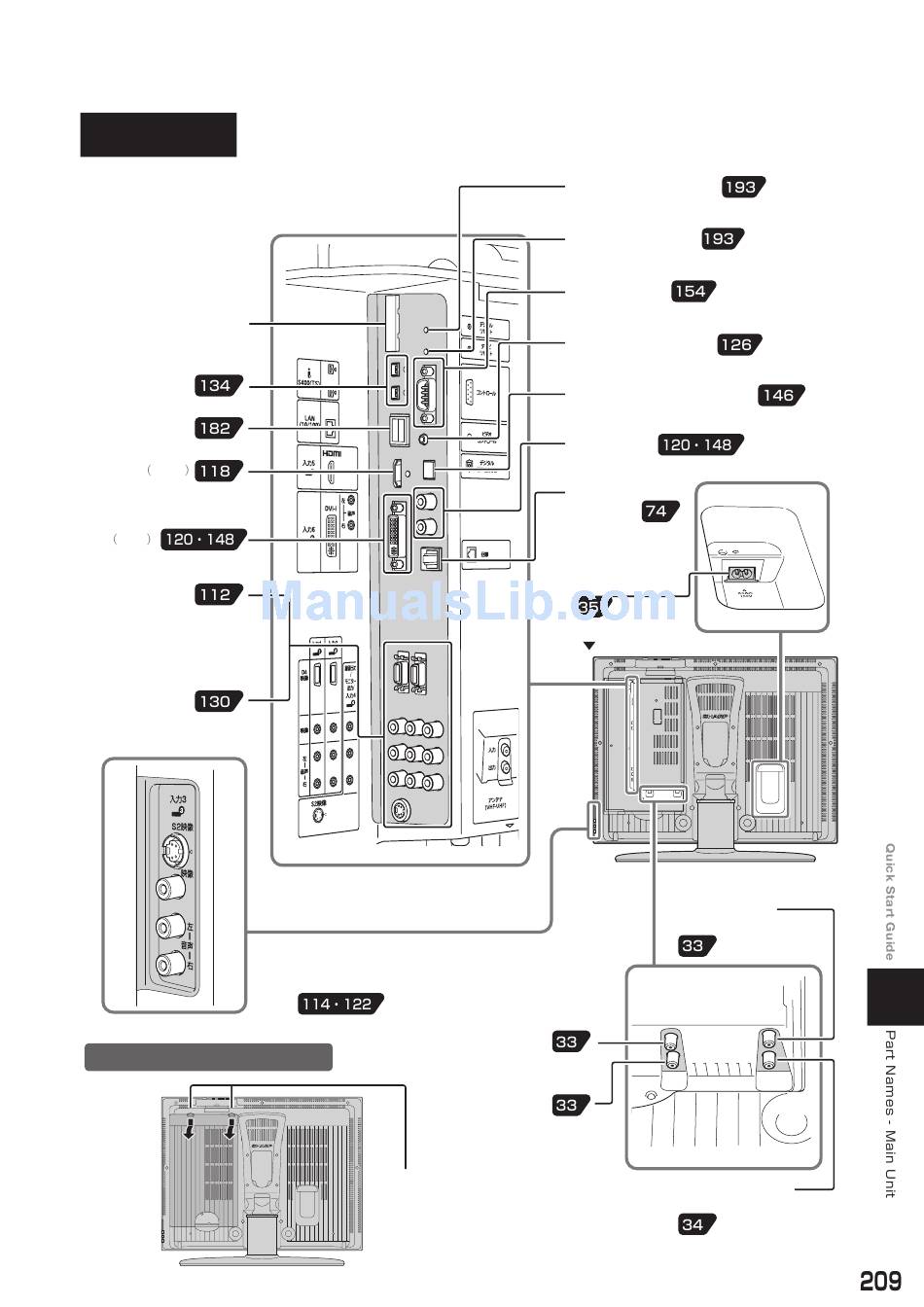

Rear view
Terminal cover for Factory
Adjustment
i.LINK (TS) jacks
i.LINK (TS) jacks
LAN jack
AV in 5 HDMI
AV in 6 DVI-I
AV in 1 · 2
Digital out/
Monitor out/ AV in 4
Opening the terminal covers
The illustrations below are those of LC-26BD1. LC-26BD2 has the same layout of jacks and terminals as
LC-26BD1.
AV in 3
Holding the lock at the top of the
cover downward, pull the cover off
the back of the main unit.
Digital module reset button
TV module reset button
RS-232C terminal
VCR controller connector
Digital audio output jack (optical)
AV in 6 (audio)
Telephone line jack
Power cable connector
(AC 100V)
Inside the terminal covers
Terrestrial digital
antenna input terminal
VHF/UHF antenna
input terminal
VHF/UHF antenna
output terminal
BS/CS 110 antenna
input terminal
