Behringer Eurolight LD6230 User Manual

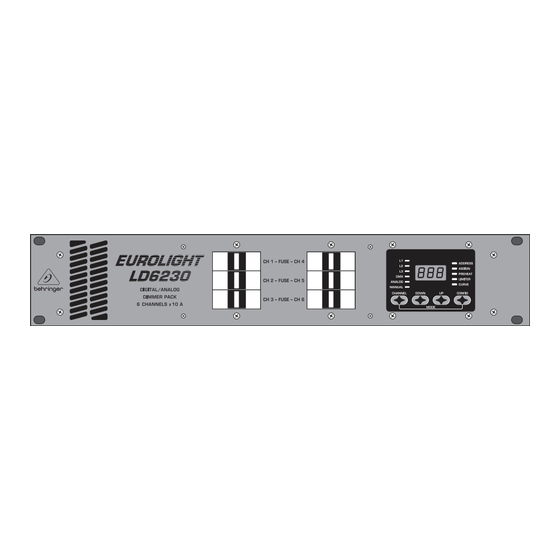

Professional 6-channel 10a dimmer pack with dmx and analog control
Hide thumbs Also See for Eurolight LD6230:

Advertisement

User Manual
EUROLIGHT LD6230
Professional 6-Channel 10 A Dimmer Pack with DMX and Analog Control

Advertisement

Table of Contents
loading

Summary of Contents for Behringer Eurolight LD6230

  • Page 1 User Manual EUROLIGHT LD6230 Professional 6-Channel 10 A Dimmer Pack with DMX and Analog Control...
  • Page 2: Table Of Contents

    EUROLIGHT LD6230 User Manual Table of Contents Important Safety Instructions ........3 Legal Disclaimer ............. 3 Limited warranty ............3 1. Introduction ............... 4 1.1 Before you get started ............4 1.2 The user’s manual ............... 4 2. Control Elements ............5 2.1 Configuration mode ............
  • Page 3: Important Safety Instructions

    EUROLIGHT LD6230 User Manual 9. Do not defeat the safety purpose of the polarized TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED Important Safety or grounding-type plug. A polarized plug has two blades UNDERTAKING OR REPRESENTATION. THIS MANUAL Instructions with one wider than the other. A grounding-type plug IS COPYRIGHTED.
  • Page 4: Introduction

    1. Introduction 1.1.3 Rack installation As a BEHRINGER EUROLIGHT LD6230 owner, you have a high-end dimmer pack The LD6230 requires two height units (2 HU) when installed in a 19-inch rack. at your hands. It was designed to answer to the high demands of lighting...
  • Page 5: Control Elements

    Fig. 2.1: EUROLIGHT LD6230’s front panel (1) Ventilation openings are located on the front panel. Their position at (4) Use the UP and DOWN keys to navigate through individual menus.
  • Page 6: Configuration Mode

    ◊ Transmission curves can be separately adjusted for each individual 2.1.3 Preheat channel on the EUROLIGHT LD6230. When you press the CONFIG key once again, you get to the PREHEAT menu 2.2 DMX mode (the PREHEAT LED lights up). Use the UP and DOWN keys to enter the preheat value (0 to 15).
  • Page 7: Analog Mode

    2.3 ANALOG mode ULTRAPAR UP1000 In addition to the digital DMX mode, your EUROLIGHT LD6230 dimmer pack also lets you work in ANALOG mode. You get to this mode by pressing the MODE key while the CONFIG key is pressed (the ANALOG LED lights up). The analog control signal (0 - 10 V) is transfered to the dimmer pack via an 8-pole DIN connector located on the rear panel.
  • Page 8: Connectors And Initial Operation

    2 = Data 1 (-) 3 = Data 2 (+) show if correct voltage is applied to your EUROLIGHT LD6230. If the voltage is not correct (i.e. too high or too low), the corresponding LED(s) begin to blink. Since the dimmer’s circuitry is powered by all three phases, the dimmer remains functioning even if two out of three phases malfunction.
  • Page 9: Specifications

    Weight approx. 9.80 kg (approx. 21.6 lbs) BEHRINGER continuously strives to assure the highest quality standards possible. Required modifications may be implemented without prior notice. Technical data and the appearance of the unit may deviate from the above values and/or illustrations.
  • Page 10 EUROLIGHT LD6230 User Manual FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION EUROLIGHT LD6230 MUSIC Group Services US Inc. Responsible Party Name: 18912 North Creek Parkway, Address: Suite 200 Bothell, WA 98011, Phone: +1 425 672 0816 Phone/Fax No.: Fax: +1 425 673 7647 EUROLIGHT LD6230 complies with the FCC rules as mentioned in the following paragraph:...
