GPS NAVIGATION SYSTEM Hardware Instruction Manual... - Page 2 Hardware Instruction Manual Congratulations on choosing a RoadNavigator product. We have every expectation that you will be completely satisfied with your new purchase. To always guarantee optimal function and performance of your product, we would ask the following: • Before using the appliance for the first time, carefully read the operating instructions and adhere to the safety precautions! •...
-
Page 3: Table Of Contents
Hardware Instruction Manual Contents Brief introduction of hardware Specifications 2.1 Supported file formats Operating the hardware 3.1 Turning the device On/Off and activating ‘sleep mode’ 3.2 The ‘Programs’ menu 3.3 Using music player 3.3.1 Music player explained 3.3.2 Adding files to the playlist 3.4 Using video player 3.4.1 Video player explained 3.4.2 Adding files to the playlist... -
Page 4: Brief Introduction Of Hardware

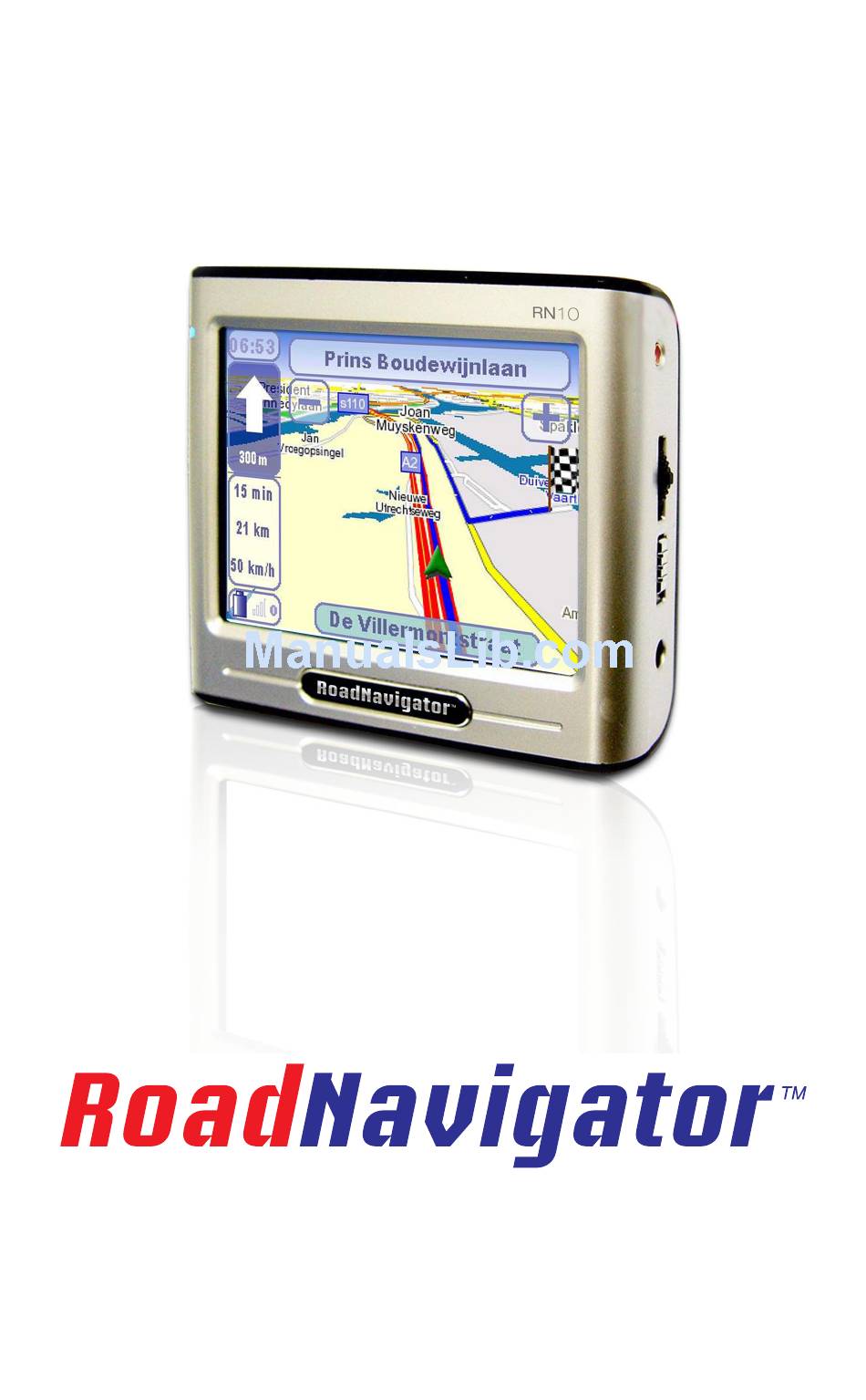

Hardware Instruction Manual 1 Brief introduction of hardware RN10... - Page 5 Hardware Instruction Manual Antenna Menu button Power button (hold down 3 sec.) Touch pen (stylus) External antenna socket Indicator light: Power on: blue light Battery charging: yellow light Battery fully charged: green light Touch screen SD-card slot Headphone jack Reset button Volume and OK button Locking switch DC in (12V)
-
Page 6: Specifications
Hardware Instruction Manual 2 Specifications Size: 90.5mm*78mm*22mm Operation temperature: -10ºC ~ +70ºC Storage temperature: -40ºC ~ +80ºC Operation frequency: 400MHz CPU: Samsung S3C2440A-40 SDRAM: 64MB NAND FLASH: 128mB Navigation Software: CosmicSoftII Operating system: WinCE 4.2 NET Touch screen: TFT 3.5 inch, 320*240 screen resolution Audio output:: Stereo headphone/Built-in 1w speaker DC voltage input:... -
Page 7: Operating The Hardware
Hardware Instruction Manual 3 Operating the hardware 3.1 Turning the device On/Off and activating ‘sleep mode’ When the device is turned off, press the Power button and hold it for more than 3 seconds to turn on the device. The indicator light will be lit and a loading screen will appear on the touch screen. -
Page 8: The 'Programs' Menu
Hardware Instruction Manual 3.2 The ‘Programs’ menu When your device has finished loading after turning it on, you will hear a notification sound and the ‘Programs’ menu will appear. It consists of six buttons: The ‘Navigation’ button Tap this button to operate the navigation software of your device. More information on the operation of the navigation software can be found in the Software User Manual. -
Page 9: Using Music Player
Hardware Instruction Manual 3.3 Using music player 3.3.1 Music player explained After tapping the ‘Music’ button in the ‘Programs’ menu you will enter the music player interface. It consists of the following elements: Tap this button to exit the music player and return to the ‘Programs’... -
Page 10: Adding Files To The Playlist
Hardware Instruction Manual Tap this button to delete the selected file from the playlist. Tap this button to delete all files from the playlist. Tap this button to add files to the playlist. 3.3.2 Adding files to the playlist After tapping the button to add files to the playlist ( ), a file exploring screen will appear showing the content of your SD card. -
Page 11: Using Video Player
Hardware Instruction Manual 3.4 Using video player 3.4.1 Video player explained After tapping the ‘Video’ button in the ‘Programs’ menu you will enter the video player interface. It consists of the following elements: Tap this button to exit the video player and return to the ‘Programs’... -
Page 12: Adding Files To The Playlist
Hardware Instruction Manual Tap this button to delete the selected file from the playlist. Tap this button to delete all files from the playlist. Tap this button to add files to the playlist. 3.4.2 Adding files to the playlist After tapping the button to add files to the playlist ( ), a file exploring screen will appear showing the content of your SD card. -
Page 13: Using Text Viewer
Hardware Instruction Manual 3.5 Using text viewer 3.5.1 Text viewer explained After tapping the ‘Text’ button in the ‘Programs’ menu you will enter the text viewer interface. It consists of the following elements: Tap this button to show file information. Tap this button to edit text viewer settings. -
Page 14: Opening Text Files
Hardware Instruction Manual 3.5.2 Opening text files After tapping the button to open text files ( ), a file exploring screen will appear showing the content of your SD card. Select a text file (TXT) and tap to view the selected file or tap to return to the text viewer. -
Page 15: Opening Photo Files
Hardware Instruction Manual It consists of the following elements: Tap this button to show file information. Tap this button to edit slideshow settings. Tap this button open photo files. Tap this button to exit the photo viewer and return to the ‘Programs’... -
Page 16: With Reference To Environmental Protection
Hardware Instruction Manual Select a photo file (BMP,JPG,PNG or GIF) and tap to view the selected file or tap return to the photo viewer. 4 With reference to environmental protection Packing materials are raw materials and can be used again. Keep packing materials separate.
