- Page 1 GA-H61M-S2P-R3 GA-H61M-S2P User's Manual Rev. 3004 12ME-H61MS2P-3004R...
-
Page 2: Identifying Motherboard Revision
Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission. -
Page 3: Table Of Contents
Table of Contents GA-H61M-S2P-R3/GA-H61M-S2P Motherboard Layout ..........4 GA-H61M-S2P-R3/GA-H61M-S2P Motherboard Block Diagram ........5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. -
Page 4: Ga-H61M-S2P-R3/Ga-H61M-S2P Motherboard Layout

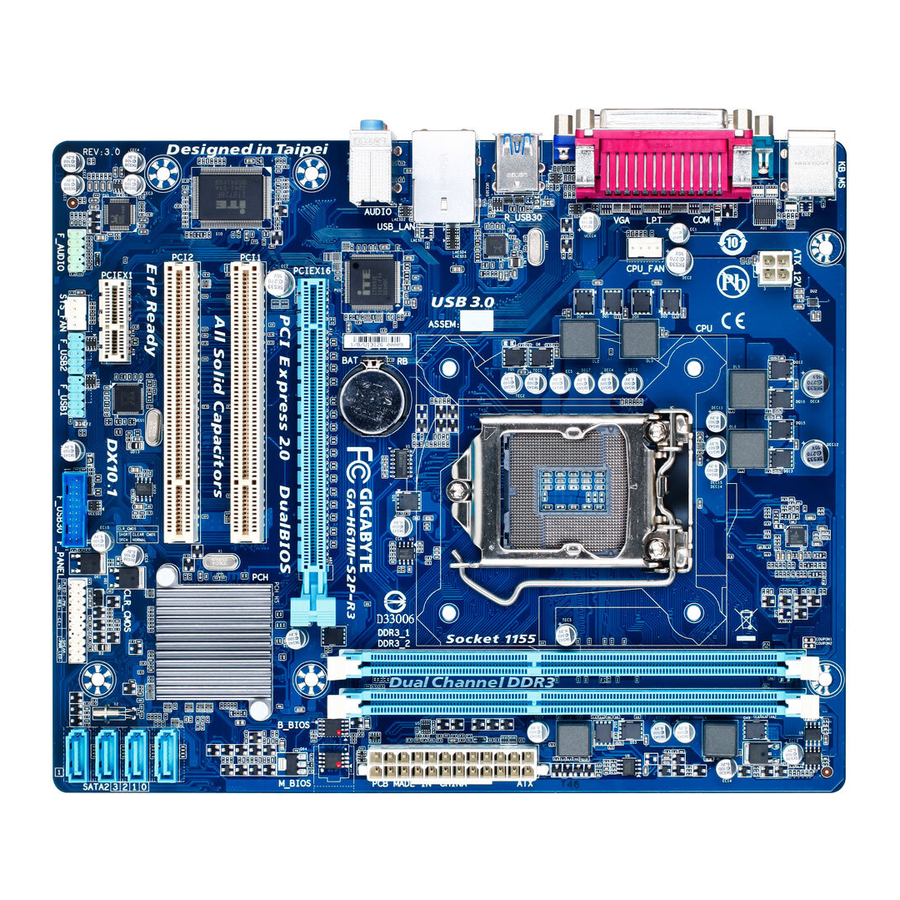

GA-H61M-S2P-R3/GA-H61M-S2P Motherboard Layout KB_MS ATX_12V LGA1155 CPU_FAN R_USB30 Realtek ® GbE LAN USB_LAN GA-H61M-S2P-R3/ PCIe to PCI AUDIO GA-H61M-S2P Bridge PCIEX16 PCI1 Intel ® PCI2 SATA2 CODEC PCIEX1 ® VL805 CLR_CMOS F_USB30 F_USB2 F_AUDIO SYS_FAN F_PANEL F_USB1 Box Contents 5 GA-H61M-S2P-R3/GA-H61M-S2P motherboard... -
Page 5: Ga-H61M-S2P-R3/Ga-H61M-S2P Motherboard Block Diagram
GA-H61M-S2P-R3/GA-H61M-S2P Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1155 DDR3 1333/1066/800 MHz Dual Channel Memory PCIe CLK (100 MHz) PCI Express Bus 4 USB 3.0/2.0 Dual BIOS D-Sub ® 4 SATA 3Gb/s VL805 Intel ® PCI Express Bus 6 USB 2.0/1.1... -
Page 6: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 7: 1-2 Product Specifications
Support for Extreme Memory Profile (XMP) memory modules Š * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU. ® (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor: Š... - Page 8 Micro ATX Form Factor; 24.4cm x 20cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"...
-
Page 9: Installing The Cpu
• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. -
Page 10: Installing An Expansion Card
Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. -
Page 11: Internal Connectors
Line Out Jack (Green) The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration. Mic In Jack (Pink) The default Mic in jack. Microphones must be connected to this jack. To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. -
Page 12: Cpu_Fan/Sys_Fan Fan Headers
1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. -
Page 13: Front Panel Header
DEBUG PORT DEBUG PORT DEBUG PORT 5) SATA2 0/1/2/3 (SATA 3Gb/s Connectors) The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. Pin No. Definition SATA2 6) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. - Page 14 7) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect ® your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
-
Page 15: Chapter 2 Bios Setup
To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system. -
Page 16: M.i.t
Startup Screen The following startup Logo screen will appear when the computer boots. (Sample BIOS Version: E11) Function Keys On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want. •... -
Page 17: Cpu Clock Ratio
` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & Processor Graphics Clock Allows you to set the onboard graphics clock. The adjustable range is from 400 MHz to 3200 MHz. & CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU. - Page 18 & CPU Thermal Monitor (Note 1) Enables or disables Intel CPU Thermal Monitor function, a CPU overheating protection function. When ® enabled, the CPU core frequency and voltage will be reduced when the CPU is overheated. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
-
Page 19: Rank Interleaving
& Rank Interleaving Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different ranks of the memory to increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) ` Channel A/B Timing Settings This sub-menu provides memory timing settings for each channel of memory. -
Page 20: System
& Slope PWM Allows you to control the CPU fan speed. This item is configurable only when CPU Fan Speed Control is set to Manual. Options are: 0.75 PWM value / C ~ 2.50 PWM value / & System Fan Speed Control Allows you to determine whether to enable the system fan speed control function and adjust the fan speed. -
Page 21: Bios Features
& Access Level Displays the current access level depending on the type of password protection used. (If no password is set, the default will display as Administrator.) The Administrator level allows you to make changes to all BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all. ` ATA Port Information This section provides information on the device connected to each SATA port controlled by Intel ®... -
Page 22: Security Option
A password is required for booting the system and for entering the BIOS Setup System program. (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Limit CPUID Maximum (Note) Allows you to determine whether to limit CPUID maximum value. -
Page 23: Network Stack
& Storage Boot Option Control Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. Disables option ROM. Disabled Legacy Only Enables legacy option ROM only. (Default) UEFI Only Enables UEFI option ROM only. Legacy First Enables legacy option ROM first. -
Page 24: Peripherals
Peripherals & SATA Controller(s) Enables or disables the integrated SATA controllers. (Default: Enabled) & SATA Mode Selection Allows you to decide whether to configure the SATA controller integrated in the Chipset to AHCI mode. Configures the SATA controller to IDE mode. (Default) IDE Configures the SATA controllers to AHCI mode. -
Page 25: Parallel Port
& Intel(R) Rapid Start Technology Enables or disables Intel Rapid Start Technology. This item is configurable only when an SSD is installed. ® (Default: Disabled) & Legacy USB Support Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled) & XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support. -
Page 26: Power Management
Power Management & Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: Wake up day: Turn on the system at a specific time on each day or on a specific day in a month. Wake up hour/minute/second: Set the time at which the system will be powered on automatically. -
Page 27: Save & Exit
& AC BACK Determines the state of the system after the return of power from an AC power loss. The system returns to its last known awake state upon the return of the AC power. Memory Always On The system is turned on upon the return of the AC power. Always Off The system stays off upon the return of the AC power. -
Page 28: Chapter 3 Appendix
& Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. & Exit Without Saving Press <Enter>... -
Page 29: Regulatory Statements
Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE. - Page 30 - 30 -...
- Page 31 - 31 -...
-
Page 32: Contact Us
Tech. and Non-Tech. Support (Sales/Marketing) : http://ggts.gigabyte.com.tw WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE Global Service System •...
