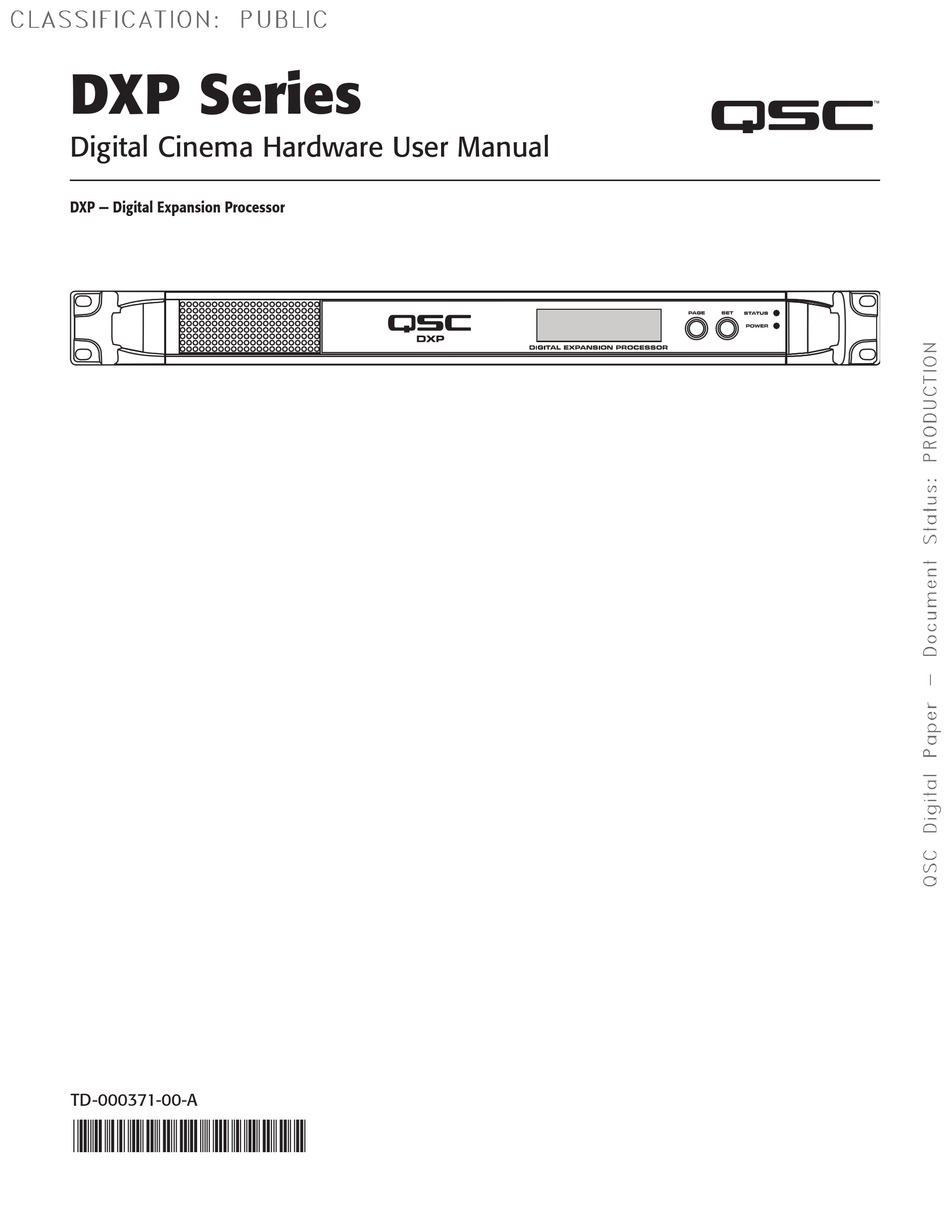

- Page 1 DXP Series Digital Cinema Hardware User Manual DXP — Digital Expansion Processor TD-000371-00-A *TD-000371-00*...
-
Page 2: Explanation Of Symbols
EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. - Page 3 Damage to, or loss of any software or data residing on the product is not covered. When providing repair or replacement service, QSC will use reasonable efforts to reinstall the product’s original software confi...
-
Page 4: Digital Signal Processing
The DXP greatly simplifi es system wiring and setup, signifi cantly reducing installation time and labor cost. Input to the DXP is provided via standard Ethernet hardware via CobraNet from the associated DCP. Digital audio is routed over the network from the DCP to the DXP. The use of QSC's HD-15 DataPort cables to connect the DCA amplifi... - Page 5 — Figure 2 — 1. Analog audio input – Mic/Line 2. DataPort interface for QSC amplifi ers – supports up to 12 single port amplifi ers 3. Relay outputs – mechanically decoupled control outputs (curtain, lighting control etc.) 4. Automation inputs – contact closure inputs (control presets, levels etc.) 5.
-
Page 6: Front Panel User Interface
Initial Boot QSC DXP Status Only Connected and confi gured QSC DXP n (1 or 2) Press PAGE to move to next page. Network name of connected DCP Initial boot Press SET cursor moves under fi rst digit of ID number nn OFFLINE Press SET to cycle numbers 0-9 for the fi... - Page 7 (use a strong box of appropriate size, suffi cient packing/padding material to prevent load shifting or impact damage) or call QSC’s Technical Services Group for replacement packing material and a carton.
-
Page 8: Automation Inputs
— Figure 5 — QSC DataPorts on the DXP rear panel are intended to interface to QSC amplifi ers with v1 DataPorts. These are the all-capable DataPorts, which are included on DCA and PL3 series amplifi ers. All DataPorts use the HD15 connector format and connect to QSC amplifi... -
Page 9: Specifications
Normal, inverted -16 dBu, 10 dBu, 21 dBu, 27 dBu Programmable in 21 µs steps from 0 ms to DataPort outputs HD-15 (x12) — QSC amplifi er interface Band delay 10 ms All amps power on with DXP activation and can... -
Page 10: Telephone Numbers
©2012 QSC Audio Products, LLC. All rights reserved. QSC, the QSC logo, QSControl.net, QSControl, DCP Manager, Digital Cinema Amplifier (DCA), Digital Cinema Processor (DCP) and Intrinsic Correction are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other countries. CobraNet is a trademark of...
