Healthy Climate Solutions HCWH-90 Owner's Manual

READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING
Risk of property damage, injury or death.
Installation, adjustments, alterations, service and
maintenance must be performed by a qualified ser-
vice technician.
WARNING
Electric Shock Hazard.
Can cause injury or death.
Disconnect all remote electrical power supplies be-
fore servicing. Unit may have multiple power sup-
plies.
Unit must be connected to a grounded power sup-
ply in accordance with national and local codes.
Principle of Operation
The purpose of the Healthy Climate
midifier is to keep humidity in the home at acceptable lim-
its, thus reducing the unwanted effects of high humidity.
The dehumidifier gathers data from the HVAC system, or
from the space it is controlling, and measures the condition
of the home air to decide when to run. An integrated air
cycling feature can activate the HVAC blower to cycle air
through the home to balance the indoor conditions. The
dehumidifier can also operate an optional ventilation
damper to bring in outside air.
®
Whole Home Dehu-
Page 1
OWNERS MANUAL

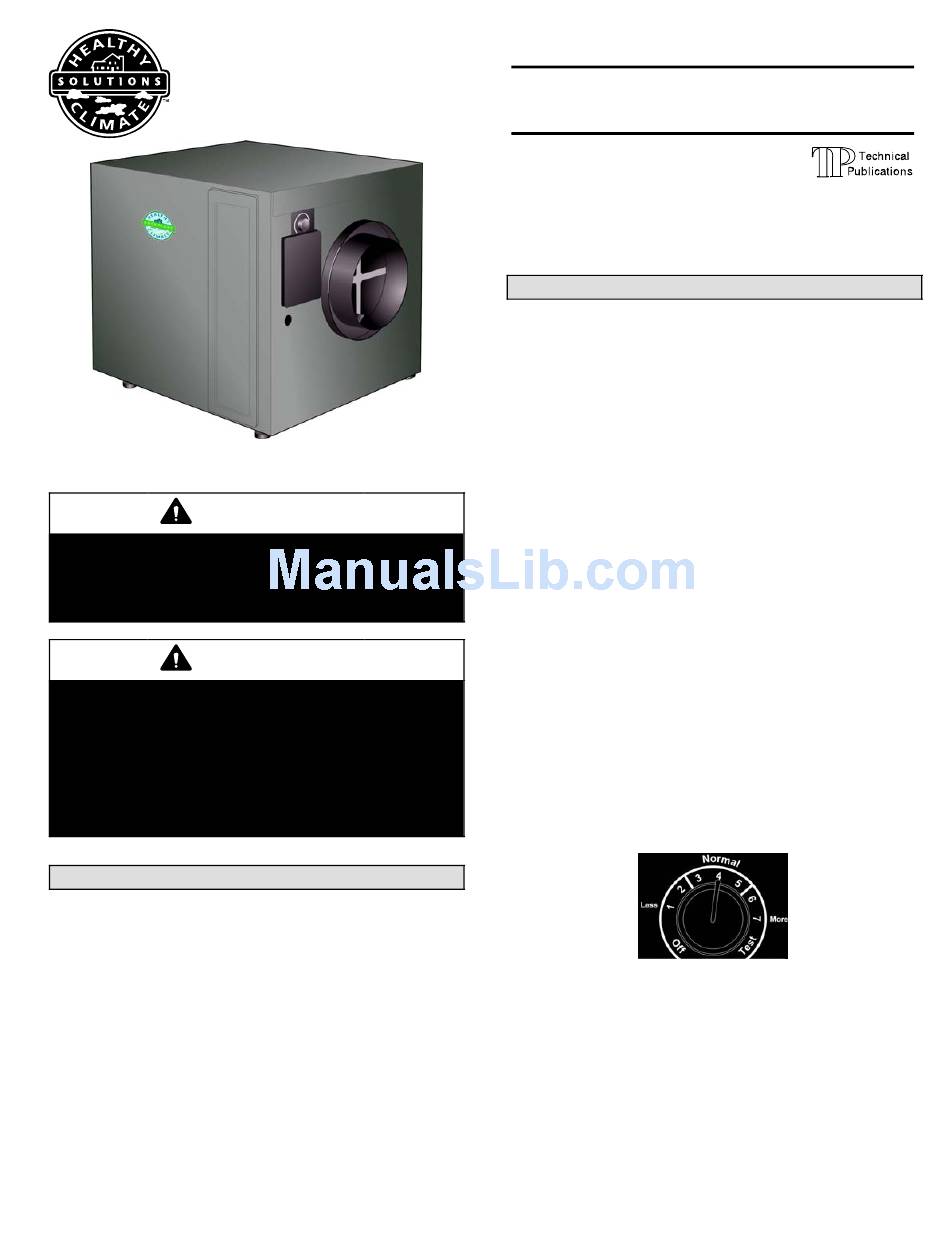

Model HCWH-90 & HCWH-135
Whole Home Dehumidifier
INDOOR AIR QUALITY
506242−01
03/09
Supersedes 02/09
Operating Instruction
The Whole Home Dehumidifier has three adjustable set-
tings: the dryness setting, the air cycle period and the air
cycle time within that period. The dehumidifier dryness can
be set from ˆ1˜ or ˆLESS˜ to ˆ7˜ or ˆMORE˜ based on de-
sired comfort level. Most installations should be initially set
between ˆ3˜ and ˆ5˜ or ˆNORMAL˜ setting; however this
can be adjusted to your individual needs.
Air cycle period is set using the DIP switches, and the po-
tentiometer is used to set the air cycle time which are both
located on the control board under the knob and are set
during installation. If the cycle period is set to 1 hour and
the cycle time potentiometer is set to 20 minutes, you will
get 20 minutes of air cycling every hour. It is important to
understand that the air cycling requirement ˘ 20 minutes
per hour in this example ˘ may be satisfied by a heating,
cooling, or fan call initiated by your thermostat, or if such
calls do not satisfy the air cycling requirement, from a blow-
er call initiated by the dehumidifier itself.
Y2188 Whole Home Dehumidistat (optional)
If your Whole Home Dehumidifier has the optional dehu-
midistat installed, refer to the Whole Home Dehumidistat
Owner's manual for operation information.
Adjusting Dehumidifier Main Control Set Point
Use the main control knob on the outside of the unit to set
the dehumidifier dryness setting. Start with a ˆNORMAL˜
setting for most installations. Moving the knob clockwise to
ˆMORE˜ will make conditions drier. Moving the knob to-
ward ˆLESS˜ allows for higher moisture levels.
