Mapping to VoIP Ports
A p p l i c
A p p l i c

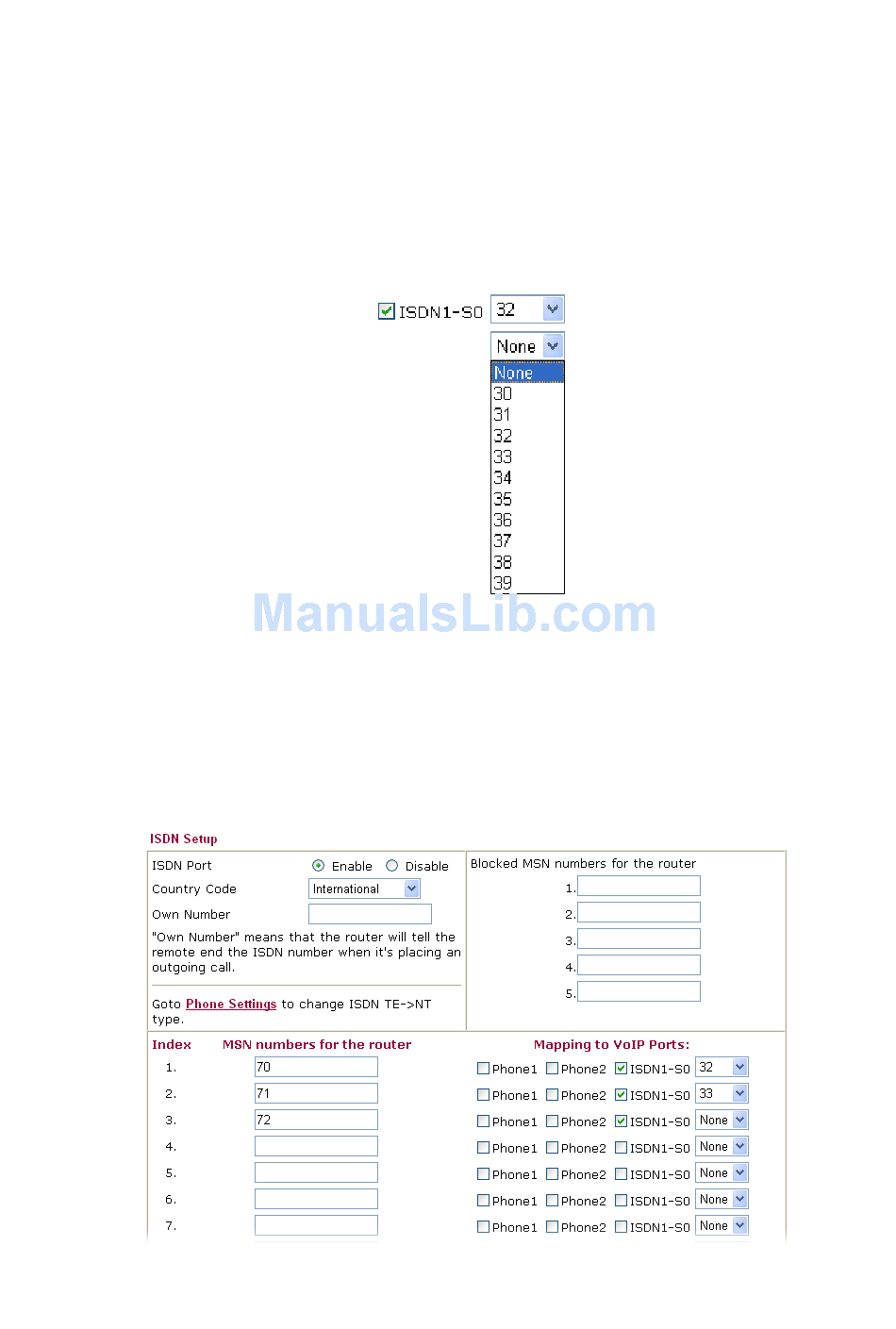

You have set 70, 71, 72 as external MSN numbers for the router and check ISDN-S0 32, 33,
None internal MSN numbers for ISDN1-S0 port.
Open ISDN>> General Setup and set as the following:
136
a t i o n E x a m p l e
a t i o n E x a m p l e
type in 1234567 in the filed of own number. Fill in 50, 17
and 67 on the fields of 1, 2 and 3 one by one without typing
12345.
For loop through phone calls, you can assign Phone 1, Phone
2, ISDN1-S0 as ring ports if incoming calls correspond with
settings on MSN number field.
There are ten internal lines (30-39) under ISDN1-S0 for you
to configure as dedicated line.
phone with one of these 10 different internal MSN
numbers.
If you choose None as ISDN-S0 port, when the router
receives the incoming phone call with certain number for
reaching ISDN-S0, all the phone sets connected to ISDN-S0
will ring at the same time.
You can setup your ISDN
