JL Audio 12W1v3-2 Owner's Manual page 3

SUBWOOFER
Volume
(net int.)
1.10 ft
3
12W1v3-2
31.15 litres
1.10 ft
3
12W1v3-4
31.15 litres
SUBWOOFER
Volume
(net int.)
1.6 ft
3
12W1v3-2
45.3 litres
1.6 ft
3
12W1v3-4
45.3 litres
• The enclosure recommendations listed are external
dimensions which assume the use of 3/4" (19mm)
thick material. If you are using 5/8" (16mm) thick
material, subtract 1/4" (6.5mm) from each dimension.
Do not use any material with a thickness of less than
5/8" (16mm) as this may compromise the rigidity of
the enclosure.
• All enclosure volumes listed are net internal volumes!
Box volume displacement, port displacement and
brace displacement must be added to obtain the final
gross internal volume. All enclosure dimensions listed
have already taken this into account.
• When using two subwoofers in a common
enclosure simply double the required volume and,
in the case of a ported enclosure, use two times the
recommended port(s).
• We recommend the use of this speaker in a
bi-amplified system using high-quality satellite
speakers and amplifiers. We do not recommend
the use of this subwoofer with a passive crossover
(coil), as this type of device will adversely affect
performance.
JL AUDIO 12W1v3-2/12W1v3-4
All specifications are subject to change without notice.

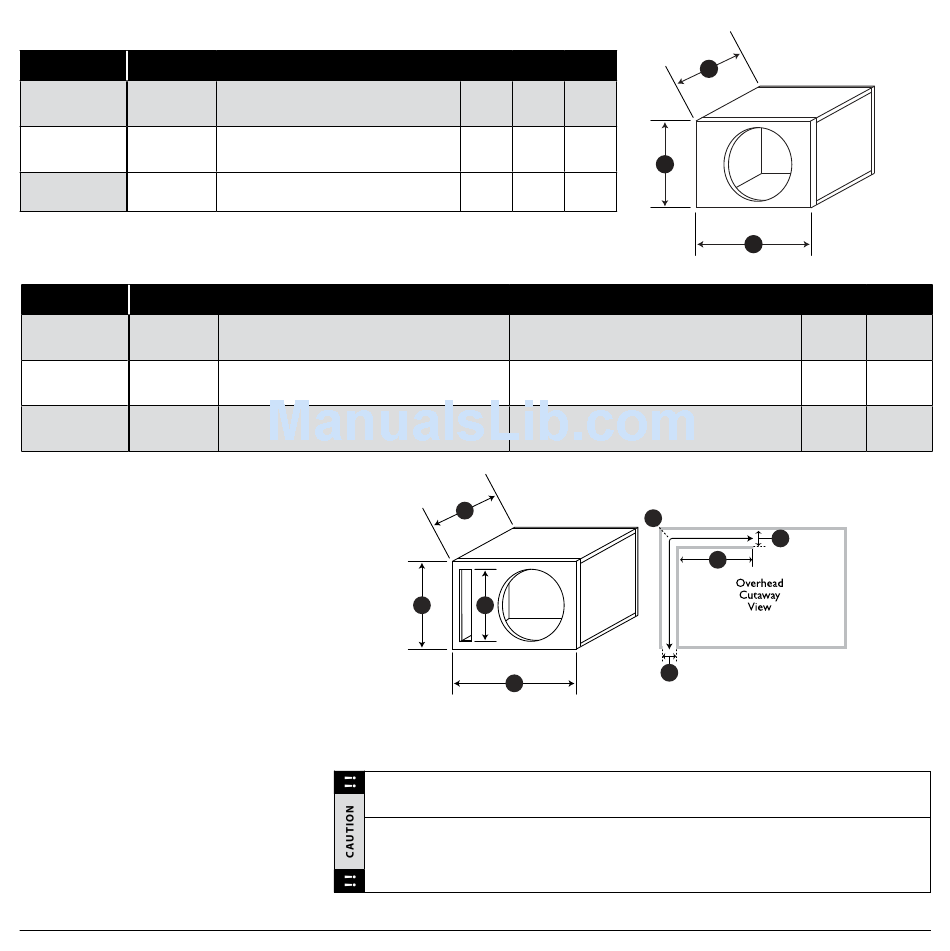

RECOMMENDED SEALED ENCLOSURES
External Dimensions
(Width x Height x Depth)
16 in x 16 in x 11 in
406 mm x 406 mm x 279 mm
16 in x 16 in x 11 in
406 mm x 406 mm x 279 mm
RECOMMENDED PORTED ENCLOSURES
Enclosure External Dimensions
(Width x Height x Depth)
25 in x 15.5 in x 13 in
635 mm x 394 mm x 330 mm
25 in x 15.5 in x 13 in
635 mm x 394 mm x 330 mm
H
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance
speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend
bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers
for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly
important in a hatchback, station wagon, sports utility vehicle, or van.
All specifications are subject to change without notice.
F3 Fc
Qtc
(Hz) (Hz)
38.99 48.39 0.9496
39.63 48.75 0.9338
Slot Port Internal Dimensions
(Slot Width x Slot Height x Slot Length)
1.5 in x 14 in x 30.75 in
38 mm x 356 mm x 781 mm
1.5 in x 14 in x 30.75 in
38 mm x 356 mm x 781 mm
D
SH
W
D
H
W
Tune to:
(Hz)
31.79
31.79
SL
SW
EL
"EL" (Port Extension Length):
SW
12W1v3: 17 in. (432 mm)
F3
(Hz)
31.00
31.41
3
