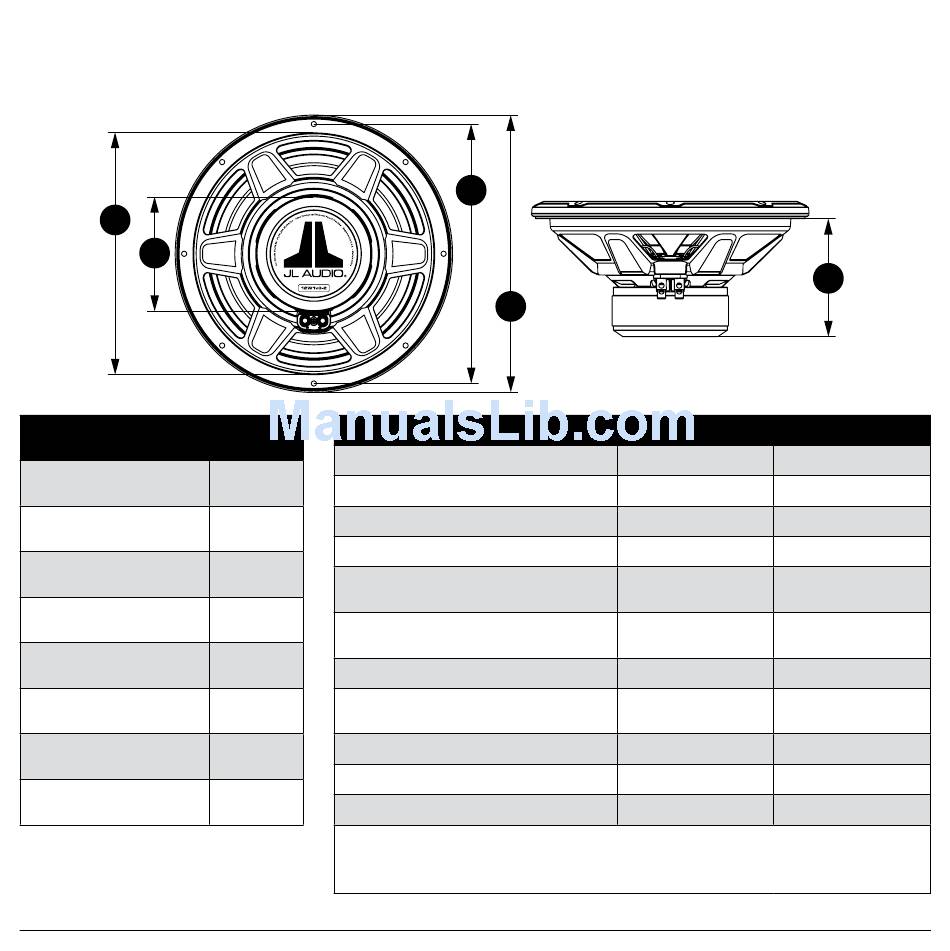

12W1v3 SUBWOOFER PHYSICAL
SPECIFICATIONS
Nominal Diameter:
Overall Diameter (A):
Mounting Hole Diameter (B):
Bolt Hole Circle (C):
Magnet Diameter (D):
Mounting Depth (E):
Net Weight:
Driver Displacement:
2
JL AUDIO 12W1v3-2 / 12W1v3-4
U.S. PATENTS: #5,734,734 #6,501,844 #6,219,431 #D480,709 Other U.S. & Foreign patents pending.
12.0 in
300 mm
12.50 in
318 mm
11.0625 in
281 mm
11.7 in
297 mm
5.25 in
133 mm
5.41 in
137 mm
12.2 lbs
5.5 kg
0.052 ft
3
1.47 liters
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1W/1m) is not an accurate indicator of a subwoofer's output capability and should not be used as a comparison to
other subwoofers to determine which one is "louder" !
All specifications are subject to change without notice.
C
A
SUBWOOFER
Free Air Resonance (Fs):
Electrical "Q" (Qes):
Mechanical "Q" (Qms):
Total Speaker "Q" (Qts):
Equivalent Compliance (Vas):
One-way, Linear Excursion (Xmax)*:
Efficiency (1W/1m)**:
Effective Piston Area (Sd):
DC Resistance (Re):
Nominal Impedance:
Power Handling (continuous):
E
12W1v3-2 12W1v3-4
26.55 Hz 26.21 Hz
0.554 0.535
8.731 8.200
0.521 0.502
2.544 ft 2.706 ft
3
72.04 litres 76.63 litres
0.45 in 0.45 in
11.4 mm 11.4 mm
85.9 dB SPL 86.1 dB SPL
81.426 in 81.426 in
2
0.0525 m 0.0525 m
2
2.210 ohm 3.915 ohm
2 ohm 4 ohm
300W 300W
JL AUDIO 12W1v3-2/12W1v3-4
3
2
2
