SYSTEM 6000 & DAW INTEGRATION
Example 3
Computer running ProTools LE - with DIGI 001
Requirements:
• Mac or PC with Ethernet connection running ProTools LE
• DIGI 001
• Reverb6000 mainframe
• Mac or PC TC Icon software editor for Reverb6000
• RME ADI-8 DD interface
Setup and connections:
1. The TC Icon Mac/PC software editor *) must be installed
on the computer, and Ethernet card IP-address
configuration made, following instructions in the
Reverb6000 manual.
2. Crossed Ethernet cable *) connects Reverb6000 with
computer Ethernet card.
3. Four pairs AES/EBU snake from 25pin D-Sub to XLR's *)
connects Reverb6000 and RME ADI-8 DD interface.
4. ADAT optical cables **) connect RME ADI-8 DD
and DIGI 001 PCI card in computer.
5. MIDI cable connects Reverb6000 MIDI I/O (5-pin DIN
format) and DIGI 001 **)
*) Supplied with Reverb6000
**) NOT supplied with Reverb6000

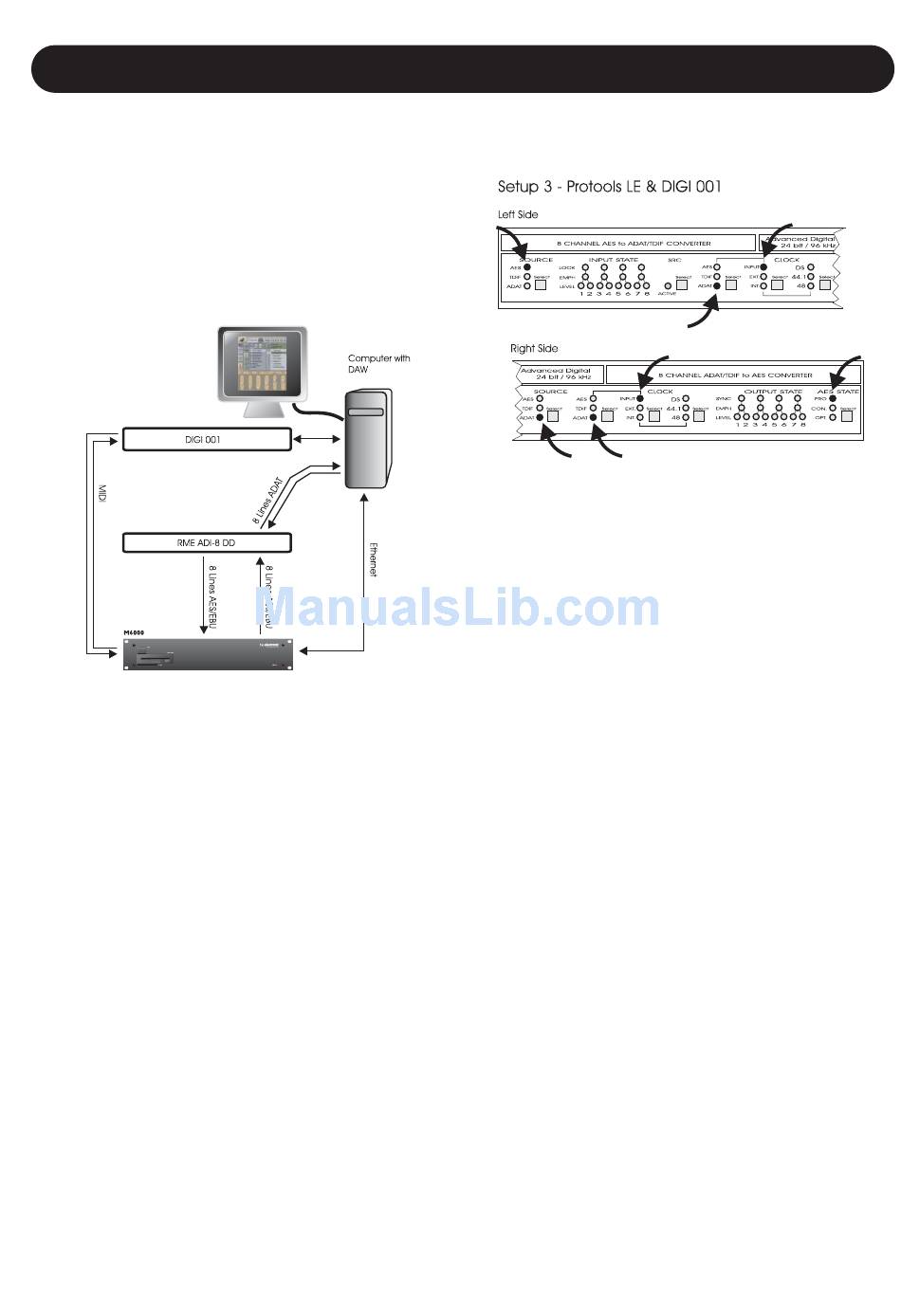

The following illustrates how the RME LEDs should be
lit when correctly setup:
