- Page 1 XPS/XCT Series Transducers Instruction Manual PL-521 August 1998 33455210 Technology based. Customer driven.
-
Page 3: About The Transducer

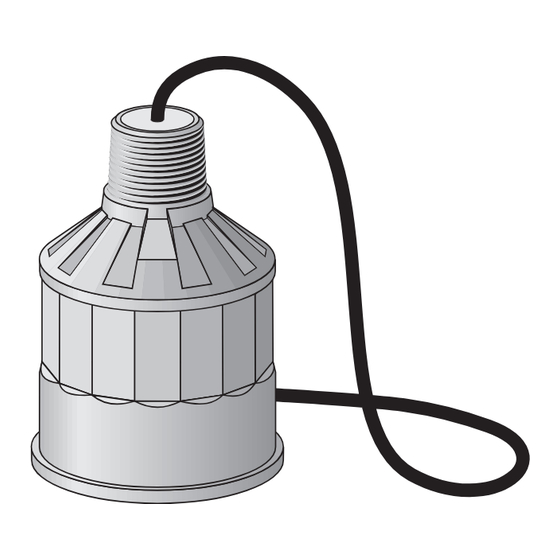

ABOUT THE TRANSDUCER The Echomax XPS / XCT series of transducers transducer operates in association with Milltronics ultrasonic level monitoring products. The transducer converts the electrical energy of the transducer face transmit pulse from the transceiver into acoustical energy. It then converts the acoustical energy of the echo back into electrical energy for the –... -
Page 4: Specifications
CE **, CSA, FM, SIRA/CENELEC * approximate shipping weight of transducer with standard cable length EMC performance available upon request ® Kynar is registered trade mark of ELF Atochem PL-521 1998/11/17... -
Page 5: Outline And Dimensions
138 mm (5.4") 124 mm (4.9") 158 mm (6.2") n / a n / a n / a n / a 152 mm (6.0") 198 mm (7.8") n / a n / a n / a n / a * nominal PL-521... -
Page 6: Do's And Don'ts
On liquid applications, the transducer must be mounted so that the axis of transmission is perpendicular to the liquid surface. On solids applications, a Milltronics Easy Aimer should be used to facilitate aiming of the transducer. Do not overtighten mounting . Hand tightening of the mounting hardware is sufficient. -
Page 7: Mounting - Liquid Applications
Plywood Submersible rigid metal conduit coupling safety chain submergence shield Submersible transducer, used in Plywood mounting provides excellent applications where flooding is possible. isolation, but must be rigid enough to avoid flexing if subjected to loading. PL-521... - Page 8 Flange, gasket and hardware supplied by customer. Refer to Liquid \ Applications - Standpipes. Flanged coupling factory flanged transducer bolt gasket customer flange, flat face only Customer flanged standpipe. If a metal flange must be welded to pipe, refer to Liquid \ Applications - Standpipes. PL-521...
- Page 9 INTERCONNECTION Milltronics transceiver ( typical ) Direct Connection drain / shield 2 Wire Extension junction box drain / shield extend cable using 18 AWG shielded / twisted pair Coaxial Extension extend cable using RG - 62 A/U coax for optimum noise immunity...
- Page 10 For optimum isolation against electrical noise, run cable separately in a grounded metal conduit. Seal all thread connections to prevent ingress of moisture. Do not run cable near high voltage or current runs, contactors and SCR control drives. PL-521 97/03/20...
- Page 11 TS-3 * transducer standpipe bracing standpipe inlet primary element stilling well stilling well inlet Refer to Liquid \ Applications - Standpipes. the use of a TS-3 temperature sensor provides better temperature tracking in applications where the temperature can change quickly. PL-521...
- Page 12 The shield acts as a bell to create an air pocket in front of the transducer face. The associated transceiver interprets this as a flooding condition, and reacts accordingly. Refer to transceiver manual for programming requirements. transducer submergence shield air pocket refer to associated instruction manual for assembly details. on applicable models. PL-521...
- Page 13 LIQUID APPLICATIONS - STANDPIPES In many applications access must be made via a standpipe. In such cases, Milltronics can provide factory bonded flanged transducers or split flange kit that will readily mate to the flanged standpipe. Another option is to hang the transducer from a blind flange.
- Page 14 If standpipe is used, refer to Liquid / Applications - Standpipes. 3. Echo has missed improperly leveled transducer. 4. When performing an empty or full calibration, the tank must contain its normal vapour and be at its normal temperature. PL-521...
- Page 15 LIQUID APPLICATIONS - WATER / WASTEWATER DIFFERENTIAL LEVEL PUMP CONTROL SEWAGE LIFT PL-521...
- Page 16 2. Avoid intersecting bin wall seams, structural members and wall irregularities. Otherwise, transducer minimal angle of repose discharge 5. On dual discharge bins, aim each 4. On fluid like solids, aim transducer at the discharge point. transducer perpendicular to material surface. PL-521...
- Page 17 2. Where agitators are in use, use the Agitator Discrimination parameter on transceivers where available. 3. Transducer should be aimed away from wall projections. DRYER - WOOD CHIPS infeed drag conveyor typical low level typical high level 1. Transducer should be mounted perpendicular to slope of wood chips. PL-521...
