PIAGGIO 633823 Service Station Manual page 73

MP3 250 i.e.

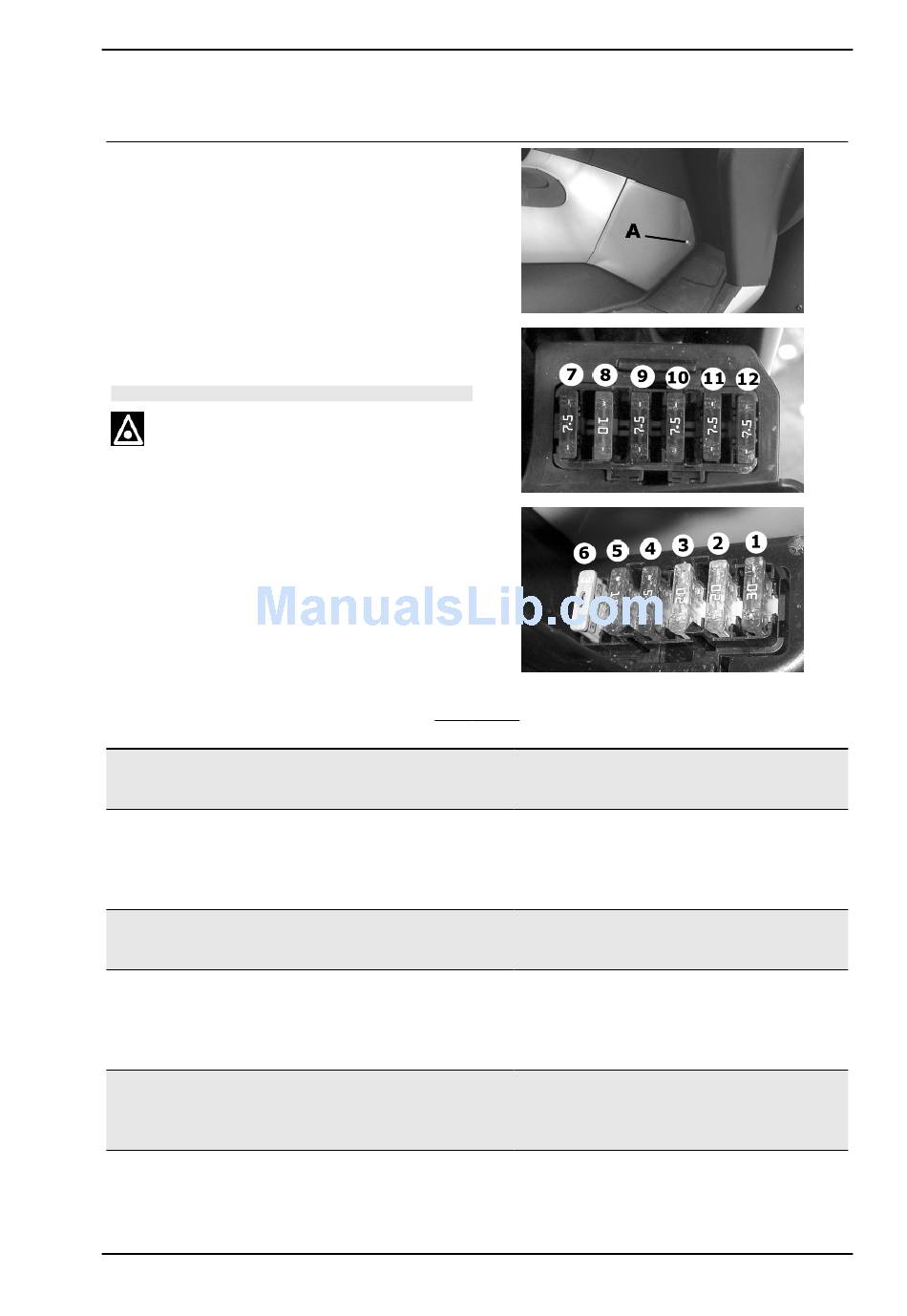

Fuses
The electrical system has twelve fuses divided in
two fuse boxes to protect the different installation
circuits. One of them is inside the battery compart-
ment and the other is at the right internal side of
the footrest. To be able to reach, loosen the screw
"A" and remove the plastic cover. The chart shows
the position and characteristics of the fuses in the
vehicle.
CAUTION
BEFORE REPLACING THE BLOWN FUSE,
FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO RE-
PLACE THE FUSE WITH ANY OTHER MATERI-
AL (E.G., A PIECE OF ELECTRIC WIRE).
1
2
3 Fuse No. 3 (if present)
4
5
6
F
USE TABLE
Specification
Fuse No. 1
Fuse No. 2
Fuse No. 4
Fuse No. 5
Fuse No. 6
Desc./Quantity
Capacity: 30A
Protected circuits:Voltage regulator
Location:battery compartment
Capacity: 20A
Protected circuits:battery-powered fuse
No. 7, live fuses No. 8 - No. 9 - No.10 - No.
11
Location:battery compartment
Capacity: 20A
Protected circuits:parking control ECU
Location:battery compartment
Capacity: 15 A
Protected circuits:Battery-powered saddle
opening switch, glove-box lighting, headlight,
emergency turn indicator
Location:battery compartment
Capacity: 15 A
Protected circuits:Battery-powered injec-
tion loads, electrical fan
Location:battery compartment
Capacity: 3A
Protected circuits:Battery-powered injec-
tion control unit
Location:battery compartment
Electrical system
ELE SYS - 23
