Ritron DTX-Ls Series Specifications

Features/Benefits:
All electronic tuning
• (no mechanical adjustments)
Same mechanical footprint and electrical
•
interface as the current DTX-Ls
(allows drop-in backwards compatibility)
Available in 2 to 8 Watt UHF Models and
•
2 to 5 Watt VHF
Supports voice or data applications
•
Supports sub-audible signaling CTCSS or
•
Digital Coded Squelch
PC programmable via a Windows-based
•
PC programmer
All components placed on the top side of
•
a single PCB for mechanical rigidity and
increased protection against damage
Solid internal ground plane for enhanced
•
EMI shielding
Surface acoustic wave (SAW) filter front-end
•
for no-drift, adjustment-free filtering of
interfering signals (DTX-445)
Monolithic Gilbert cell mixer with internal
•
negative feedback for improved RF
intermodulation performance
Ritron exclusive flex-divider PLL
•
synthesizer allows for a wide loop
bandwidth for fast transmit and receive
attack times and minimal microphonics
Audiophile-grade polypropylene capacitors
•
in the PLL loop filter for further reduced
microphonic susceptibility
Plus These Established DTX Ls Features:
Low standby current drain facilitates long
•
battery life in battery powered applications
High receiver sensitivity
•
Single board design for high reliability
•
Ritron's made in the USA design,
•
manufacturing, and service expertise
FCC Narrow Band Compliant and
•
Industry Canada approved module
(board only or with enclosure), allows for
easier integration into OEM applications
without regulatory concerns
Various connector/module options allow for
•
flexibility in OEM integration

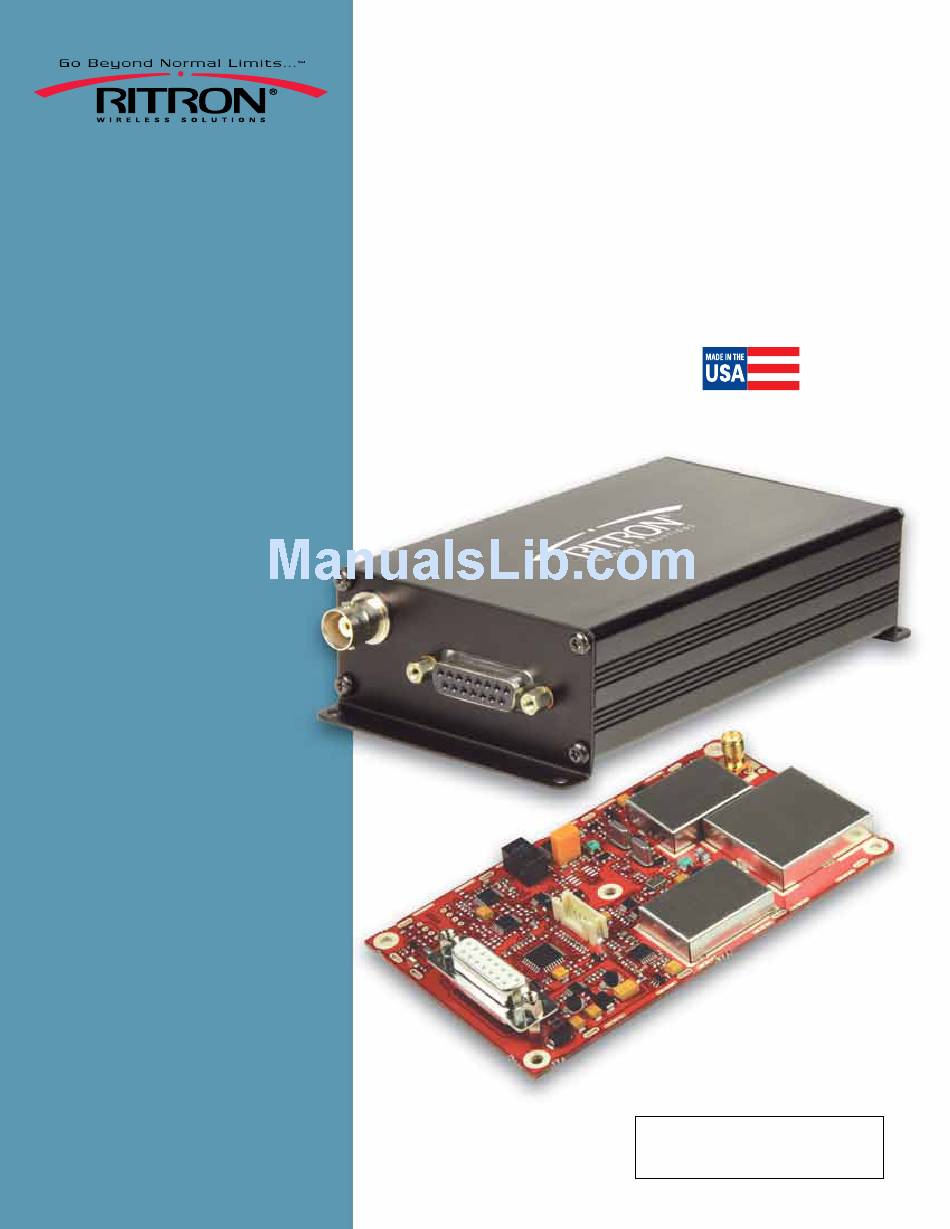

New – Next Generation
DTX-Ls Series Transceiver
A new embedded RF platform with enhanced performance and reliability.
-
Ideal For OEM and Other Integrated Applications
-
Narrow Band Compliant
DTX-445 and DTX-145
FCC Certified RF Transceivers
(with enclosure or as board only)
