ARB Fridge Freezer User Manual

ARB Fridge Freezer User Manual

47l fridge freezer

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fridge Freezer and is the answer not in the manual?

Questions and answers

Phil
February 3, 2025

The fridge is freezing water and not reducing temp

1 comments:
Mr. Anderson
February 10, 2025

The ARB fridge freezer may be freezing water instead of just reducing the temperature due to the target cabinet temperature being set too low. If the target temperature is near or below freezing (0°C or 32°F), water inside the fridge freezer will freeze. To prevent this, check and adjust the target cabinet temperature by turning the fridge freezer on, pressing the button to display the current target temperature, and increasing it as needed. Additionally, note that the temperature at the center of the cabinet may differ from other areas, which could contribute to localized freezing.

This answer is automatically generated

Краснобаев Георгий Александрович
April 23, 2025

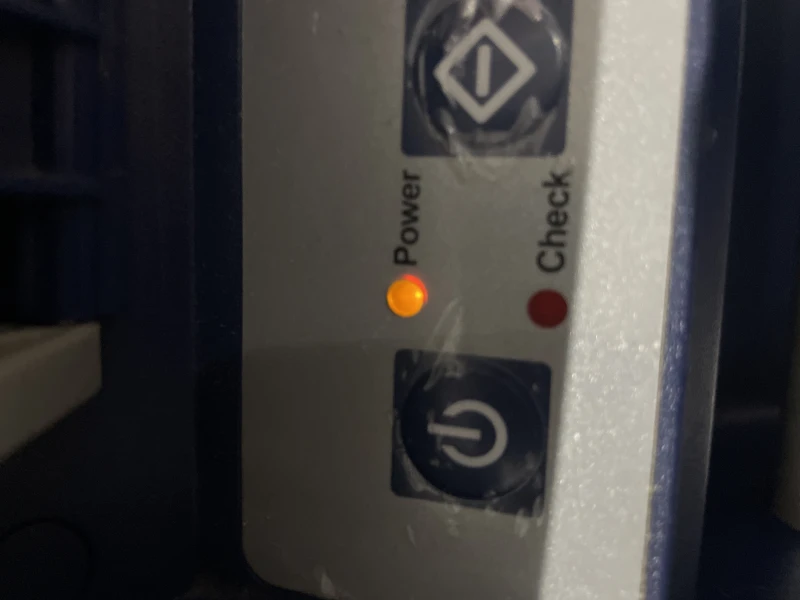

Что делать чтобы индикатор стал зеленым?

User image 68092e233a183

Subscribe to Our Youtube Channel

Summary of Contents for ARB Fridge Freezer

  • Page 2 Your ARB Fridge Freezer is designed to operate on a 12V DC or 24V DC supply from a vehicle, boat or caravan. It can also be operated from a 100-240V AC mains supply using the inbuilt power inverter.
  • Page 3: Safety Instructions

    3 SAFETY INSTRUCTIONS General safety For the safety of all people who will use your fridge freezer, ARB recommends that you take note of the following general safety points. Always apply the correct voltage to the fridge freezer with the correct polarity.
  • Page 4 4 INTRODUCTION TO YOUR ARB FRIDGE FREEZER The key components of your ARB Fridge Freezer are identified below in Figures 1 to 4. Figure 1 – Front of fridge Figure 2 – Rear of fridge Figure 3 – Interior cabinet 1.
  • Page 5: General Installation

    G. Temperature Down Button The power LED i g een when the compres or is running. The power LED is orange when the compressor i not running (eg. when the fridge freezer has reached its target temperatu e). 5 INSTALLATION...
  • Page 6: Temporary Mounting

    5.2.1 Permanent mounting Your ARB Fridge Freezer has four threaded inserts in its base that can be used to permanently mount the cabinet to a solid base or fridge slide. One threaded insert is located in the centre of each of the rubber feet. ARB recommends this method of mounting if the fridge freezer is to be permanently mounted.
  • Page 7 Figure 5a Base of fridge freezer Mounting surface Drain plug Front of A = Thickness of mounting surface fridge freezer Dimensions in mm Figure 5b Hex key Figure 5c Mounting surface Rubber mounting foot of thickness ‘A’ mm Mounting bolt...
  • Page 8: Operation

    Lift the latch up and away from the body of the fridge freezer. The latch will pull away from the fridge freezer in an arc as shown. Release the latch once it is clear of the fridge freezer lid. The latch will come to rest clear of the lid as shown in Figure 6b.
  • Page 9 Figure 6a Figure 6a Figure 6b Figure 6b Figure 6c Figure 6c Figure 6d Figure 6d Figure 6e Figure 6e...
  • Page 10 6.4.1 Connecting to 12/24V DC Your ARB Fridge Freezer can be operated on either 12V or 24V DC. Your fridge freezer is fitted with a control circuit to prevent polarity reversal and possible short-circuiting when the unit is connected to a battery.
  • Page 11 Position the socket high in the vehicle to prevent it from becoming wet should the vehicle ingest water. NOTE – If the plug is removed and the fridge freezer is hard wired into a 12V or 24V DC circuit, a 15 Amp inline fuse must be included in the circuit.
  • Page 12 Your ARB Fridge Freezer can be operated on an AC voltage of 100 – 240V. The fridge freezer has a priority circuit which gives priority to mains AC power over DC power. If the fridge freezer is connected to both AC and DC power, the unit will run on the AC supply.
  • Page 13: Cable Clips

    Cable clips Your ARB Fridge Freezer has clips on the rear panel of the unit to retain both the 12/24V DC and 100-240V AC cables. The cable clips are correctly sized for the power cables supplied with your fridge freezer. The left hand cable clip shown in Figure 10a is for the 100-240V AC cable.
  • Page 14: Lid Removal

    The lid on your ARB Fridge Freezer can be quickly and easily removed and refitted. To remove the fridge freezer lid: Open the lid so that the internal ridge of the lid is clear of the fridge freezer cabinet as shown in Figure 11a. The procedure for opening the fridge freezer lid is described in section 6.3.
  • Page 15: Turning On/Off

    Press and hold for between two and three seconds. When the fridge freezer is off, the power LED and the display will go blank. Setting the target cabinet temperature To set the target cabinet temperature of your ARB Fridge Freezer: Turn the fridge freezer on.
  • Page 16: Using Battery Monitor

    6.11 Using the battery monitor Your ARB Fridge Freezer is fitted with a battery monitor to control the level of discharge of your battery. The battery monitor has three setting; HIGH, MEDIUM and LOW. When set to HIGH, the battery monitor will provide maximum protection for the battery against excessive discharging.
  • Page 17: Making Use Of Basket

    Figure 12a. This allows long items to be laid across the top section of the fridge freezer cabinet. The basket can be repositioned so that the high side of the basket is in the centre of the cabinet as shown in Figure 12b.
  • Page 18: Drain Plug

    6.14 Drain plug Your ARB Fridge Freezer has a removable drain plug in the base of the cabinet as shown in Figure 14. The drain plug can be removed to drain liquid from the cabinet of the fridge freezer.
  • Page 19 6.15 Defrosting your fridge freezer From time to time, ice may form on the inside of your ARB Fridge Freezer. This can reduce both its internal capacity and its thermal efficiency. ARB recommends that you defrost your fridge freezer on a regular basis.
  • Page 20: Replacing The Plug Fuse (12/24V)

    6.17 Replacing the plug fuse (12/24V) Your fridge freezer is equipped with a fuse that is located in the 12/24V Dc plug. CAUTION – Disconnect the fridge freezer from all power sources before replacing the plug fuse. To replace the plug fuse: If fitted, remove the plastic adaptor collar from the end of the plug as shown in Figures 16a and 16b.
  • Page 21: Replacing The Light Bulb

    6.18 Replacing the light bulb Your fridge freezer is equipped with a long life and low current draw LED light bulb. Under typical operating conditions this bulb should not require replacement. In the unlikely event that you need to replace the light bulb, please follow the procedure outlined below.
  • Page 22: Cleaning And Maintenance

    7 CLEANING AND MAINTENANCE To clean the inside or outside of the fridge freezer, use a damp cloth and warm water containing a mild non-abrasive household detergent. If your fridge freezer is operated in dusty conditions, ARB recommends that you clean the outside surfaces on a regular basis to prevent the build up of dirt and grit.
  • Page 23: Technical Data

    10 TECHNICAL DATA Overall capacity 47 Litre (49.7 quarts) Connection voltage (except North America) 12/24 V DC and 100-240 V AC Connection voltage North America 12/24 V DC and 120V AC ~ 60Hz Rated current - 12 VDC 7.0 A - 24 VDC 3.0 A - 100-240 VAC...
  • Page 24: Troubleshooting

    The fridge freezer is operating correctly. No action is required. 3. The fridge freezer has stopped opera ing. The power LED is OFF and the RED error LED is flashing. The internal battery protection system has caused the fridge freezer to switch off because the battery voltage is low.
  • Page 25 6.11. The voltage must be read at the fridge freezer plug as there is normally at least one to two volts lost between the power source (battery) and the fridge freezer plug.
