Summary of Contents for TC Electronic Spark
-
Page 2: Table Of Contents

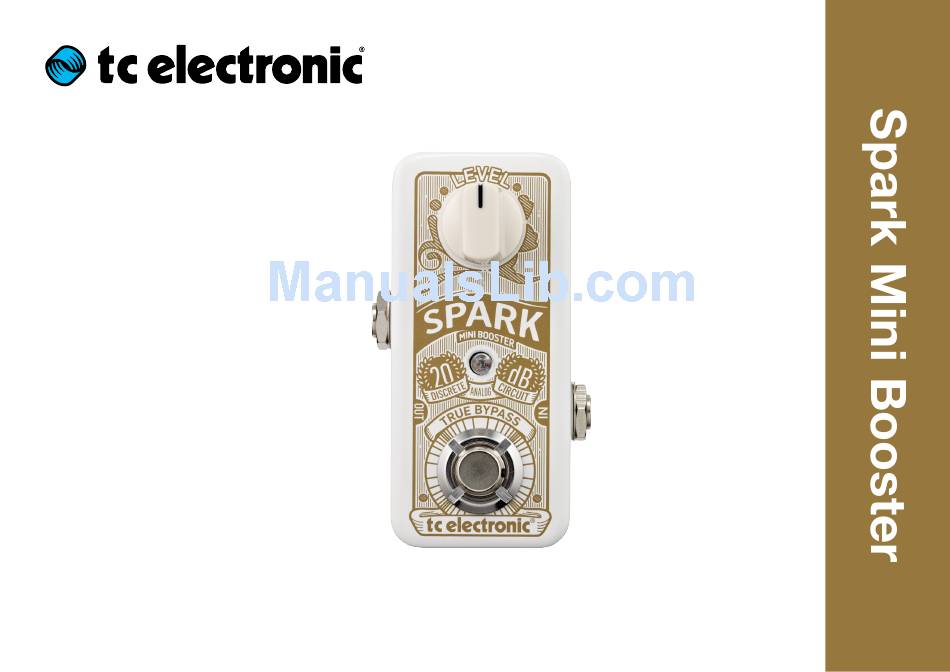

Spark Mini Booster English Manual Version 2.1 Table of contents Important Safety Instructions EMC / EMI About this manual Introduction Setup Inputs, output, controls 1. Power input 2. Audio input 3. Audio output 4. Level knob 5. Footswitch Working with a booster: setup examples... -
Page 3: Spark Mini Booster English Manual Version 2.1
10) Protect the power cord from being walked on or pinched particularly at plugs, conve- nience receptacles, and the point where they exit from the apparatus. Spark Mini Booster English Manual Version 2.1... -
Page 4: Emc / Emi
– Connect the equipment into an outlet on a cir- cuit different from that to which the receiver is connected. – Consult the dealer or an experienced ra- dio / TV technician for help. Spark Mini Booster English Manual Version 2.1... -
Page 5: About This Manual
Of course, you can print this manual, but we en- courage you to use the PDF version, which has both internal and external hyperlinks. For exam- ple, clicking the TC Electronic logo in the upper left corner of each page will take you to the table of contents. -
Page 6: Introduction
“always-on” and “emphasizing passages” situ- ations. The possibilities with Spark Mini Booster are vir- tually endless: – Leave it on all the time, – punch it in from time to time when you need a volume boost –... -
Page 7: Setup
Play! following items: – Connect a 9 V power supply with the following – 1 Spark Mini Booster pedal symbol to the DC input socket of Spark Mini – 2 rubber feet for “non-velcro” pedalboard Booster. mounting – 1 TC Electronic sticker –... -
Page 8: Inputs, Output, Controls
This is a standard 5.5 / 2.1 mm DC plug (centre = Use this knob to control the level change when negative). To power up Spark Mini Booster, con- the booster is enabled. nect a power supply to its power input socket. -
Page 9: Working With A Booster: Setup Examples
If you use pedals for your distortion sounds, then you set up Spark Mini Booster this way, you can 2. Punch it in from time to time when you need a you will want to place your Spark Mini Booster use it to lift the volume of your clean sound when gain boost. -
Page 10: Setup Examples
Setup examples Setup examples Using Spark Mini Booster as a volume booster Modulation, delay & reverb pedals Drive Input pedals Spark Mini Booster English Manual Version 2.1... - Page 11 Setup examples Using Spark Mini Booster as a gain booster Modulation, delay & Drive reverb pedals pedals Input Spark Mini Booster English Manual Version 2.1...
- Page 12 Setup examples Using Spark Mini Booster in an FX loop Drive Pedals FX Loop Send ► Modulation, delay & reverb pedals Input ▼ ◄ FX Loop Return Combo Spark Mini Booster English Manual Version 2.1...
-
Page 13: The Sound Of Silence: True Bypass
“Is Spark Mini Booster analog or digital?” high-end. The entire signal path of Spark Mini Booster is 100 % analog. “Should I place my Spark Booster in front of the amp, or is it better to run it in the amp’s FX loop?”... -
Page 14: Technical Specifications
Holding down the footswitch for more than one second will activate PrimeTime for boos- ting essential passages. The boost will disen- gage when you release the footswitch. – Input Impedance: 1 MΩ – Output Impedance: 100 Ω Spark Mini Booster English Manual Version 2.1...
