Sunn 412 Specifications

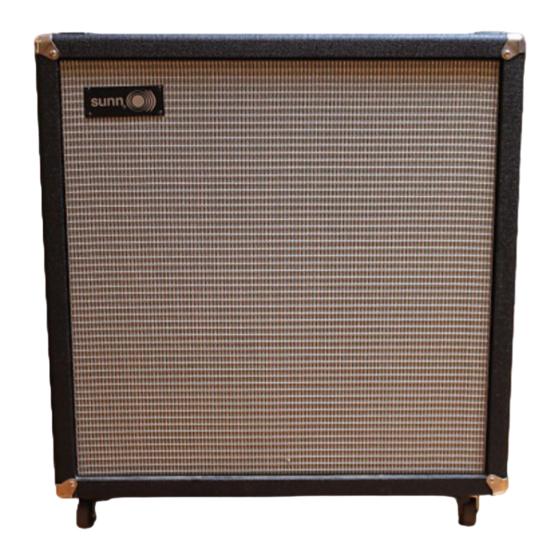

THE SUNN ® 412 LOUDSPEAKER ENCLOSURE
Your new Sunn 412 Loudspeaker Enclosure is constructed from 5/8"
(1.6 cm) 11-ply Birch Plywood and is capable of handling up to 300 Watts of
powerful clean sound. The Sunn 412 features four 12" (30.5cm) speakers
with 54 oz (1.53 kg) magnets and is designed for use with the Sunn Model T
or any other professional quality instrument amplifier. In order to more fully
understand the operational characteristics of your Sunn 412 loudspeaker
enclosure, please read through all instructions and heed all caution and safety
warnings on both your amplifier and Sunn 412 loudspeaker enclosure.

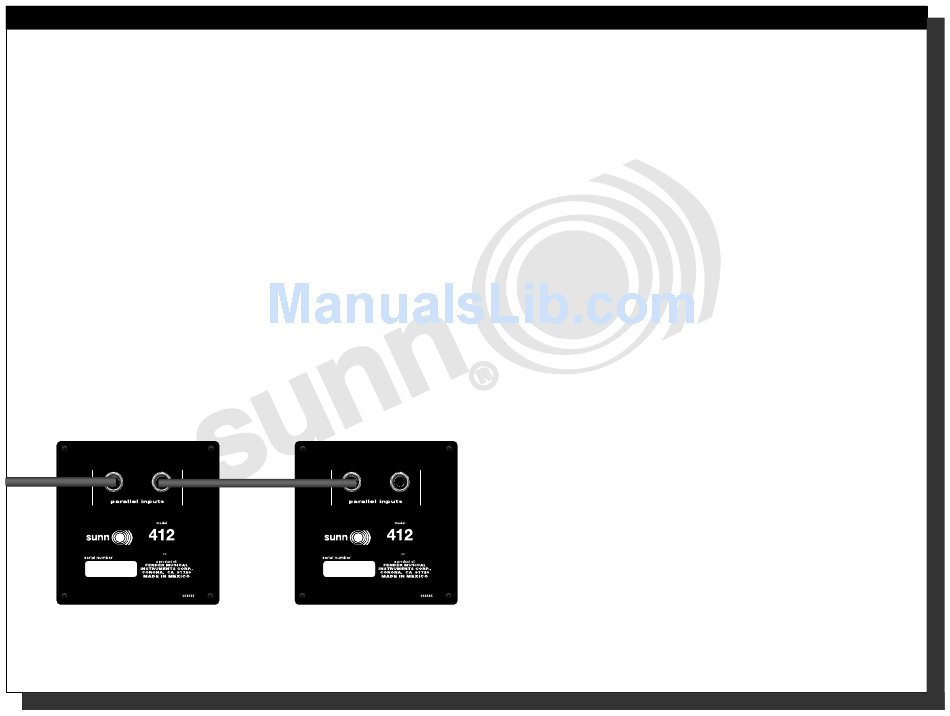

CONNECTING MULTIPLE
ENCLOSURES
Because the Sunn 412 Loudspeaker Enclosure's jacks are wired in
parallel, multiple 412 cabinets can be "daisy chained" together providing
additional output for larger venues. To do so, simply connect them by inserting
a speaker cable (16 gauge or larger) with a 1/4" plug into the input jacks on
the rear panel of each cabinet. Note: If using a tube amplifier, your tube amp
could fall into protect mode or even be damaged by using an improper
impedance load. Therefore, it is important to heed all caution and safety
warnings on both your amplifier and Sunn 412 loudspeaker enclosure.
From
AMP
R
power rating
300W
impedance
16
P/N 053984 REV A
412 LOUDSPEAKER
R
power rating
300W
impedance
16
SPECIFICATIONS
PART NUMBER 021-1675-000
DRIVERS Four 12 " (30.5 cm) Steel Frame Drivers
1 3/4" (4.5 cm) voice coils
54 ounce (1.53 kg) magnets
CABINET 5/8 " (1.6 cm) 11-ply Birch Plywood
SENSITIVITY 96 dB, 1 Watt - 1 Meter
POWER HANDLING 300 Watts
IMPEDANCE 16Ω
CONNECTIONS Dual, Parallel Wired, 1/4" High Current Input Jacks
ENCLOSURE VOLUME V
DIMENSIONS
Height: 30 in.
Width: 30 in.
Depth: 15 in.
WEIGHT 99 lbs. (45.0 kg)
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.
CORONA, CA 91720 USA
= 5.2 ft 3 (147 l)
B
(76.2 cm)
(76.2 cm)
(38.1 cm)
