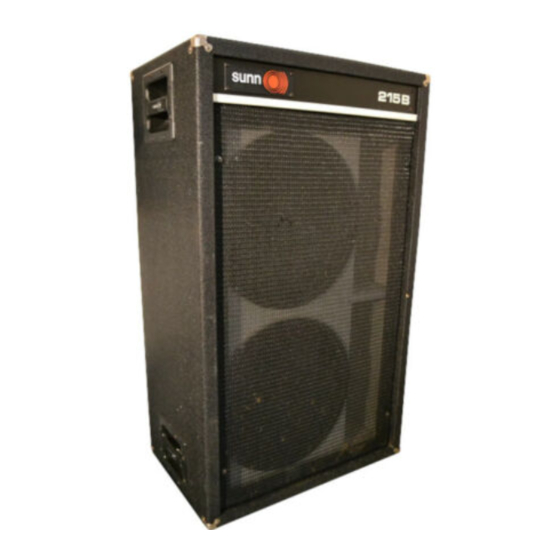

THE SUNN
®
215 BASS SPEAKER ENCLOSURE
Your new Sunn 215 Bass speaker enclosure is constructed from 3/4"
(1.9 cm) 7-ply Birch Maple Plywood and is capable of handling up to 300
Watts of powerful clean sound. The Sunn 215 features two 15" (38.1cm)
speakers with 56 oz (1.6 kg) magnets and is designed for use with the Sunn
1200S, the Sunn 300T or any other professional quality bass amplifier. In
order to more fully understand the operational characteristics of your Sunn
215 Bass speaker enclosure, please read through all instructions and heed
all caution and safety warnings on both your amplifier and Sunn 215 Bass
speaker enclosure.
CONNECTING MULTIPLE 215 BASS SPEAKER ENCLOSURES
Because the Sunn 215 Bass Speaker Enclosure's jacks are wired in
parallel, multiple 215 cabinets can be "daisy chained" together providing
additional output for larger venues.
inserting a speaker cable (16 gauge or larger) with a 1/4" plug into the input
jacks on the rear panel of each cabinet. Note: If using a tube amplifier, your
tube amp could fall into protect mode or even be damaged by using an
improper impedance load. Therefore, it is important to heed all caution and
safety warnings on both your amplifier and Sunn 215 Bass speaker enclosure.
From
AMP
R
power rating
300W
impedance
8
051347
P/N 051959
To do so, simply connect them by
R
power rating
300W
impedance
8
SPECIFICATIONS
PART NUMBER
DRIVERS
CABINET
SENSITIVITY
POWER HANDLING
IMPEDANCE
CONNECTIONS
ENCLOSURE VOLUME
DIMENSIONS
Height:
Width:
Depth:
WEIGHT
051347
FENDER MUSICAL INSTRUMENTS CORP.
021-1674-000
Two 15 " (38.1 cm) Steel Frame Woofers
2.5" (6.4 cm) voice coils
56 ounce (1.6 kg) magnets
3/4 " (1.9 cm) 7-ply Birch Maple Plywood
96 dB, 1 Watt - 1 Meter
300 Watts
8Ω
Dual, Parallel Wired, 1/4" High Current Input Jacks
V
= 7.3 ft
3
(2.66 m
3
)
B
41"
(104 cm)
25.5"
(65 cm)
17"
(43.2 cm)
93 lbs. (42.2 kg)
A PRODUCT OF:
CORONA, CA 91720 USA
