Version 1.0
2014
Order Code: MITKIT-LITE
Digital, Reliable Transmission, up to 1.2Km!*

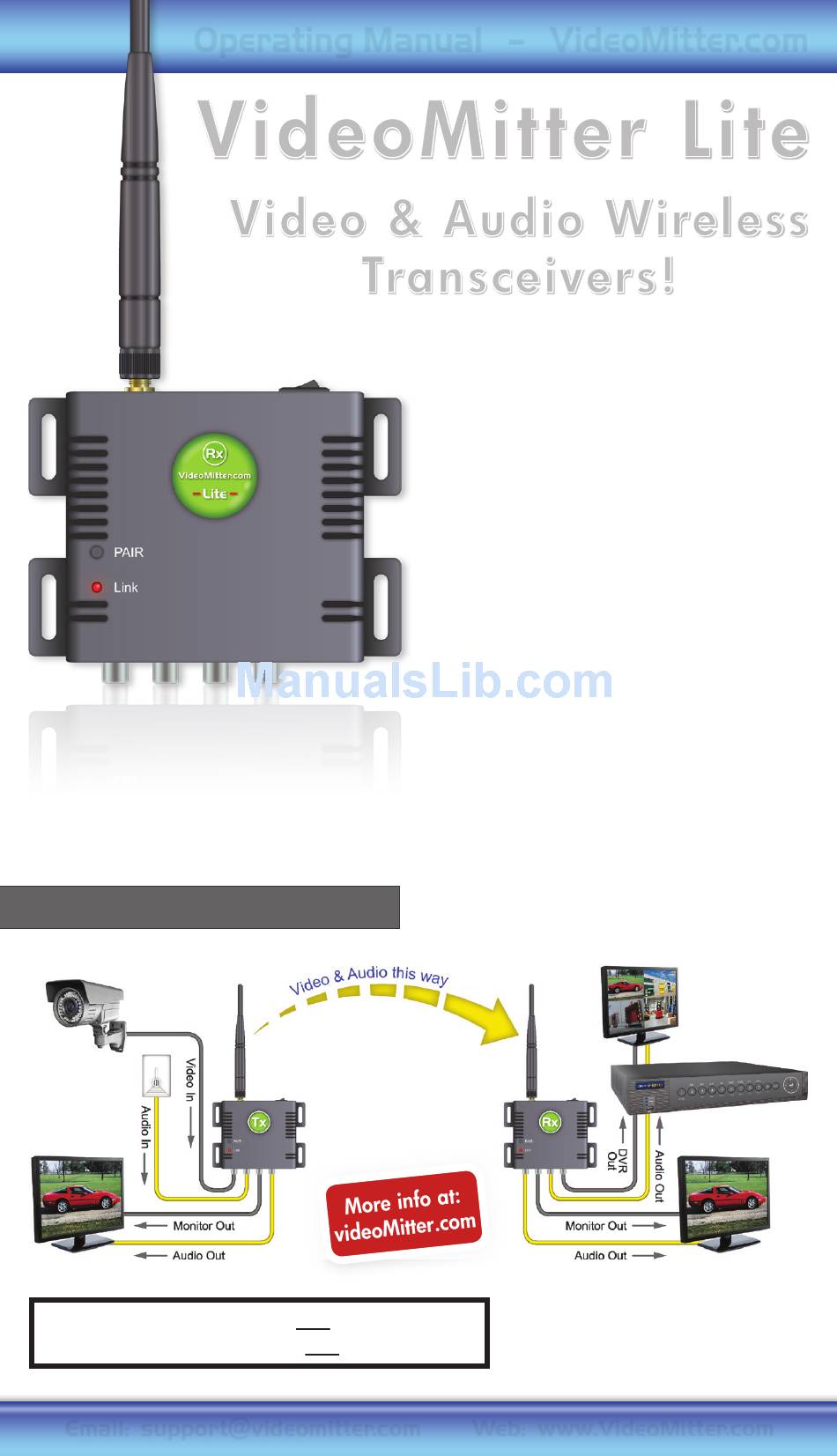

Typical Installation
NB: VideoMitter Lite units are NOT compatible with
VideoMitter MK1 & MK2 and can NOT be used together
Email:
support@videomitter.com
Operating Manual - VideoMitter.com
VideoM itter
Video & Audio Wireless
Transceivers!
Digital Data Transmission
for cleaner, sharper images over
longer distances
Privacy Pairing Function
for private video transmission, helping
comply with the Data Protection Act
Loopthroughs
easily add an extra monitor with audio
at both the transceiver and receiver end
Handshake Routine
2 way reporting for maximum security
Whisper Mode
listens for data at a low power for
energy efficiency
Web:
Lite
™
*Additional antennas
required for 1.2Km
www.VideoMitter.com
Advertisement
Related Manuals for Videomitter Lite
Summary of Contents for Videomitter Lite
- Page 1 Digital, Reliable Transmission, up to 1.2Km!* Typical Installation NB: VideoMitter Lite units are NOT compatible with *Additional antennas VideoMitter MK1 & MK2 and can NOT be used together required for 1.2Km www.VideoMitter.com Email: support@videomitter.com Web:...
- Page 2 VideoMitter Lite Instructions ™ Things the professionals know! - different sites will affect the range. The signal will not go through hills. The density of the hill and water it contains in the soil absorbs the microwave signal. The signal will go through branches of trees but remember that microwave signals will be attenuated greatly by water.
- Page 3 VideoMitter Lite Instructions ™ Things the professionals know! - getting maximum performance when fitting multiple pairs of VideoMitters on the same site. When you are fitting multiple pairs of VideoMitters on the same site, it’s really important to have some knowledge of good...
- Page 4 VideoMitter Lite Instructions ™ Read these instructions Receiver unit has the following connections before using the MIT160 and MIT170 as they contain vital information... Connections - TX/RX Video loopthrough via a phono socket for Although identical in appearance each unit is...
- Page 5 VideoMitter Lite Instructions ™ Connecting the Video & Audio Powering the Units Transmitter Both the transmitter and receiver are supplied with a power supply unit (PSU). If alternative PSUs are used, the PSU for the receiver needs Receiver to be capable of supplying 12V D.C. @ 260mA continuously.
- Page 6 VideoMitter Lite Instructions ™ Pairing Receiver with Transmitter Checking if the units are paired For security purposes and to ensure that transmissions are only shared by the receiver connected, the transmitter is paired with Set the units up at least 2 feet apart.
- Page 7 VideoMitter Lite Instructions ™ How to Pair Units First ensure that a event monitor connected that no signal is to the RX Receiver and displayed after the NO SIGNAL a video feed to the TX pairing process, Transmitter. Press this means that the...
-
Page 8: Installation Procedure
VideoMitter Lite Instructions ™ the enclosure and a good silicon seal made to Installation Procedure protect from water/moisture (figure 2). The transmitter and receiver will give the best results if there is line of sight between them. Obstructions will affect transmissions if the... -
Page 9: General Information
Therefore it is not advisable to place the transmitter directly behind a wall. Whilst the VideoMitter may work indoors through walls and office constructions, there are no easy ways of confirming this, so use the signal strength bar and attach a pair of antenna to improve transmission quality if necessary. -
Page 10: Troubleshooting
Metal etc can also screen the video signal. As the can completely block a transmission, whereas VideoMitter pack will either provide good non-metallic obstacles will introduce a certain video quality or nothing at all, you can either amount of signal attenuation. - Page 11 B - There are multiple pairs of MITKIT-LITE on the same site and they are interfering with each other, to remedy this move adjacent TX units & adjacent www.VideoMitter.com...
- Page 12 VideoMitter Lite Antennas ™ Line of sight* distance achievable with optional antennas 1.2Km AER540 AER540 AER550 AER550 AER505 AER505 750m Antenna AER510 AER510 connection cable 400m AER537 AER537 AER535 300m Connect these antennas AER535 Other site directly to the 300m...
- Page 13 VideoMitter Lite Instructions ™ Internal Semi-Directional Antenna - Direct Connection code:AER537 This antenna design offers a beam spread of around Specification 30° for good semi-directional performance. IP54 Rating - Indoor or sheltered Outdoor Antenna - RP SMA Female Fit to the Tx and Rx Up to 400m Range ...
- Page 14 VideoMitter Lite Accessories/Spares ™ High Gain Directional Parabolic Pole Mount Antenna code:AER540 Grid design parabolic antenna for a highly Specification directive signal. IP65 Rating - Indoor or Outdoor Connector N Female Fit to the Tx and Rx Up to 1.2Km Range ...
- Page 15 Can be used as a talkback amp with DVRs Use the VoiceOff for... Welcoming Inform in risk Warning off Visitors areas intruders Hard hats Warning! Intruder Welcome to Deterring must be worn detected, CCTV Groves Garden vandals system recording. Centre. in this area! www.VideoMitter.com Email: support@videomitter.com Web:...
- Page 16 All specifications are approximate. VideoMitter.com reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, VideoMitter. com cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment that these instructions refer to.
