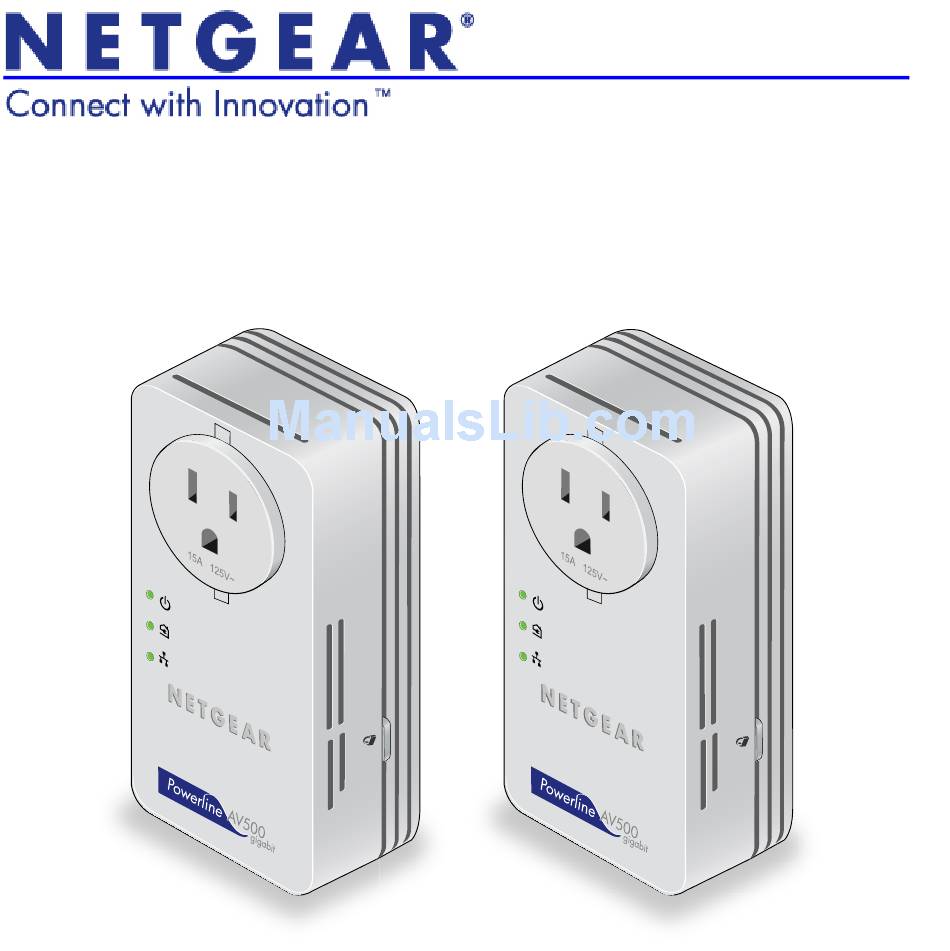

- Page 1 Powerline AV+ 500 Nano Set XAVB5601 Installation Guide...
- Page 2 See http://support.netgear.com/app/answers/detail/a_id/984. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product their names are registered trademarks or trademarks of respective holders.
-
Page 3: Package Contents
Package Contents Ethernet cables (2) Powerline adapters (2) Products sold in some locations include a Resource CD. Your Powerline adapter might look like one of these: France Germany/Europe Australia... -
Page 4: Hardware Features
Powerline Ethernet Factory Reset button Security button Compatible Powerline and HomePlug AV certified devices include the NETGEAR XAV101, XAV1501, XAV1004, XAV2001, XAV2501, XAV2602 XAVN2001, XAV5001, XAV5004, and XAV5501. For a complete list of HomePlug AV certified devices, go to www.homeplug.org/certified_products. - Page 5 LEDs The LEDS indicate the status of your Powerline adapters. • When you plug in the adapter, the Power LED lights up and turns green. • The adapter is not active when no Ethernet link has occurred for more than 10 minutes. The adapter enters power saving mode, and the Power LED turns amber.
-
Page 6: Install Your Powerline Adapters
Install Your Powerline Adapters... - Page 7 The filtered AC socket removes some electrical noise. Plugging a nearby device into the filtered AC socket improves performance. You can plug a power strip into the filtered outlet, but do not plug your Powerline adapter into a power strip.
-
Page 8: Secure Your Powerline Network
Secure Your Powerline Network A Powerline network forms when at least two compatible Powerline devices communicate. After the Powerline network is up and running, you can use the Security buttons on the adapters to add encryption to your Powerline network. CAUTION: Do not press the Security button until each adapter has powered up and its Power LED is solid green. -
Page 9: Technical Support
For additional information about setting up, configuring, and using your Powerline AV+ 500 Nano Adapter, see the User Manual For complete DoC please visit the NETGEAR EU Declarations of Conformity website at http://support.netgear.com/app/answers/detail/a_id/11621/. For GNU General Public License (GPL) related information, visit... -
Page 10: Safety Information
Safety Information • For national approvals (approval schemes other than CB), relevant national standards for plug, socket-outlet, and direct plug-in units (for example, US) shall also be consulted while testing and approving such products according to national standards. • AC input rating (NA): 100–125V, 0.2A (Max); 50–60Hz excluding socket outlet rating. - Page 11 cord needs to be a maximum of 1 m long and a minimum of 0.75 mm square of cross-sectional area. • Do not plug devices into the XAV5601 filtered AC outlet that exceed the product ratings. The output voltage of the filtered AC outlet is the same as the power outlet that the XAV5601 is plugged into.
