Powerline 500 Nano XAVB5101
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR Powerline 500 Nano

Summary of Contents for NETGEAR Powerline 500 Nano

  • Page 1 Powerline 500 Nano XAVB5101 Installation Guide...
  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

  • Page 3: Package Contents

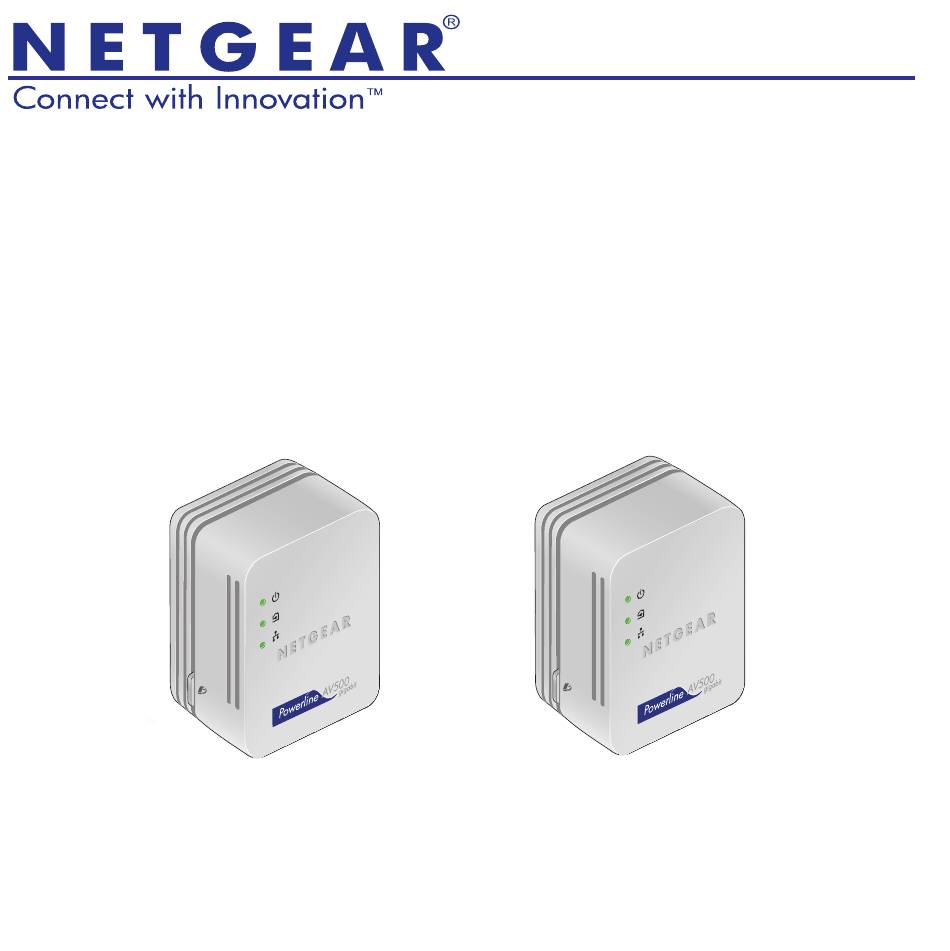

    Package Contents XAV5101 Powerline Ethernet cables (2) Adapters Products sold in some locations include a Resource CD. WARNING!! Do not plug Powerline devices into a power strip.

  • Page 4: Hardware Features

    Hardware Features Power LED Powerline Ethernet Security button Factory Reset button Ethernet port...

  • Page 5: Led Descriptions

    LED Descriptions The LEDs indicate the status of your Powerline adapters. • When you plug in the adapter, the Power LED lights up and turns green. The adapter is not active when no Ethernet link has occurred for more than 10 minutes. The adapter enters power saving mode, and the Power LED turns amber •...

  • Page 6: Button Descriptions

    Button Descriptions The buttons on your Powerline adapters let you do the following: • Factory Reset — Use the Factory Reset button to return your Powerline device to its default factory settings. Press and hold the Factory Reset button for an interval between 1 and 5 seconds, and then release it.

  • Page 7: Install Your Powerline Adapters

    Install Your Powerline Adapters Set up a secure Powerline network with two Powerline adapters. Step 1. Plug in the two Powerline adapters. Step 2. On each adapter, press the Security button for > 2, but < 5 seconds, and then release. The Powerline LED starts blinking.
  • Page 8 Add a new Powerline adapter to the secure Powerline network. Step 1. Plug in the new adapter. Step 2. Press the Security button on the new adapter and on one of the existing adapters. The Power LED starts blinking. The Power LED stops blinking.

  • Page 9: Technical Support

    After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. Registration is required before you can use the telephone support service. Registration through the NETGEAR website is strongly recommended. Go to http://support.netgear.com...

  • Page 10: Compatible Netgear Powerline Devices

    Compatible NETGEAR Powerline Devices Your Powerline adapter can share a Powerline network with these compatible NETGEAR devices: XAV101, XAV1004, XAV2001, XAV1101, XAV1301, XAV1601, XAV2501, XAV2602, XAV5001, XAV5501, XAV5601, and XAV5004. For a complete list of HomePlug AV certified devices, go to...
  • Page 11 Compliance Declarations of Conformity For complete DoC please visit the NETGEAR EU Declarations of Conformity website at: http://support.netgear.com/app/answers/detail/a_id/11621/. For GNU General Public License (GPL) related information, please visit http://support.netgear.com/app/answers/detail/a_id/2649. WARNING: Do not stack equipment or place equipment in tight spaces, in drawers, or on carpets.
  • Page 12 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA February 2012...
