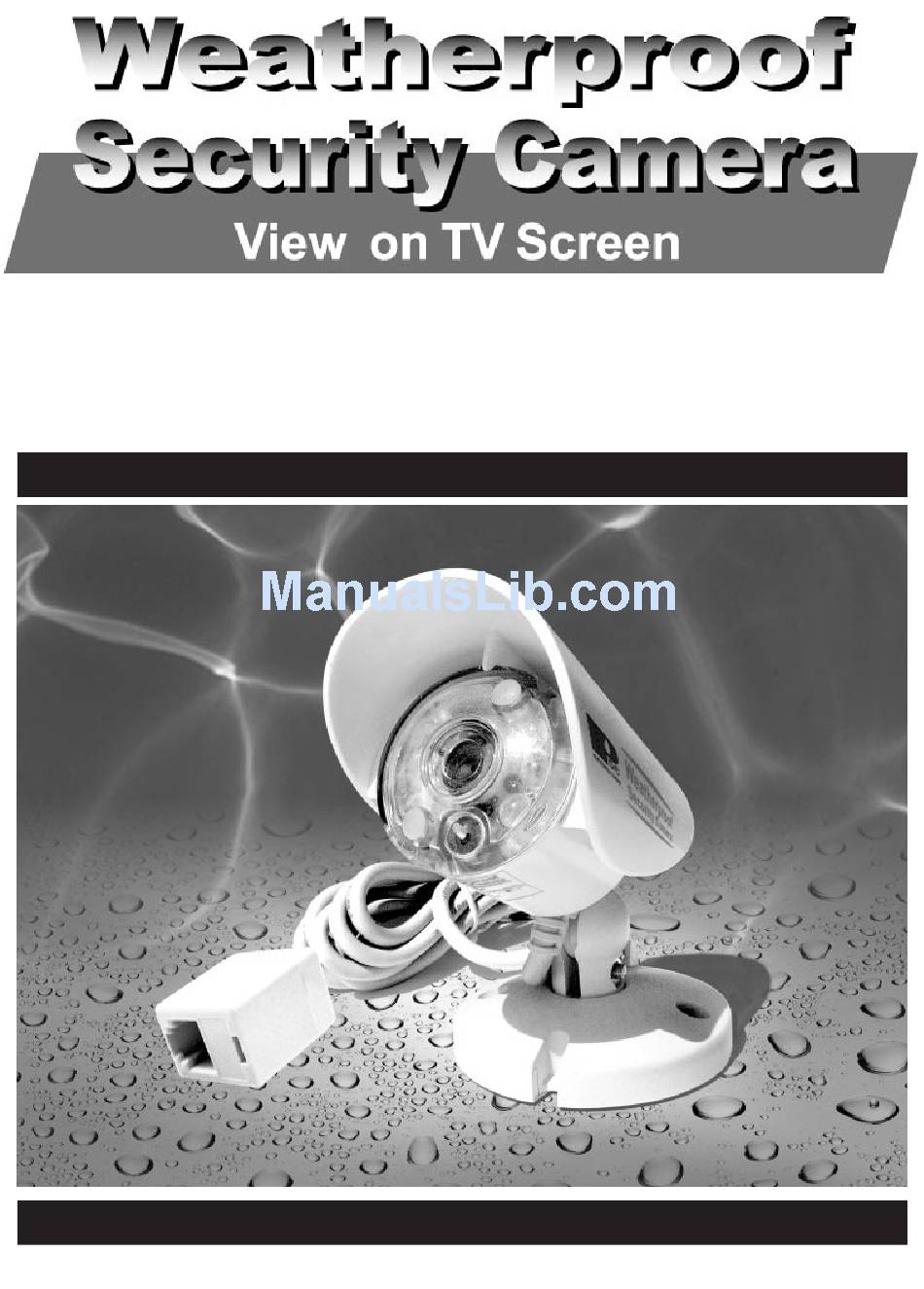

Page 1: Instruction Manual
Instruction Manual BS08 Black / White Camera with Night Vision Manual Revised 09g... - Page 2 IntRoductIon This Weatherproof Security Closed Circuit TV Camera kit is designed to make installation as simple and quick as possible. However it is essential that the installer reads and fully understands the instructions and precautions contained in this manual before installing. The Weatherproof Security Camera kit includes: Ultra Mini Black &...
- Page 3 cautIon Do not open the camera housing to prevent damage. Warranty is void if housing has been opened. Disconnect power supply before installation. Verify that installation surface has no hidden utility lines before drilling or driving screws. Wear ANSI-approved safety goggles and heavy-duty work gloves during installation.
-
Page 4: Specifications
SpecIfIcatIonS TV System CCIR Power Requirements 7.5 VDC, 300 mA Image 1/4” CMOS Sensor Effective Picture Element 320 (H) x 240 (V) 352 (H) x 288 (V) Scanning System 2:1 Interlaced Sync. Frequency H: 15750 Hz, V: 60 Hz H: 15625 Hz, V: 50 Hz Sync.
