Drill Master 92623 Owner's Manual & Safety Instructions

Drill Master 92623 Owner's Manual & Safety Instructions

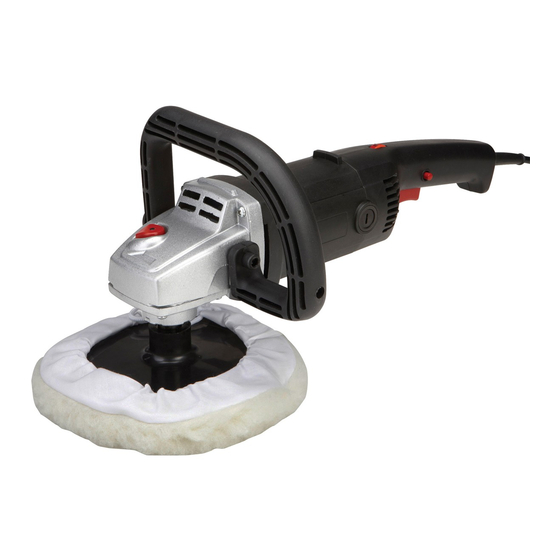

7" variable speed polisher/sander

Advertisement

Owner's Manual & Safety Instructions
Save This Manual
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
7" Variable Speed
Polisher/Sander
Rev 12c
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
©
Copyright
2004 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly, operating,
visit our website at: http://www.harborfreight.com
email our technical support at: tech@harborfreight.com
®
. All rights reserved.
Polishing pad sold separately
Read this material before using this product.
Failure to do so can result in serious injury.
Save thiS manual.
ITEM 92623

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 92623 and is the answer not in the manual?

Questions and answers

Summary of Contents for Drill Master 92623

  • Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing Save thiS manual.
  • Page 2: Table Of Contents

    2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Page 2 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 3: Electrical Safety

    A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Item 92623 For technical questions, please call 1-800-444-3353. Page 3...
  • Page 4: Power Tool Use And Care

    Service have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Page 4 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 5 15. Do not operate the power tool near flammable for one minute. Damaged accessories will materials. Sparks could ignite these materials. normally break apart during this test time. Item 92623 For technical questions, please call 1-800-444-3353. Page 5...
  • Page 6 These carry important safety information. If unreadable or missing, contact 24. WARNING: Some dust created by power sanding, Harbor Freight Tools for a replacement. sawing, grinding, drilling, and other construction activities, contains chemicals known [to the State 18. Avoid unintentional starting.
  • Page 7: Vibration Safety

    7. To reduce vibration, maintain the tool as tingling, numbness, and white or blue fingers), explained in this manual. If any abnormal seek medical advice as soon as possible. vibration occurs, stop use immediately. Save theSe inStRuCtiOnS. Item 92623 For technical questions, please call 1-800-444-3353. Page 7...
  • Page 8 National Electrical Code. 2. Double insulated tools may be used in either of the 120 volt outlets shown in the preceding illustration. (See Outlets for 2-prong plug.) Outlets for 2-prong plug Page 8 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 9: Extension Cords

    Do not cover ventilation ducts. Keep flammable objects away. n 0 xxxx/min. No Load Revolutions per Minute (RPM) WARNING marking concerning Risk of Electric Shock. Properly connect power cord to appropriate outlet. Item 92623 For technical questions, please call 1-800-444-3353. Page 9...
  • Page 10: Specifications

    For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram near the end of this manual. Page 10 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 11 Option 2: using with a Side handle (Side handle not included) This tool can be used with many standard angle grinder side handles which can be installed on either side. Install Side Handle Here Or Here Figure C Item 92623 For technical questions, please call 1-800-444-3353. Page 11...
  • Page 12 Functions Speed Adjustment Lock-on Button Handle Spindle Lock Cap Trigger Backing Pad Carbon Brush Holder Cover Spindle Sanding Disc (sold separately) Figure D: Functions Page 12 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 13: Operation

    The power cord must reach the work area with enough extra length to allow free movement while working. Item 92623 For technical questions, please call 1-800-444-3353. Page 13...
  • Page 14 Otherwise, damage may occur to d. Resume operation. the paint being polished. Harbor Freight Tools is not responsible for damage to the vehicle’s finish note: The most common error when waxing/polishing due to improper use of this Polisher/Sander.
  • Page 15 Press and release the Trigger to stop. 6. Wait until the Polisher/Sander has reached full speed, then gently contact the surface. Item 92623 For technical questions, please call 1-800-444-3353. Page 15...
  • Page 16: Maintenance

    Polisher. Do not use solvents. only by a qualified service technician. Do not immerse any part of the tool in liquid. Page 16 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 17: Troubleshooting

    3. Wax sprays off polishing pad. 3. Reduce RPM to minimum setting. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. Item 92623 For technical questions, please call 1-800-444-3353. Page 17...
  • Page 18: Parts List And Diagram

    If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 18 For technical questions, please call 1-800-444-3353. Item 92623...
  • Page 19: Assembly Diagram

    Diagram Item 92623 For technical questions, please call 1-800-444-3353. Page 19...
  • Page 20: Warranty

    90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.

This manual is also suitable for:

60626
