Predator Engines 69730 Owner's Manual page 24
212cc horizontal engine
Hide thumbs
Also See for 69730:
- Owner's manual & safety instructions (24 pages) ,
- Owner's manual & safety instructions (24 pages) ,
- Owner's manual & safety instructions (24 pages)
Table of Contents
Advertisement

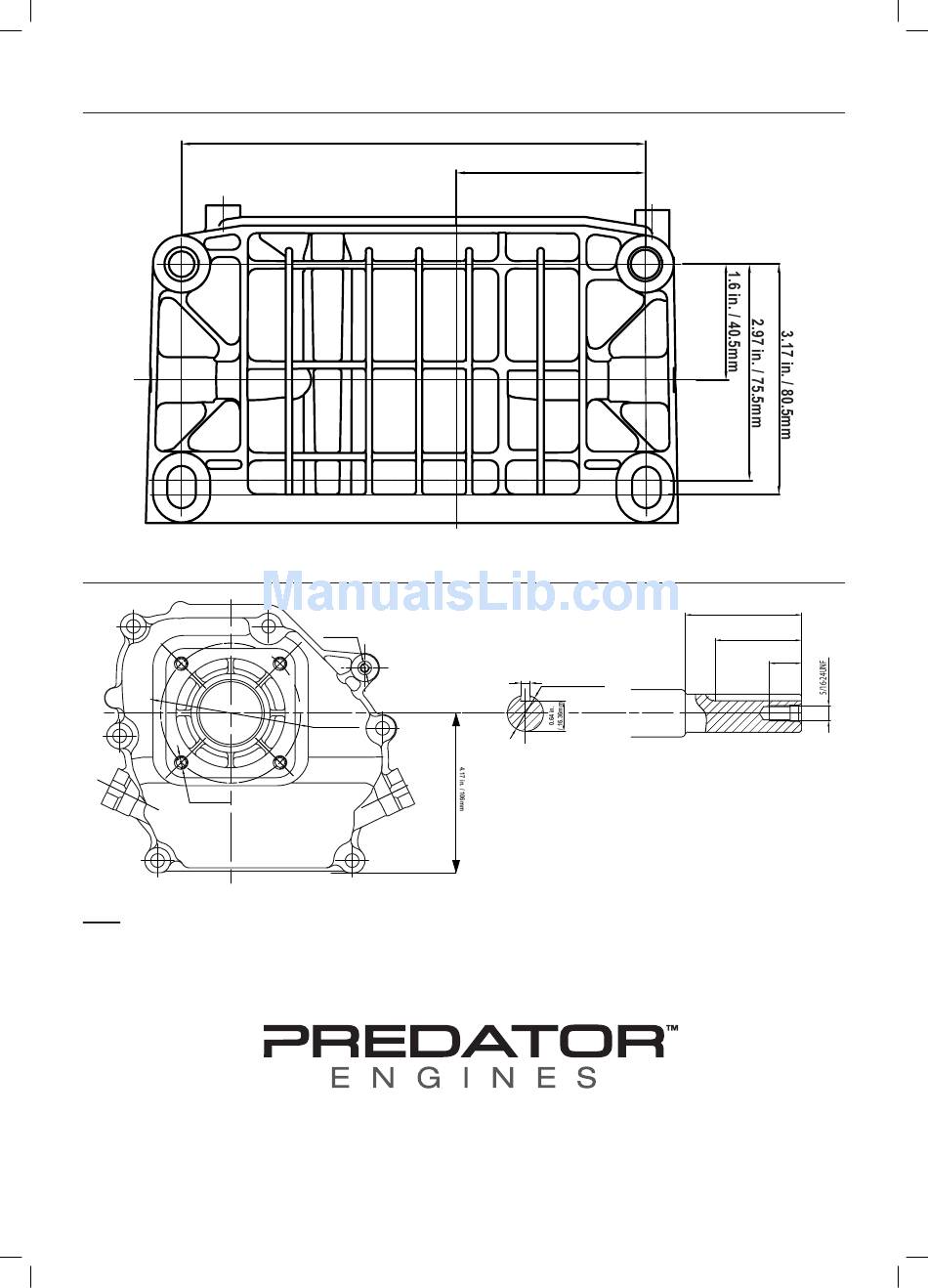

Mounting Hole Diagram
Power Take-Off Diagram
4x5/16-24UNF
Note: Not to scale.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 520-0882
6.38 in. / 162mm
5/16-24UNF
Ø3.625 in. / 92mm
2.6 in. / 66mm
0.1875 in. / 4.78mm
Ø0.75 in. / 19.05mm
2.43 in. / 61.7mm
1.79 in. / 45.5mm
0.67 in.
/ 17mm
