Vauxhall KTA-2690/7-VX-en Owner's Manual page 180

2. Press the retaining lug and
remove the bulb carrier
downwards.

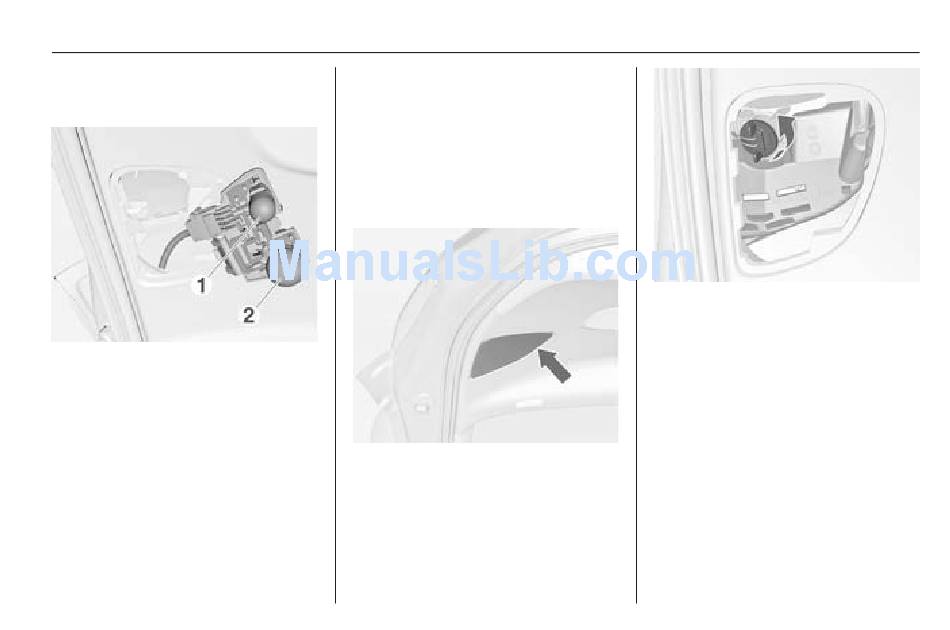

3. To replace the reverse light bulb
(1), remove and replace the bulb.
To replace the tail light/rear fog
light bulb (2), push the bulb
slightly into the socket, rotate
anticlockwise, remove and
replace the bulb.
4. Insert the bulb carrier into the
retainer.
5. Attach the cover.
6. Switch on the ignition, operate
and check all lights.
For replacing the tail light bulb and
reverse light bulb on the right side of
the tailgate frame, proceed in the
same way.
Version with Light Emitting Diode
(LED):
Only the reverse light bulb can be
changed.
1. Open the tailgate and remove the
cover with a screwdriver.
Vehicle care
2. Rotate the bulb holder
anticlockwise to disengage.
Withdraw the bulb holder.
3. To replace the reverse light bulb,
push the bulb slightly into the
socket, rotate anticlockwise,
remove and replace the bulb.
4. Insert bulb holder and turn
clockwise.
5. Attach the cover.
179
