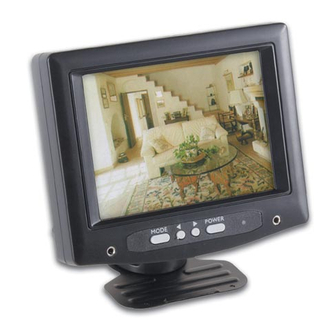

MONCOLHA5P -- 5.6" TFT LCD MONITOR ------ ENGLISH
1. Introduction
The MONCOLHA5P is controlled by an OSD ("On-Screen Display") microcomputer. This computer is used to adjust
contrast, brightness, colour, volume and the OSD display position. The device is also equipped with an internal
EEPROM memory that will save the original settings in case the power is cut.

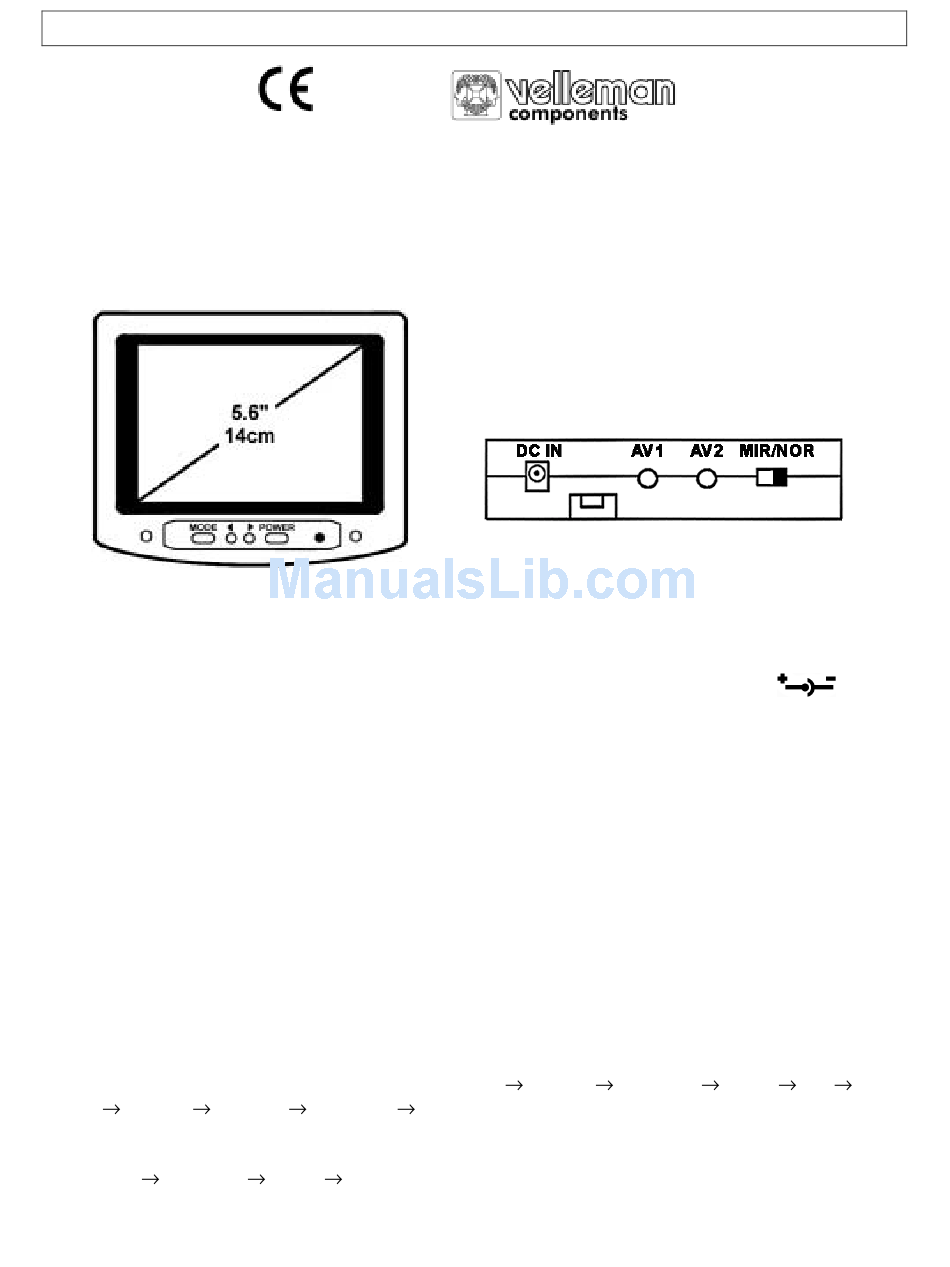

2. Description of the Front and Side Panels = Beschrijving van het front- en zijpaneel
Description du panneau frontal et du panneau latéral
FRONT PANEL
FRONTPANEEL
PANNEAU FRONTAL
MODE button : to select the various adjustments
◄-button
: to reduce the entered values
►-button
: to increase the entered values
POWER button : to activate/deactivate the device
Two headphone outputs (3.5mm stereo jacks) : one on
the left, the other on the right
Remark : The adjustments are displayed backwards if the MIR/NOR switch to the right of the A/V connections is pushed
to the left. Push the switch to the right to display the adjustments normally (see figure of the side panel above).
3. Operation
a) Make sure the video and audio input connections are properly executed.
b) Hold MODE and ◄ simultaneously and then connect the 12VDC power adapter with the DC IN jack. Release
MODE and ◄. Press MODE until "OSD HP" is displayed. Use ◄ and ►to determine the horizontal display
position of the various adjustments. Press MODE and do the same for "OSD VP", which is the vertical display
position for the adjustments.
c) Press MODE to display the following adjustments : Volume
HP
OSD VP
Up/Down
00, max. 255).
d) Disconnect the power adapter and plug it in again. The device is now in the normal mode. Press MODE to select
Contrast
Brightness
video and audio output connections are properly executed.
MONCOLHA5P
NTSC/PAL
... in that order. Use ◄ and ►to enter the desired values (min.
Colour
Volume in that order. Adjust the values with ◄ or ►and make sure the
SIDE PANEL
ZIJPANEEL
PANNEAU LATERAL
DC IN : input tension 12VDC/600mA (
AV1 : composite video input signal + audio input
AV2 : composite video input signal + audio input
Contrast
Brightness
1
)
Colour
Tint
OSD
VELLEMAN
