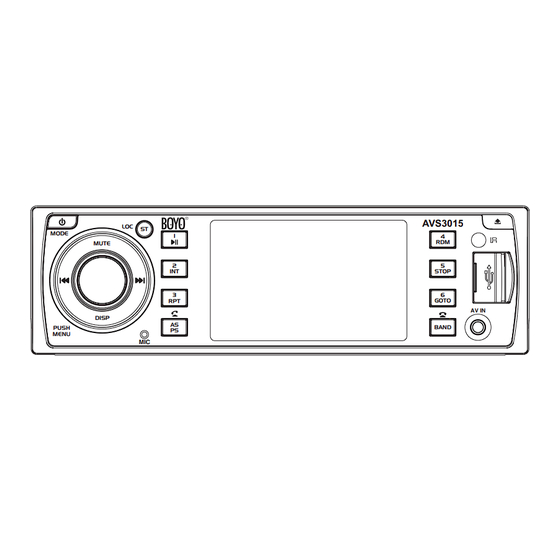

CAR MULTIMEDIA DISC/VCD/MP3 PLAYER
LOC
MODE
MUTE
DISP
PUSH
MENU
User's Manual
ST
1
2
INT
3
RPT
AS
PS
MIC
DISC/VCD/CD/CD-R/CD-RW/MP3/MPEG4 Compatible
Anti-Shock Mechanism
AM/FM Radio-tuner
Front Panel USB Input Port
Memory card slot
Built-in BT hands-free system
AV input and AV Output Socket
Sub-woofer Output Socket
3.0" Widescreen Digital TFT LCD Display
Remote Control
Fold Down Detachable Panel
4 x 40 W High Power Output
ISO Connectors for Power Supply and Speaker Outputs
AVS3015
AVS3015
4
RDM
5
STOP
6
GOTO
AV IN
BAND

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVS3015 and is the answer not in the manual?

Questions and answers

Related Manuals for Boyo AVS3015

Summary of Contents for Boyo AVS3015

  • Page 1 AVS3015 CAR MULTIMEDIA DISC/VCD/MP3 PLAYER User’s Manual AVS3015 MODE MUTE STOP GOTO AV IN DISP BAND PUSH MENU DISC/VCD/CD/CD-R/CD-RW/MP3/MPEG4 Compatible Anti-Shock Mechanism AM/FM Radio-tuner Front Panel USB Input Port Memory card slot Built-in BT hands-free system AV input and AV Output Socket Sub-woofer Output Socket 3.0”...

  • Page 3: Table Of Contents

    Page CONTENTS Contents Safety information Installation Using the detachable front panel Wiring diagram Operations Location and function of keys ing the remote control General perations Radio perations AV menu settings Disc o perations Special disc o perations Data disc operations USB operations Memory card operations...

  • Page 4: Safety Information

    Safety Information Disc notes CAUTION: Be sure to use discs with following marks only for the unit to play: Mobile disc player is a class 1 laser product. However this mobile disc player VIDEO / D AUDIO uses a visible/invisible laser beam which (12 CM disc) could cause hazardous radiation exposure if directed.

  • Page 5: Installation

    Installation Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

  • Page 6: Using The Detachable Front Panel

    1. DIN FRONT-MOUNT (Method A) Installation Opening This unit can be installed in any dashboard having an opening as shown below: 53 mm 182 mm 7. Reconnect the wire harness and the antenna and be careful not to pinch any Installing the unit wires or cables.
  • Page 7 Removing the unit Using the detachable front panel 1. Make sure the ignition is turned off, Removing and protecting detachable and then disconnect the cable from the front panel vehicle battery's negative (-) terminal. The front panel of the unit may be removed 2.

  • Page 8: Wiring Diagram

    Wiring diagram BT Antenna FUSE 15A ISO CONNECTOR Parking brake wire B ( - Pink/Black ISO connector: 4-speaker System (VIOLET / BLACK) Rear Right Speaker (VIOLET) Part A: Part B: (GRAY / BLACK) No Connect Rear Right + (Violet) Front Right Speaker (GRAY) No Connect Rear Right - (Violet/Black)

  • Page 9: Operations

    Operations Location and function of keys Front panel: AVS3015 MODE MUTE STOP GOTO AV IN DISP BAND PUSH MENU The car radio after removing the front panel: Descriptions of Function Controls Power on/off ( ) Button, MODE Button (15) AS/PS (Automatic Search & Preset memory...

  • Page 10: Using The Remote Control

    MO/ST following. - Do not subject the remote control to excessive shock. BAND AVS3015 - Do not put in a trouser pocket. - Keep away from food, moisture and dirt. - Do not place in direct sunshine. Descriptions of Function Controls...

  • Page 11: General Perations O

    Adjusting the volume level 2. Replacing the battery Rotate volume knob on the front panel Replace the battery with the same type press VOL+ VOL- button on the and the (+) side facing up. remote control to adjust volume level. Anti-theft LED Indicator Designed as a theft deterrent, the red LED will flash when the unit is turned off and the...

  • Page 12: Radio Perations O

    or briefly press on the remote MO/ST Radio operations control to choose FM STEREO or MONO audio effect. To select the radio mode Press the MODE button to access the Local/Distant source interface, then press the In urban settings, most stations are strong front panel or press the ◄...

  • Page 13: Av Menu Settings

    Setup Menu AV menu settings Setup AV Menu Overwiew You can adjust various settings of the unit from the AV menu. The AV menu contains the menu items and submenus shown in the figure below: System Clock 1. Press the MENU button on the front 10 : 06...
  • Page 14 Picture Menu Audio Menu PICTURE DEFAULT TINT Press button on the front Press button on the front panel or press the ◄ ► ▲/▼ panel or press the ◄ ► ▲/▼ button on the remote control to select a button on the remote control to select a menu item.

  • Page 15: Disc Operations

    For MP3/JPEG/MPEG4: Disc operations Use the cursor button ( ▲/▼/◄/► ) to select a file or folder, then press the ENTER button Loading/Removing a Disc to confirm your selection. 1. Press the Open ) button on the front If you select a file, it will be played. If you panel to fold down the front panel and then select a folder its contents(files) will be insert a disc into the disc slot with the label...

  • Page 16: Special Disc Operations

    For CD/VCD/SVCD: Special disc operations REP 1 REP ALL REP OFF For MP3: Disc Menu Operations REP 1 REP DIR REP ALL REP OFF Menu-driven playback is possible while playing a disc with menu-driven features or For disc: when playing a VCD with PBC(Playback REP CHAPTER REP TITILE REP OFF...
  • Page 17 audio channels, you can select the desired For VCD/SVCD/CD: audio channel to play by pressing the AUDIO button. PROG MONO L: Left audio channel only. MONO R: Right audio channel only. MIX MONO: Mix mono audio (left/right). STEREO: Normal stereo (left / right) playback.

  • Page 18: Data Disc Operations

    3. Time indication list display mode, press the number buttons Elapsed playing time of the disc; to select a title, a chapter, or a track, then Remaining time of the disc; press the ENTER button to confirm your Elapsed playing time of the current selection.

  • Page 19: Usb Operations

    button to confirm your selection. Memory card operations Playback type icons: AUDIO Playback mode (default) JPG Playback mode (default) Using the memory card: This disc player features a memory card MOVIE Playback mode (default) slot. When you insert a memory card into the memory card slot, the disc player will In the viewing of picture or playing movie, read the memory card automatically.

  • Page 20: 8 B T Hands-Free Function

    3. DIAL CALL BT hands-free function 3.1 Dial with the mobile phone directly. 3.2 Dial with the remote controller. When link up your mobile phone to this BT 3.2.1 After connecting, press the “ 0~9 , # ” hands-free system, you can dial or receive push button on the remote control to enter calls via this BT device during driving.
  • Page 21 List of the latest 6 outgoing calls. this preset item. MISSED (Missed phone number): List of the latest 6 Missed calls. 10. Voice dialing function AUTO ON/OFF: Switch auto answer or If your mobile phone supports this function, you can also use this function with the manual answer.

  • Page 22: Setup

    which will sense the type of monitor Setup attached to the output and select NTSC or PAL as need. If you know the type of In Disc mode, when the disc is playing or monitor, you should choose the type in in stop mode, press the SETUP button to...
  • Page 23 Playing a video recorded in one aspect ratio on a monitor with a different ratio can result in some mismatches and undesirable display distortion or cutoffs. TV Screen Size Picture Format 16:9 on Disc Pan Scan Letter-box Wide Screen 4) PASSWORD The password system is used in conjunction with the Parental Controls 16:9...
  • Page 24 Language Setup 1. KEY: Change among b, -4, -2, 0, +2, +4, #. When you open the language setup page, you will see the following screen: Digital Setup When you open the DIGITAL SETUP LANGUAGE SETUP menu, you will see the DIGITAL SETUP OSD LANGUAGE screen: ENGLISH...

  • Page 25: 3 Attachment

    Playing MP3 discs Attachment What is MP3? About Parental Controls MP3 (MPEG-1 Audio Layer 3) is a Commercially-recorded discs have compression standard prescribed by the parental level assignments. The range of ISO, the International Standardization parental controls is from 1 to 8. Organization and MPEG, which is a joint In general, this range corresponds to activity institution of the IEC.

  • Page 26: Trouble Shooting

    “Progressive” (typically used for website Trouble shooting display) or “lossless” (an older format which is rarely used today) JPEG files If it appears that your car disc player is cannot be played. So be sure you are faulty, please first consult this checklist. saving the files in the proper format.

  • Page 27: 5 Specifications

    No Sound Specifications ♦ Check the audio connections. GENERAL The Player Does Not Respond to the Power Supply Requirements Remote Control DC 12 Volts, Negative Ground ♦ Aim the remote control directly at the Chassis Dimensions sensor on the front of the player. 178(W)x160(D)x 50(H) mm ♦...
