Ashly pema4125 Specifications

Hand-built in
5-Year Warranty 70V Rated
Webster, NY
pema

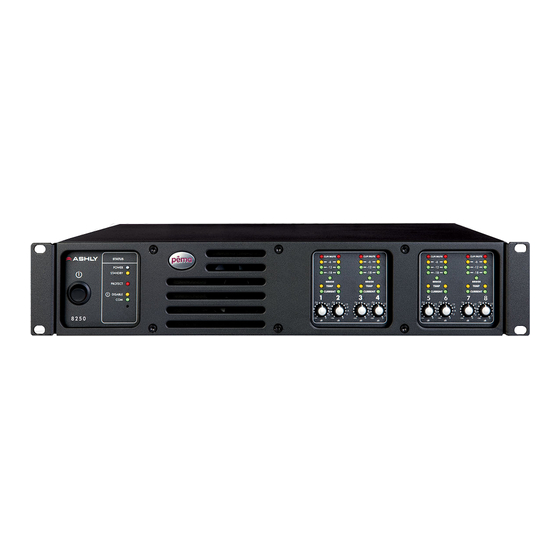

PEMA™ sets a new industry benchmark for value-engineered
zone sound systems. By seamlessly merging our powerful,
open-architecture DSP functionality paired amplifier per-
formance inside a two-rack space unit, PEMA lowers overall
system cost, occupies less space, improves energy efficiency,
and both speeds and simplifies system installation and
programming. Four and eight amplifier channel versions
are available at both 125 and 250 Watts per channel.
Full 96kHz performance is available on 32-bit SHARC
processors for utterly transparent audio.
PEMA changes the way consultants and integrators approach
sound system design. With only the addition of input sources
and output speakers, PEMA delivers an elegant solution with
less cabling, less rack space, and less installation time, using
proven DSP and amplifier technology that will awe clients
with its simplicity, sophistication, and reliability.
In addition to DSP algorithms such as ambient noise compen-
sation, advanced automatic feedback suppression, automatic
mixer, and a full complement of filters, EQs, delays, and the
like, PEMA offers DSP control of the amplifier functionality
as well: selection of bridge-mode operation, HPF settings for
constant voltage system networks, stereo-linking of channel
pairs, MIC/LINE/TEL-PAGE functions on channel 1, full control
of ducking priorities, and full-range remote-gain control
capability.
PEMA's I/O count and formats are ideal for small to mid-sized
installations. Each variant has eight balanced input channels
that are software selectable for mic or line levels. The first
channel may also be set for a transformer isolated, TEL-PBX
level. Additionally there are eight pairs of summed-mono RCA
connectors optimized for consumer line level devices. Eight
preamp auxiliary outputs allow integrators to route
signals from the matrix mixer to anywhere the system
requires.
Ashly Audio, Inc.
847 Holt Road
Webster, NY 14580 USA
+1-800-828-6308 US toll free
+1-585-872-0010 tel
+1-585-872-0739 fax
info@ashly.com
u
sales@ashly.com
u
www.ashly.com
u
© 2014 All features, specifications and graphical representations are subject to change or improvement without notice.
Ashly Audio is a division of Jam Industries, Ltd. DS-1 1213
100V Rated
™
p -e
rotea
m a
edia
As a member of the respected Protea™ DSP lineage,
PEMA is remarkably easy to program and deploy. All set
up is accomplished using standard 10/100 Ethernet
protocol and our Protea™ ne Software on a PC platform.
Hot-plug DSP placement allows users to insert any function
into any channel block, even when running live audio.
Automatic DHCP network IP configuration reduces network
set up time. Lockable front panel controls and multi-level
software security with password access guarantee a tamper-
proof audio system.
PEMA Features:
• CobraNet® and Dante® network audio fully supported
• 8-in x 8-out sophisticated matrix mixing
• 8 built-in mic pre's
• Gain sharing automatic microphone mixing (Automixer)
• Automatic feedback suppression
• Ambient noise compensation
• Dedicated telephone/PBX input
• Dual RCA and balanced euroblock inputs
• Post DSP AUX line level outputs
• Stereo summed to mono
• Event scheduling (RTC)
• Adjustable HP/LP filters
• Built-in pink/white noise & sine wave generator
• Full suite of Ashly Protea™ DSP
• Hot-plug DSP placement
• 96kHz or 48kHz sample rate
• 32-Bit SHARC DSP
• 24-Bit A/D–D/A audio resolution
• 15V phantom power for mic inputs
• Full control using Ashly software over 10/100 baseT Ethernet
• Easy and intuitive user interface
• Automatic DHCP network IP configuration
• Euroblock connectors for preset recall, DC remote level
control and serial data control
• External control via Ashly standard wall remotes, Ashly
Ethernet wall remotes or Ashly Remote iPad® App
• Level control via variable DC control voltage
• Stand-By mode activation via contact closure
• Multi-level Security
• Safety/Compliance:
c
quipped
mplifier
TUV , CE, FCC, RoHS
us
PEMA Models 4125
Continuous Average Power: Output Per Channel, Low Z Models, Stereo
Mode, 20Hz–20kHz, 1%THD, All Channels Driven
4 Ohms 125W
8 Ohms 75W
Low Z Output: Bridge Mode, 20Hz–20kHz, 1% THD, All Channels Driven
8 Ohms 250W
70V, 100V Distributed Output: 20Hz–20kHz, 1% THD, All Channels Driven
70V (per channel) 125W
100V (per channel) 125W
Line Current Draw: 120V, All Channels Driven
Standby Mode 190mA 290mA
Idle (no signal) 590mA 565mA
1/8 Max Power, Pink Noise, All Channels Driven
Typical 1.70A
1/3 Max Power, Sine Wave, All Channels Driven
Maximum 3.72A
Thermal Dissipation: BTU/hr, All Channels Driven
Standby Mode 46.7
Idle (no signal)
123
1/8 Max Power, Pink Noise, All Channels Driven
Typical 232
1/3 Max Power, Sine Wave, All Channels Driven
Maximum 251
Signal to Noise
20Hz–20kHz, Unweighted >102dB >102dB
Front Panel LED Indicators
Unit Status
Blue
POWER Switch: On, Off
Yellow
STANDBY Standby, flashing
Red
PROTECT On, Off
Yellow
DISABLE On, Off
Green
COM On, for Ethernet data or Device ID
Each Channel
Red
Clip/Mute
Yellow
SIGNAL LEVEL -6dB
Green -18dB, -12dB
BRIDGE Green Per Channel
TEMP Yellow Per Channel
Green
CURRENT Per Channel: Proportional to output
4125
pema
4250
pema
8125
pema
8250
pema
8125 4250 8250
125W 250W 250W
75W 150W 150W
250W 500W 500W
125W 250W 250W
125W 250W 250W
190mA 290mA
540mA 565mA
2.78A 2.85A 5.0A
5.78A 3.00A 5.50A
63.8 46.7 63.8
187 123 187
444 341 700
481 378 775
>105dB >105dB
