Fisher & Paykel E402BRXFDU G FP SX Parts Manual

Refrigerator/freezer
Hide thumbs Also See for E402BRXFDU G FP SX:

Advertisement

Table of Contents

Parts Manual
Refrigerator/Freezer
Model:
E402BRXFDU G FP SX
Product Code:
22274-B
22274-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E402BRXFDU G FP SX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel E402BRXFDU G FP SX

Summary of Contents for Fisher & Paykel E402BRXFDU G FP SX

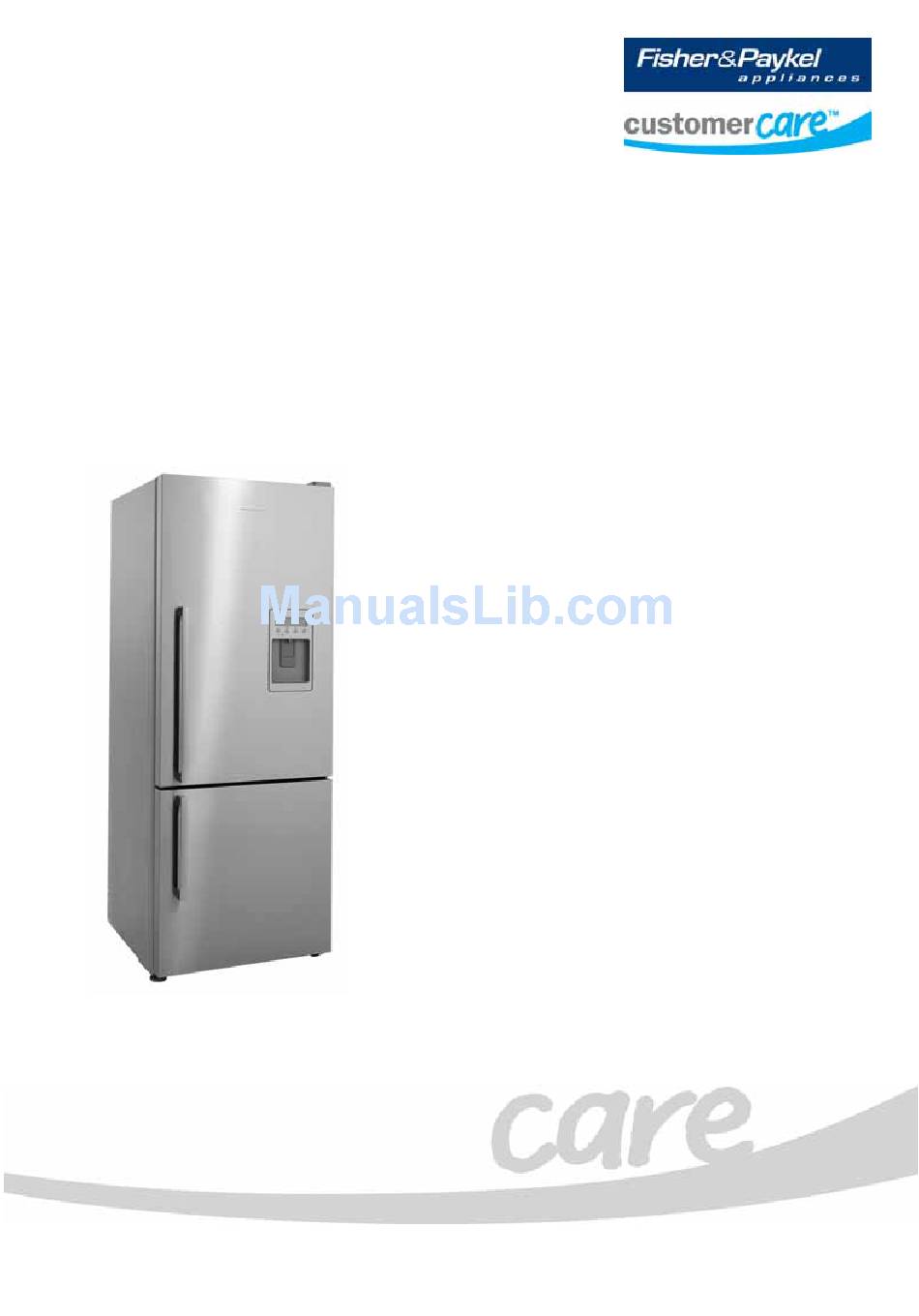

  • Page 1 Parts Manual Refrigerator/Freezer Model: E402BRXFDU G FP SX Product Code: 22274-B 22274-B...
  • Page 2 22274-B...
  • Page 3 22274-B - NOVRMBER 2009 PRODUCT Brand Fisher & Paykel Voltage 220-240V 50Hz Model E402BRXFDU G FP SX Product Code 22274-B Fisher & Paykel Appliances Ltd Fisher & Paykel Customer Services Pty Ltd 78 Springs Road, PO Box 798, Cleveland, QLD 4163 East Tamaki A.C.N.
  • Page 4 22274-B...

  • Page 5: Table Of Contents

    22274-B CONTENTS DOOR ASSEMBLY & COMPONENTS ..................... 6 WATER DISPENSER HOUSING AND MODULE CONTROL ............10 CABINET COMPONENTS ......................12 ICEMAKER COMPONENTS AND ICE BIN ..................16 FAN, COVERS AND EVAPORATOR ASSEMBLIES..............18 WATER TANK AND DUCT COVERS ..................... 20 ACTIVE SMART ST4 TERMINALS PLUGS &...

  • Page 6: Door Assembly & Components

    22274-B DOOR ASSEMBLY & COMPONENTS...
  • Page 7 22274-B DOORS ASSEMBLY AND COMPONENTS PART DESCRIPTION 813931 HINGE TOP DOOR FLAT 813926 TRIM CORNER DOOR FLAT 315017 KIT COVER DOOR SHELF 635 876503 COVER DOOR SHELF CLEAR LH Includes 876504 COVER DOOR SHELF CLEAR RH Includes 876719 SHELF EGG RACK 635 874974 SHELF DOOR SMALL WHITE RH 315017...
  • Page 8 22274-B DOORS ASSEMBLY AND COMPONENTS...
  • Page 9 22274-B DOORS ASSEMBLY AND COMPONENTS PART DESCRIPTION 817825P SCREW 8X22 WAFER PHIL ST TV (PKT 10) 836832 BEARING HINGE WATER FLAT 836829 GUIDE SERVICES DOOR 813928 COVER MAGNET DOOR FLAT 883315 MAGNET DOOR SWITCH ST4 836948P SCREW 6X1/2 PAN PH SS (PKT 10) 819258 BOOKLET U&C I&W AA/UK/HK/IS 820303...

  • Page 10: Water Dispenser Housing And Module Control

    22274-B WATER DISPENSER HOUSING AND MODULE CONTROL...
  • Page 11 22274-B WATER DISPENSER HOUSING AND CONTROL MODULE PART DESCRIPTION 819740P COVER DISPLAY NMF SX SPARES Includes HOUSING INTERFACE FRONT 836905 LEVER WATER DISPENSER 819415P MODULE DISPLAY I&W NMF SPARES Includes MODULE ELECTRONIC DISPLAY Includes WINDOW DISPLAY Includes BUTTONS CONTROL DISPLAY Includes HOLDER BUTTONS 312200...

  • Page 12: Cabinet Components

    22274-B CABINET COMPONENTS...
  • Page 13 22274-B CABINET COMPONENTS PART DESCRIPTION 836825 COVER TOP HINGE I&W 817818P SCREW M5X20 HEX PH ST TV (PKT 10) 836834 BRACKET HINGE I&W RH ASSY 837276 SUPPORT HINGE TOP RIGHT 883948 PLUG TAPPED HOLE SILVER 883947 TRIM CORNER SILVER 836806 SHELF GL PC 635 ASSY SC 836567 PLUG TRIM SHELF RH Includes...
  • Page 14 22274-B CABINET COMPONENTS...
  • Page 15 22274-B CABINET COMPONENTS PART DESCRIPTION 836512 TRAY 635 836585 SKID TRAY RH 836586 SKID TRAY LH 836517 WHEEL & CHASSIS ASSEMBLY (PKT 2) 814928 RETAINER & SLIDE 680 RH ASSY Includes RETAINER SLIDE PC B RH 814912 SLIDE 305 RH ASSEMBLY Includes 836520 CLIP SLIDE Includes...

  • Page 16: Icemaker Components And Ice Bin

    22274-B ICEMAKER COMPONENTS AND ICE BIN...

  • Page 17: Icemaker Components And Ice Bin

    22274-B ICEMAKER COMPONENTS AND ICE BIN PART DESCRIPTION 836929 SCOOP ICE 836886 BIN AND SCOOP ASSEMBLY 836928 BIN ICE Includes 836929 SCOOP Includes 836936 SPIGOT FILL ICE MAKER 836915 HOUSING ICE MAKER 836884 ICE MAKER ASSEMBLY 836907 TRAY ICE AUTO Includes 836910 LEVER GEAR BOX ICE Includes...

  • Page 18: Fan, Covers And Evaporator Assemblies

    22274-B FAN, COVERS AND EVAPORATOR ASSEMBLIES...
  • Page 19 22274-B FAN, COVERS AND EVAPORATOR ASSEMBLIES PART DESCRIPTION 814446 CHASSIS EVAP B 880423 DEFLECTOR CHASSIS HTR B 635 P4 814703P EVAP ASSY 635B 230V Includes EVAPORATOR FINNED 635 818971 HEATER DEFROST 230V 636 Includes 813992 CLIP ACTIVE SMART BAFFLE Includes 814426 CLIP EVAP BAFFLE 60MM Includes 814446 CHASSIS EVAP B...

  • Page 20: Water Tank And Duct Covers

    22274-B WATER TANK AND DUCT COVERS...
  • Page 21 22274-B WATER TANK AND DUCT COVERS PART DESCRIPTION 836849 COVER DUCT TOP WATER Includes TAPE FOAM 440X6X3 S/CELL P3 836846 TANK DISPENSER ASSEMBLY Includes CAP TANK DISPENSER Includes BASE TANK DISPENSER Includes BAFFLE TANK DISPENSER 836838 TUBE WATER-DOOR 1/4” OD WHITE 837162 TUBE WATER TANK INLET 5/16”...

  • Page 22: Active Smart St4 Terminals Plugs & Sockets

    22274-B ACTIVE SMART ST4 TERMINALS PLUGS & SOCKETS...
  • Page 23 22274-B ACTIVE SMART ST4 TERMINALS PLUGS & SOCKETS PART DESCRIPTION 881595 SOCKET 16-22AWG 50597-8100 MLX 881596 SOCKET 20-26AWG 50598-8100 MLX 881597 PIN 16-22AWG 50599-8100 MLX 881598 PIN 20-26AWG 50600-8100 MLX 881592 CAP FEMALE 51139-0200 MLX 881593 PLUG MALE 51138-0200 MLX 881594 RETAINER 51140-0205 MLX 881588...

  • Page 24: Compressor, Ancillary Components & Control Module

    22274-B COMPRESSOR, ANCILLARY COMPONENTS & CONTROL MODULE...
  • Page 25 22274-B COMPRESSOR, ANCILLARY COMPONENTS & CONTROL MODULE PART DESCRIPTION 874881 PANEL BACK & CONDENSER ASSY 814879 TRAY WATER EVAP TOP HAT 207216P COMPR MAT DHS73C10RAW 220-240V 50HZ Includes COMPRESSOR DHS73C10RAW s 207223 RELAY-OVERLOAD MAT WS2104 DHS73 Include Includes OVERLOAD MAT 222NFBYY DHS73 207227 COVER PROTECTOR MAT DHS-230V Includes 814809 CAPACITOR RUN 4uF 450VAC RAST5 P2...

  • Page 26: Notes

    22274-B NOTES...

  • Page 27: Refrigeration Abbreviation Key

    22274-B REFRIGERATION ABBREVIATION KEY 10 WATTS 12 VOLTS “B” SERIES CABINET CHARCOAL COLOUR DIRECT CURRENT DEFROST DK GY DARK GREY F&P FISHER & PAYKEL FREEZER COMPARTMENT GLASS HUMIDITY COMPARTMENT HUMIDITY CONTROL LID HOT STAMPED I & W ICE & WATER LEFT HAND LEFT HAND BOTTOM LEFT HAND TOP...
