Summary of Contents for Ready Access AA300

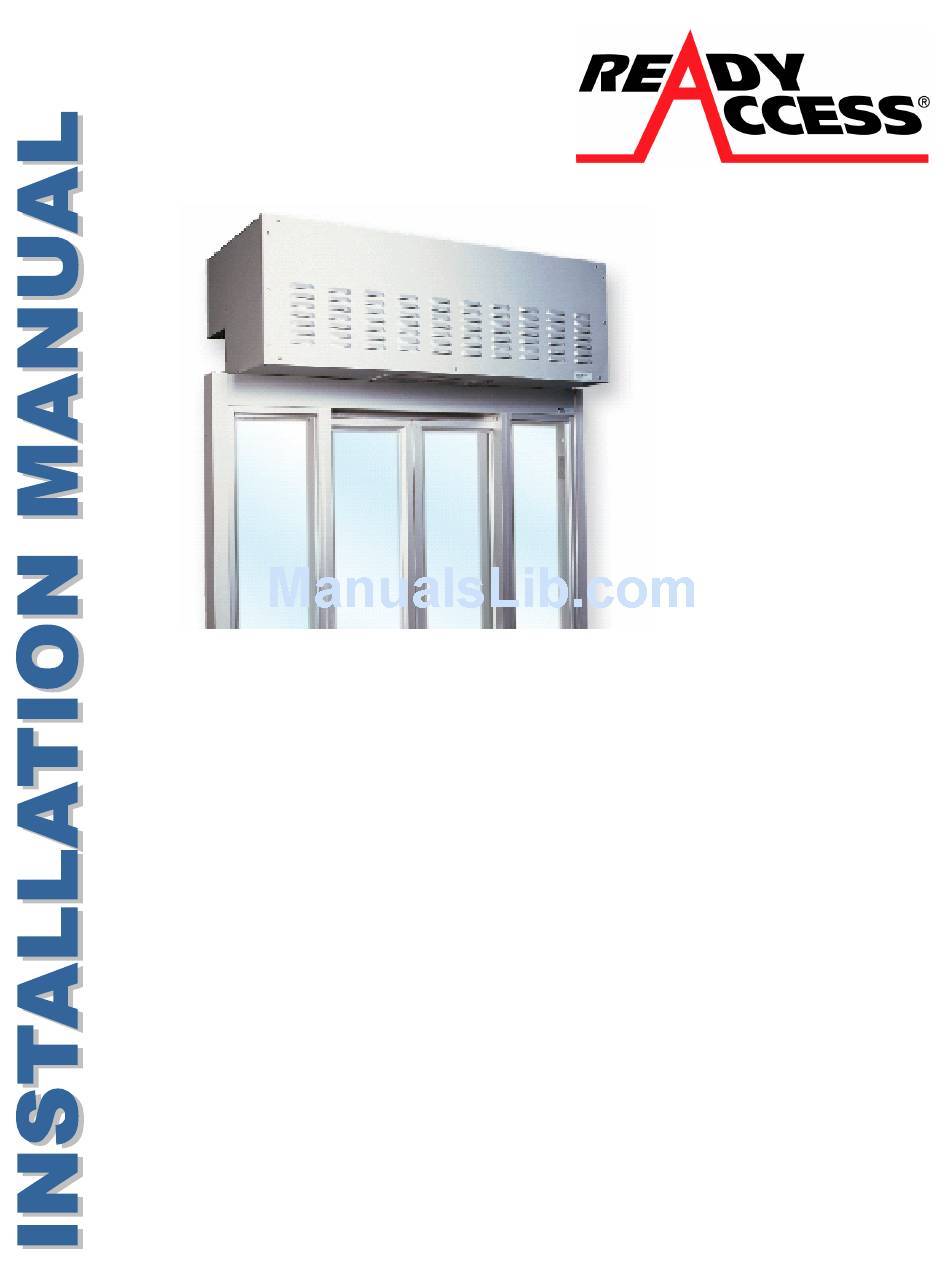

- Page 1 AA300 Access Air 300 Heated Air Curtain...
-
Page 2: Table Of Contents
TABLE OF CONTENT Topic Page Disclaimer Serial Number Identification Contact Sheet Introduction Product Information Description Specifications Dimensions Safety Information Installation Procedures Physical Installation Electrical Installation Operations Control Identification and Operations Modes of Operation Maintenance Maintenance Schedule Daily Monthly Yearly Service Troubleshooting Guide (Cause and Effect) Schematics... -
Page 3: Disclaimer
DISCLAIMER Ready Access Disclaims any Liability for any damage or harm caused to the AA300 Air Curtain, It’s Operator or any other equipment however caused if the AA300 Air Curtain is repaired or serviced by anyone other than an authorized service engineer or Contrary to the manufacturers written instruction contained herein. -
Page 4: Introduction
Reduces Drive-Thru operation expenses by diminishing employee turnover. Unique Design The AA300 Air Curtain System is the only system on the market today that offers an outside and inside heated airflow. It is designed for use with any flush mount window. -
Page 5: Specifications
Heater Actual Dimensions Weight Number Watts Unit Velocity In Inches In Shipping International Amps W x H x D Carton AA300 208/240 220/240 7100 W 32 A 600/800 See Below 60 lbs 60Hz 50/60 Hz Single Single Nozzle Phase Phase Dimensions 47-1/2"... -
Page 6: Installation Procedures
Installation Procedures PHYSICAL INSTALLATION Before you begin installing your Ready Access Air Curtain, you must determine what type of installation will be required. Wood Frame, Masonry Framing, etc. See the illustration below to determine your rough opening size and mounting. -
Page 7: Electrical Installation
Electrical Installation All power must be connected and wired by a qualified electrician and must be in compliance with all state and local codes. Terminal Block AC Input Match wires Color for Color The incoming AC power line must be connected to the terminal block located in tray. (Per Standard electrical code.) The green “grounding”... -
Page 8: Control Identification And Operations
If the AA300 does not operate correctly, go to the troubleshooting guide in this manual. If the AA300 still do not operate properly, then call Ready Access at 1-800-621-5045... -
Page 9: Maintenance
NOTE: Do NOT use Grease or Oils. Do NOT lubricate the motor clutch assembly. Semi Annual (6 Months) Check all electrical and mechanical parts for proper operations YEARLY Have a service technician come in and perform a maintenance check on the unit. IF NEEDED, CONTACT YOUR READY ACCESS SERVICE AGENT FOR SERVICE. -
Page 10: Service
SERVICE Probable Cause Resolution Issue Both Heaters Inoperable. No power to the unit. Check / Reset the main circuit breaker or switch. Switches do not illuminate. Fuse 1 and/or 2 is blown. Replace the blown fuse/s. Defective power supply. Replace the power supply. Power supply output is shorted. - Page 12 Ready Access, 1815 Arthur Drive, West Chicago, Illinois 60185, Tel: 630-876-7766, Tel: 800-621-5045 Fax: 630-876-7767, Email: ready@ready-access.com, Website: www.ready-access.com 11/05 AA300 Service Manual 1...
