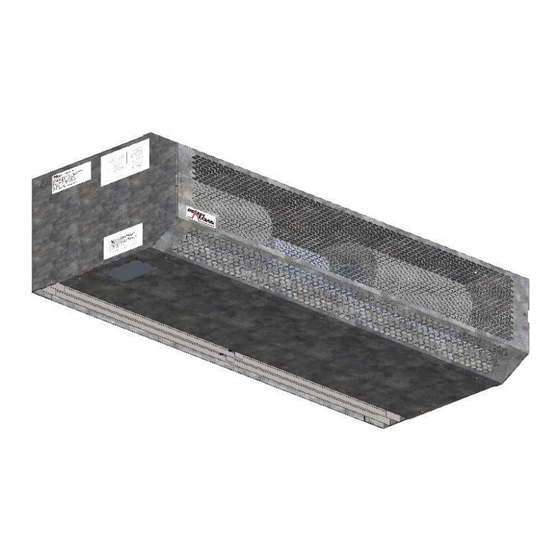

SANITATION ENTRY AIR CURTAIN RAC-1-36 AND RAC-1-48
INSTALLATION, OPERATIONAL, SERVICE MANUAL AND SAFETY INSTRUCTIONS
CONFORMS TO UL STD 507, CERTIFIED TO CSA C22.2 #113
Mount at a maximum of 7 feet above the floor on interior of building.
RAC-1-36 models are blower only models, without heater, for a maximum 36" wide opening.
RAC-1-48 models are blower only models, without heater, for a maximum 48" wide opening.
Read and save these instructions. Read carefully and completely before attempting to install or operate
this device. Failure to comply with these instructions could result in injury, damage to the unit or
installation site.
NOTICE:
Indicates an instruction which, if not followed, could result in damage to product or
property or poor product performance.
WARNING:
moderate injury.
TABLE OF CONTENTS
1. INTRODUCTION
2. SAFETY INFORMATION
READY ACCESS INC. 1815 ARTHUR DRIVE WEST CHICAGO 60185
*FOR COMMERCIAL OR INDUSTRIAL USE ONLY
NSF-37 CERTIFIED, ETL SANITATION LISTED
FOR CUSTOMER ENTRY AIR CURTAIN,
Indicates an instruction which, if not followed, could result in minor or
www.ready-access.com
email: ready@ready-access.com
800-621-5045
1
Advertisement
Related Manuals for Ready Access RAC-1-36
Summary of Contents for Ready Access RAC-1-36
- Page 1 Mount at a maximum of 7 feet above the floor on interior of building. RAC-1-36 models are blower only models, without heater, for a maximum 36” wide opening. RAC-1-48 models are blower only models, without heater, for a maximum 48” wide opening.
-
Page 2: Installation
Mount up to 7 feet above the floor on interior of building. RAC-1-36 models are blower only models, without heater, for a maximum 36” wide opening. RAC-1-48 models are blower only models, without heater, for a maximum 48” wide opening. - Page 3 Mount to wall or ceiling using QTY 4 5/16” bolts or threaded rod. MOUNT 2” INWARD OF DOOR OPENING READY ACCESS INC. 1815 ARTHUR DRIVE WEST CHICAGO 60185 800-621-5045 www.ready-access.com email: ready@ready-access.com...
- Page 4 TO ACHIEVE MAXIMUM AIR FLOW IN THE DESIRED DIRECTION adjust air vane to direct air outward towards outside environment at an angle of 10-15 DEGREES. Use pliers or adjustable wrench to rotate air vane. READY ACCESS INC. 1815 ARTHUR DRIVE WEST CHICAGO 60185 800-621-5045 www.ready-access.com...
-
Page 5: Maintenance
Gently wipe debris from blower wheel. Be careful to not deform blower wheel vanes. Damage to blower wheel can cause excessive noise or failure of the blower wheel. Reconnect power at power source. READY ACCESS INC. 1815 ARTHUR DRIVE WEST CHICAGO 60185 800-621-5045 www.ready-access.com... -
Page 6: Troubleshooting
“play”. rumbling Damaged blower wheel Check and tighten blower coupling Worn bearings set screw. Blower coupling loose, blower not spinning with motor READY ACCESS INC. 1815 ARTHUR DRIVE WEST CHICAGO 60185 800-621-5045 www.ready-access.com email: ready@ready-access.com...
