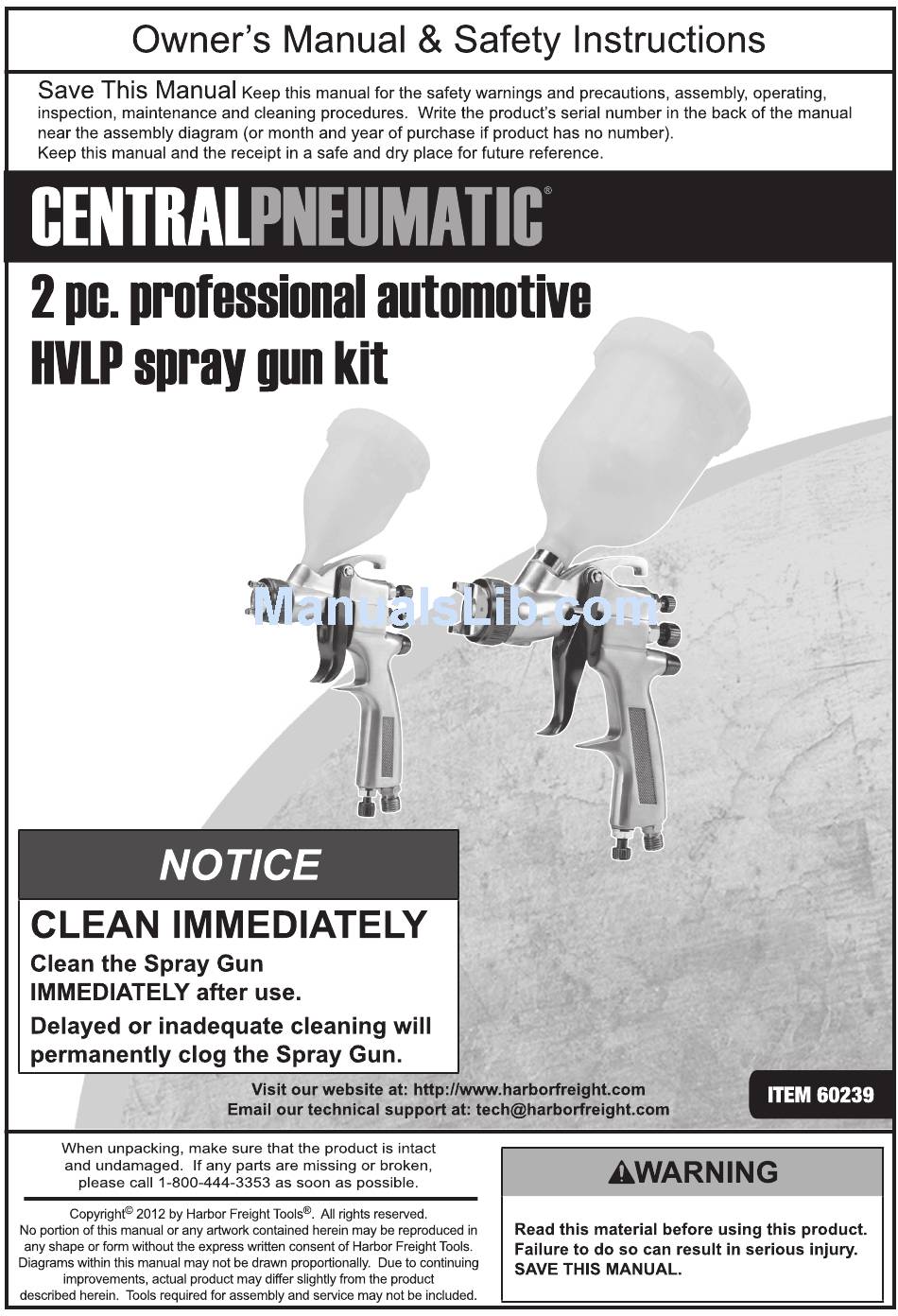

Harbor Freight Tools 60239 Owner's Manual & Safety Instructions

2 pc. professional automotive hvlp spray gun kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60239 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harbor Freight Tools 60239

Summary of Contents for Harbor Freight Tools 60239

  • Page 2: Table Of Contents

    Distractions are able to result in fire, and injury to persons. the loss of control of the tool. Page 2 For technical questions, please call 1-800-444-3353. Item 60239...

  • Page 3: Personal Safety

    Use only lubricants supplied with the by qualified repair personnel. tool or specified by the manufacturer. b. When servicing a tool, use only identical replacement parts. Use only authorized parts. Item 60239 For technical questions, please call 1-800-444-3353. Page 3...

  • Page 4: Air Source

    Maintain a distance of at least solvents. Contact the solvent or coating 25 feet from the air compressor. If possible, manufacturer as needed regarding locate the air compressor in a separate room. potential chemical reactions. Page 4 For technical questions, please call 1-800-444-3353. Item 60239...

  • Page 5: Specifications

    30  –   4 0 PSI Maximum Air Pressure 40 PSI Air Consumption 9 CFM @ 40 PSI 12 CFM @ 40 PSI Cup Capacity 4.2 fl. oz. 20 fl. oz. Air Inlet 1/4"–18 NPS Item 60239 For technical questions, please call 1-800-444-3353. Page 5...

  • Page 6: Setup

    5. Turn on the air compressor according to more efficient, but are not required. the manufacturer’s directions and allow it to build up pressure until it cycles off. Page 6 For technical questions, please call 1-800-444-3353. Item 60239...
  • Page 7 7. Inspect the air connections for leaks. measure to attempt to discharge the tool in a Repair any leaks found. safe fashion after disconnecting to ensure that the tool is disconnected and unpowered. Item 60239 For technical questions, please call 1-800-444-3353. Page 7...
  • Page 8 NOTICE Clean the Spray Gun IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Spray Gun. Page 8 For technical questions, please call 1-800-444-3353. Item 60239...
  • Page 9 Wrench Soft Brush Round Bristle Brush 1.8 mm Additional Nozzle Flat Bristle Brush 20 oz. Cup 1.8 mm Additional Needle 4.2 oz. Cup Large Spray Gun Case Detail Spray Gun Item 60239 For technical questions, please call 1-800-444-3353. Page 9...
  • Page 10 Filling Do not exceed maximum air pressure. Note: Proper paint mixture is essential. Follow the manufacturer’s directions. Most paints will spray easily if they are thinned properly. Page 10 For technical questions, please call 1-800-444-3353. Item 60239...
  • Page 11 Air Knob. Note: Change nozzle and needle size according to the thickness and type of paint being used. Generally, larger diameter nozzles are more suitable for thicker paints. Item 60239 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: Spraying Technique

    3. Using two hands, one to steady the Cup after EVERY use, according to and the other to operate the Spray Gun, instructions on the following pages. aim Nozzle at the workpiece. Page 12 For technical questions, please call 1-800-444-3353. Item 60239...

  • Page 13: Maintenance

    • damaged air supply hose • misalignment or binding of moving parts • cracked or broken parts • clogged nozzle • any other condition that may affect its safe operation Item 60239 For technical questions, please call 1-800-444-3353. Page 13...
  • Page 14 Air Supply Maintenance Every day, perform maintenance on the air supply according to the component manufacturers’ instructions. Storage Store in a dry, secure area out of reach of children. Page 14 For technical questions, please call 1-800-444-3353. Item 60239...
  • Page 15 Nozzle are plugged. left only 3. Damaged Needle. 3. Have qualified technician replace Needle. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service. Item 60239 For technical questions, please call 1-800-444-3353. Page 15...
  • Page 16 4. Worn/damaged air valve/seat. 4. Replace air valve. 5. Bent valve stem. 5. Replace valve stem. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service. Page 16 For technical questions, please call 1-800-444-3353. Item 60239...
  • Page 17 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Item 60239 For technical questions, please call 1-800-444-3353. Page 17...
  • Page 18 25A Trigger Stud Fluid Needle Sleeve 26A Gasket 12A Pattern Adjustment Knob 27A Trigger 13A Fluid Needle 28A Nut 14A Fluid Needle Spring 29A Gasket 15A Fluid Control Knob 25A 24A Page 18 For technical questions, please call 1-800-444-3353. Item 60239...
  • Page 19 Hanger Air Inlet Gasket Air Control Knob Fluid Needle Sleeve E-Ring Pattern Adjustment Knob Trigger Stud Fluid Needle Gasket Fluid Needle Spring Trigger Fluid Control Knob Valve Sealing Gasket Gasket Item 60239 For technical questions, please call 1-800-444-3353. Page 19...

  • Page 20: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
