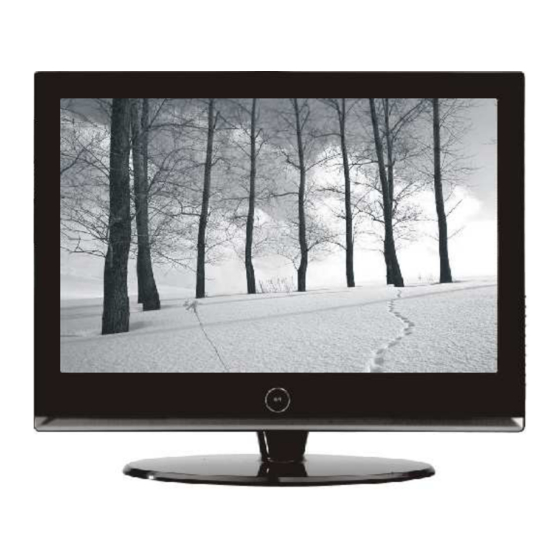

- Page 1 22″ TFT LCD TV & DVD COMBO TFD-2201 Instruction Manual...
-
Page 2: Dear Customers
Dear Customers Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend that you carefully read the safety and operation instructions before operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your TFT-LCD TV/Monitor and in this manual. Safety information __________________________________________________ Note: Before connecting the AC power cord to the DC adapter outlet, make sure... -
Page 3: Power Cord Protection
Precautions ________________________________________________________ Please read the below precautions carefully before operating the unit. Power cord protection: Never use your LCD TV/Monitor if the power cord has been damaged. Do not put anything on the power cord, and keep the power cord away from where people can easily trip over it. - Page 4 Keep away from water/magnetic fields: Do not expose the LCD TV/Monitor to rain or use it near water source. If the LCD TV/Monitor got wet, unplug it and contact an authorized dealer immediately. Do not clean the front panel with Ketone-type materials, ethyl alcohol, toluene, acid, methyl, or chloride since they may cause damage on panel.
- Page 5 Unpacking ____________________________________________ Please make sure that the following items are included with your LCD TV/Monitor. If any item is missing, please contact your dealer. TFT LCD TV/ Monitor Remote control Operation manual DC adapter Power cord RCA cable...
-
Page 6: Front View
View of the TV/Monitor Front view Back view 17 18 19 20 21 Remote sensor 12. DVD disc slot in Power button & indication light 13. DC input jack/Car cord input jack DVD play/pause button 14. SCART jack DVD stop playing button 15. - Page 7 II. Remote control reference guide (1) Remote control function 1. DVD open/close 2. Video out mode button 3. SLEEP button 4. 0-9 Numerical button 5. Program play button 6. Volume down button 7. Unit system menu button 8. Display status message button 9.
- Page 8 ● TELETEXT BUTTONS (If TV has teletext function. You may enjoy it by using these buttons) Name Function Name Function To select TXT/TV mode To show the sub page Enter into TXT list mode Keep the page display Display the hidden INDEX Menu display information...
- Page 9 batteries into the fire. 3. Always replace both batteries at the same time. Never mix new and old batteries or batteries of a different type. 4. If you don’t intend to use the remote controller for an extended period, remove the batteries to prevent possible leakage and corrosion. Notes: Do not drop, apply shock or step on the remote control.
- Page 10 Use 75Ωcoaxial cable plug or 300-75Ωimpedance converter to plug in antenna input terminal on the rear of the cabinet. VHF antenna UHF antenna Input terminal of 75ΩCo-axis cable Mixer antenna Co-axis antenna plug Antenna in jack Ω Co-axis cable Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper AUDIO input jacks ‘L’...
- Page 11 color . Press the POWER or STANDBY button again to switch off the power, and the light will be in red color. The Picture setup, Sound setup, Previous channel can be memorized before you switch off the TV/Monitor. The TV/Monitor will re-start under the previous state when you switch on it again.
- Page 12 Select the suitable input to pickup the AV signal. Press P+ or P- button to select source, then press SVideo V + button to confirm your selection. Or press DVD Button on the remote control to select DVD source SCART directly.
-
Page 13: Menu Setting And Adjustment
The unit has a VGA jack for a normal computer. Connect the monitor with a PC by this jack and the unit can be used as the monitor of the PC. V. Menu setting and adjustment PICTURE SETTING Press the MENU button on the remote control, there will be a menu displayed on the screen as below: On this menu, the Picture setting icon of is in red frame. -
Page 14: Sound Setting
SOUND SETTING Press the MENU button on the remote control, and then press the P- button to select the Sound setting, the Menu will be shown as below: On this menu, the Sound setting icon of is in red frame. (1). - Page 15 On this menu, the Channel setting icon of is in red frame. (1). Auto Tune Use the V+ button firstly, the cursor will be on the line of “Auto Tune ”. And then, press the V+ button again, a menu will be displayed as followed: As shown on the menu, the TV will automatically search stations.
-
Page 16: Function Setting
(4).Skip Press the P- or P+ button to select the skip setting, and press the V- or V+ button repeatedly to select On or Off. Setting to “On”, the channel will not be selected by Channel Up/Down keys. (5).Sound SYS. Press the P- or P+ button to select the Sound SYS. - Page 17 Press the MENU button on the remote control, and then press the P- button to select the Function setting, the Menu will be shown as below: On this menu, the Function setting icon of is in red frame. (1).Language Use the V+ button firstly, the cursor will be on the line of “Language English ”.
- Page 18 Press the V+ or V - button repeatedly, you could select User, Normal, Warm or Cool according to your request. Note: Only the item of User-R , User-G or User-B could be adjusted from 0 ~100 in the Color Temp User (5).DNR Press the V+ or V - button repeatedly, you could select Strong, Normal or...
-
Page 19: Dvd Player Operation
On this menu, the PC setting icon of is in red frame. You can use the P- or P+ button to select the item of Clock, Phase, H-Position or V-Position. And then use the V- or V+ button to adjust the value of each item respectively from 0~100. -
Page 20: Fast Forward/Rewind
If press the STOP button once, the DVD video player is stopped. At this point, press the ENTER/PLAY button to re-start the disc from the same point. If press the STOP button twice, the disc will stop completely. FAST FORWARD/ REWIND Press the button once, the disc will be played forward or backward. -
Page 21: Repeat A Specific Section
REPEAT A SPECIFIC SECTION You could repeat section by REPEAT A-B button on the remote control. Firstly press the REPEAT A-B button at the beginning of the section you want, and press it again at the end of the section. So the unit will repeat to play from A to B. -
Page 22: Playing In A Favorite Order
to show the current information available, you will get the information like Title Elapsed; Title Remain; Ch. Elapsed; Ch. Remain; Display Off and so Notes: For different discs, DISPLAY button may be have different functions. j. PLAYING IN A FAVORITE ORDER Combine your favorite titles, chapters or tracks and play them in your favorite order. -
Page 23: Selecting Subtitles
the same point. If press the STOP button twice, program playing will be cancelled. k. SELECTING THE CAMERA ANGLES SETTING This DVD video player allows you to select from several different angles. Press the ANGLE button while playing back a scene recorded with multiple angles. -
Page 24: Displaying The Setup Menu Screen
m. MP3 OPERATION 1. To play MP3 disc you must view through your television. Insert an MP3 CD, the DVD video player will initialize the disc and the directory (folder) will be shown in an MP3 MENU on screen. Press the button twice to select and highlight the PLAY MODE. -
Page 25: Audio Setup
TV Display: you could choose the suitable type for your TV. Angle Mark: you could choose ON or OFF OSD language: you could choose your favorite language displayed on the TV screen. Captions: you could choose ON or OFF Screen saver: if screen saver on, there will be saver display when there is no operation for several minutes. -
Page 26: Password Setup
a. disc stop playing completely or b. disc is opened or c. Without disc in the disc mechanism. 4．PASSWORD SETUP Press ENTER/PLAY button until there is a menu displayed as followed:... -
Page 27: Other Operation
Now you could enter preset old password: 1234 by numeric button firstly, then enter the new password that you want to set. And at last press ENTER/PLAY button again to confirm the new password that you have set VII. Other Operation a. - Page 28 Can’t operate External interference with the Pull out the plug and insert system CPU. again. b. TV/Monitor Symptom Remedy 1. Check whether the power plug is connected to the power No power supply. 2. Pull out the plug and wait for 60 seconds, and then insert the power plug again and switch on the TV/monitor.
- Page 29 Screen glittering Reset the computer and enter into the safety mode, then under PC mode select the appropriate screen type by consulting the operation manual. Screen traversed Maybe the phase is not appropriate. Enter into the PC under PC mode setting and change to correct level.
-
Page 30: Maintenance
Please keep the discs away from direct sunlight, high temperature and humidity. Do not stick labels onto discs. Do not scratch the surface of discs. X. Maintenance 1). Cleaning the cabinet Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives. -
Page 31: Specifications
XI. Specifications Screen size, visible 22 inch Screen format 16:10 Resolution 1680 * 1050 Minimum contrast ratio 700:1 Minimum brightness 300 cd/m² Display colors 16.7M Minimum viewing angle 170° (horizontal) / 160° (ver tical) Maximum response Time 5 ms Minimum lifetime background light 50,000 hours Video color systems PAL/NTSC3.58/NTSC4.43/SECAM... -
Page 32: Display Modes
Power Consumption Max 60W XII. Display modes Resolution Horizontal Freq. (KHz) Vertical Freq. (Hz) 720x400 31.5 640x400 31.5 640x480(VGA) 31.5 640x480(VGA) 37.9 640x480(VGA) 37.5 800x600(SVGA) 37.9 800x600(SVGA) 47.2 800x600(SVGA) 46.9 1024x768(XGA) 48.4 1024x768(XGA) 56.5 1024x768(XGA) 60.0 1280x1024(SXGA) 63.5 1280x1024(SXGA) 80.0 Modes, which are not listed in the above table, may not be supported. - Page 33 your computer’s power management function. Note: Design and specifications are subject to change without notice. “ ELIMINATION OF RESIDUES OF ELECTRIC AND ELECTRONIC APPLIANCES BY CONSUMERS RESIDENT IN THE EUROPEAN UNION.” This symbol on the product or in its packaging indicates that it must not be disposed off with other household waste produced in the user`s residence.
