DOD VoFX Owner's Manual

Vocal fx processor/mic pre
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Guide
Visit DOD on the World Wide Web at http://www.dod.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VoFX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DOD VoFX

Summary of Contents for DOD VoFX

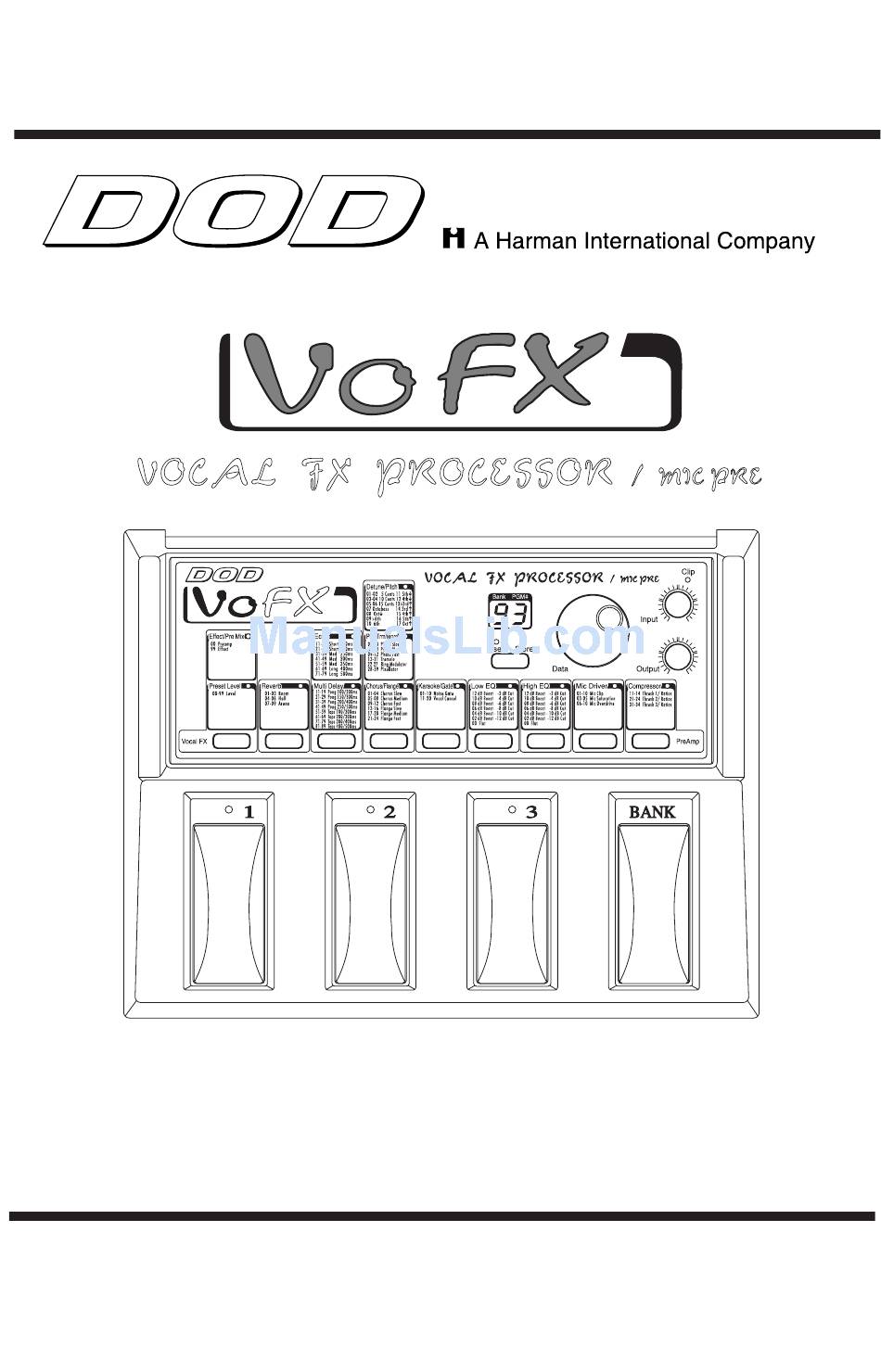

  • Page 1 Owner’s Guide Visit DOD on the World Wide Web at http://www.dod.com...

  • Page 2: Warranty

    6. The foregoing is in lieu of all other warranties, expressed or implied, and DOD neither assumes nor authorizes any person to assume for it any obligation or liability in connection with the sale of this product. In no event shall DOD or its dealers be liable for special or conse- quential damages or from any delay in the performance of this warranty due to causes beyond their control.

  • Page 3: Quick Start Guide And Factory Program List

    13. With the VoFX, you have the ability to access several different kinds of effects at the same time. Some types of effects are better suited to a specific style of song. We have already done all the hard work for you and designed effect Programs that have the most popular types of effects grouped together in Banks.

  • Page 4: Table Of Contents

    XLR low impedance input ..........................5 XLR Left / Mono Out ............................5 High Impedance Left Out ..........................5 High Impedance Right Out..........................5 Power Adapter Input............................5 SECTION 2 - PROGRAMMING THE VoFX ....................6 Selecting Programs ............................6 Using the Footswitches ............................6 Editing Programs..............................7 Storing Programs..............................8 Grouping Programs............................9...

  • Page 5: Section 1 - Getting Started

    Supplying Power The VoFX, is designed to “Plug in and Go”, so connect the included power supply and the VofX will power up and be ready to serve. It is always a good ideas to follow some electrical safety standards, we have listed them below to keep things running smooth.

  • Page 6: Program And Bank Selector Footswitches

    ) PROGRAM AND BANK SELECTOR FOOTSWITCHES- These footswitches give you access to the User Programs in the VoFX and allow you to change User Banks. 2) EFFECT GROUPS - The VoFX's effects are divided into 13 groups and labeled on the front panel.

  • Page 7: Rear Panel Connections

    6) HIGH IMPEDANCE RIGHT OUT - This output jack is used for the insertion of a High impedance 1/4 cord. 7) AC POWER INPUT - Connect the supplied AC power adapter to this jack. Use only the adapter supplied with the VoFX. Use of any other adapter may damage the unit.

  • Page 8: Section 2 - Programming The Vofx

    Bank selector, and the remaining three are Program selectors. A Bank is a group of three Programs. There are 10 User Banks in the VoFX, each with 3 Programs for a total of 30 User Programs. There are also 30 Factory Programs that can be selected using the Data wheel only.

  • Page 9: Editing Programs

    • by turning the Data wheel in Performance mode. To select Programs using the footswitches: 1) After you power up, the VoFX defaults to Performance mode. Select a Bank by pressing the Bank selector footswitch. The display shows the selected bank number on the left side of the display and a dash on the right.

  • Page 10: Storing Programs

    Store LED lights. That's it! You can manipulate any effect setting in the VoFX by pressing the associated Effect selector button on the front panel and turning the Data wheel.

  • Page 11: Grouping Programs

    User Program section. Grouping Programs If you have Programs that you like and would like to keep them together in the same Bank, the VoFX will allow you to store any program in any bank To perform this function, simply move to the desired program, either using the Data Wheel or the Footswitches, and then press the <Store>...

  • Page 12: The Effects Of The Vofx

    EQUALIZERS The 2-band Equalizer in the VoFX offers LOW Eq (1K Hz) and HIGH eq (3K Hz) frequencies. Both of the EQs are adjustable in 2db increments. These can be adjusted from -12dB cut, to 12dB boost. CHORUS A chorus works by splitting the input signal into 2 paths.

  • Page 13: Phasers

    The Tremolo modulates the level of the signal. This effect was offered in the vintage amplifiers of yesterday, but now it has become more popular than ever. The VOFX offers 9 tremolo speeds ranging from 2.0Hz - 9.0Hz RING MODULATOR The Ring Modulator produces mathematically related sounds rather than harmonically related sounds.

  • Page 14: Pong Delays

    NOISE GATE The VoFX offers noise gating capabilities. The Noise gate is simple to use and the settings are as follows: Noise Gates 1-7 offer gating with a stronger threshold the high the gate number. Noise gates 7-10, have a gate swell.

  • Page 15: Karaoke

    KARAOKE There is no need to hire a whole band anymore with VoFX Karaoke function. The VoFX offers you the unique ability to remove unwanted vocals in recordings and then play the rest of the music back through the unit on most CDs and Tapes.

  • Page 16: Declaration Of Conformity

    President of DOD 8760 S. Sandy Parkway Sandy, Utah 84070, USA Effective: April 5th, 1997 European Contact: Your Local DOD Sales and Service Office or International Sales Office 3 Overlook Drive #4 Amherst, New Hampshire 03031, USA Tel (603) 672-4244...
