Yamaha MT120 Operation Manual

Multitrack cassette recorder
Hide thumbs Also See for MT120:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
YAMAHA
®
AUTHORIZED
PRODUCT MANUAL
MULTITRACK CASSETTE RECORDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT120 and is the answer not in the manual?

Questions and answers

Related Manuals for Yamaha MT120

Summary of Contents for Yamaha MT120

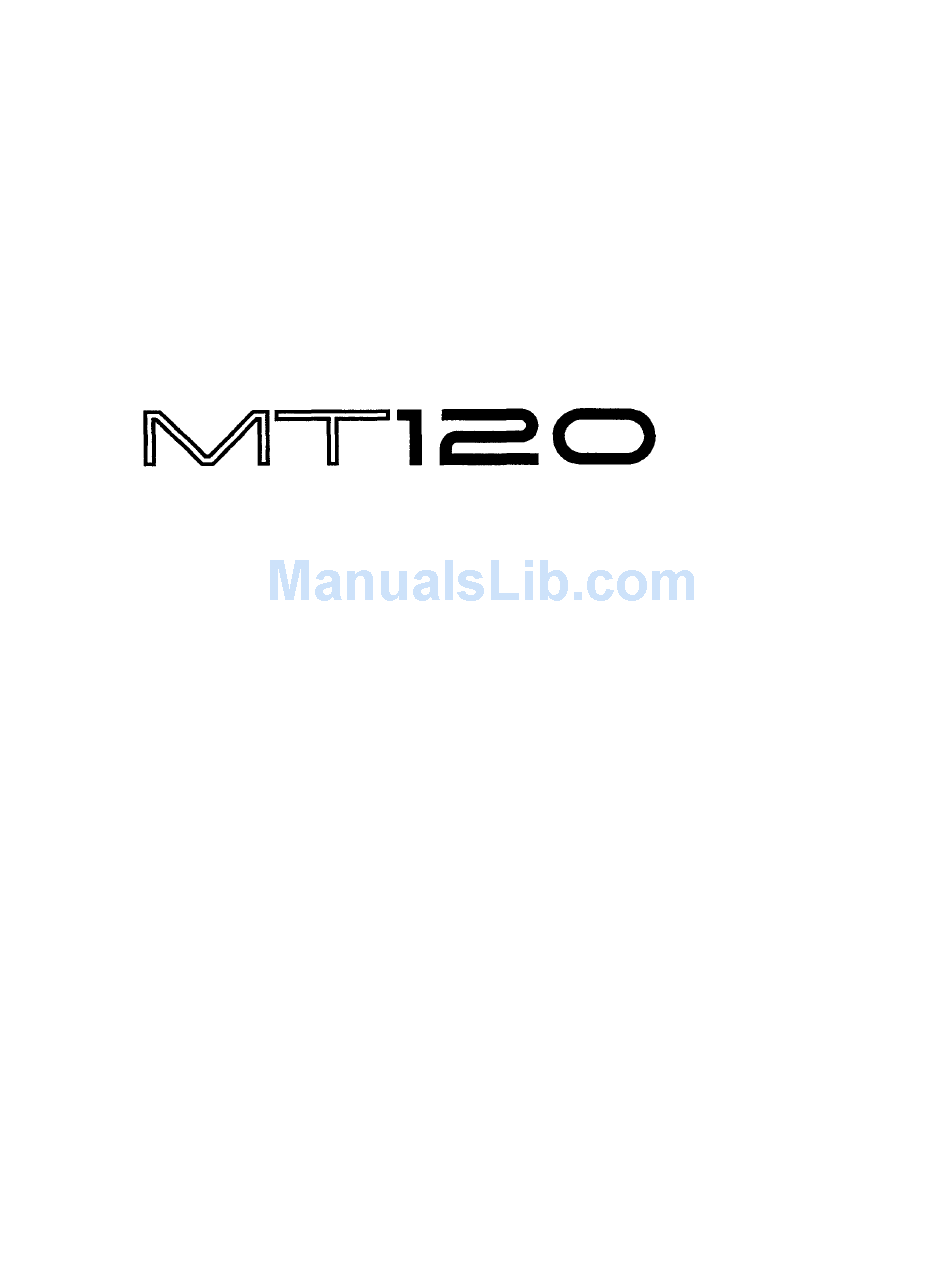

  • Page 1 YAMAHA ® AUTHORIZED PRODUCT MANUAL MULTITRACK CASSETTE RECORDER...
  • Page 2 YAMAHA MULTITRACK CASSETTE RECORDER OPERATION MANUAL...
  • Page 3 l l Explanation of Graphical Symbols The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenace (servicing) instructions in the literature accompanying the product. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of uninsulated “dangerous voltage”...
  • Page 4 Yamaha to perform such service. IMPORTANT MESSAGE: Yamaha strives to produce products that are both user safe and environmentally “friendly”. We sincerely believe that our products meet these goals. However, in keeping with both the spirit and the letter of various statutes we have included the messages shown above and others in various locations in this manual.

  • Page 5: Table Of Contents

    MT120 is the ideal choice for recording bands or layering tracks at home. And, because it’s a YAMAHA, you know that the MT120 will give you the very finest sound quality and overall performance available.

  • Page 6: Precautions

    Strong physical shocks to the unit can cause damage. Handle it with care. To ensure consistent high performance and sound quality from your MT120, it is important to clean the head and tape path regularly (ideally before each recording ses- 3. DO NOT OPEN THE CASE OR ATTEMPT sion).

  • Page 7: The Controls And Connectors

    THE CONTROLS AND CONNECTORS — CONTROL PANEL — — F R O N T P A N E L — — R E A R P A N E L — MT120 MULTlTRACK CASSETTE RECORDER...

  • Page 8: Mt120 Controls And Their Functions

    MT120’s mixer section has four “channels.” The term “track” refers to the magnetic bands on tape used to store signals recorded by MT120’s recorder section. Since MT120 records four separate bands of audio on tape, it is a four-“track” recorder.
  • Page 9 MT120 mixer section, and thus the level of the output of a channel or track. The AUX SEND control on each signal appearing at the STEREO OUT jacks. The MAS-...
  • Page 10 “tune” material recorded on the • Indicator specificly blinking (warning indica- MT120 to match the pitch of musical instruments, or to tion): The indicator blinks twice in specific intervals. slightly lengthen or shorten the running time of a re- The foot switch is connected to the PUNCH l/O cording to meet specific timing requirements.
  • Page 11 • Indicator fast blinking: FF button or REW but- ton has been pressed during playback (CUE/ REVIEW mode). [Note] Since the MT120 uses the entire width of the • Indicator slowly blinking: Continues blinking for cassette tape to record four tracks, the cassette approximately 4 seconds after the POWER switch can only be recorded on one side.
  • Page 12 POWER LED above the LED peak meters on the the stereo output signal from the MT120 mixer section. MT120 top panel will light. Make sure that the input faders The RCA pin-type STEREO OUT jacks can be con- are set to “0” and the AUX RETURN level control is set nected to a stereo sound system for monitoring and to “MIN”...

  • Page 13: Connection Examples

    CONNECTION EXAMPLES — BASIC CONNECTIONS — * Make sure the power to all equipment is OFF when making connections. 10 MT120 MULTITRACK CASSETTE RECORDER...

  • Page 14: About Cassette Tapes

    ABOUT CASSETTE TAPES This unit is designed to be used only with Chromeposition tape, and will not work properly with Ferrichrome tape formulations. CrO2 tape (Bias: HIGH; EQ: 70µs) should be used. Also, the use tapes longer than 90 minutes (C-120, etc.) is not recommended because they exhibit poorer performance, and can be the cause of equipment failure.

  • Page 15: The Recording Process

    For details pertaining to the operation of MT120 controls, please refer to page 5, “MT120 CONTROLS AND THEIR FUNC- TIONS”. Recording with the MT120 is a very simple process. All you need is the MT120, a pair of monitor headphones, and an instrument, microphone, or other signal source.

  • Page 16: Recording The First Track

    Depending on what you are recording, you might want to record a single instrument or other source on a single track of the tape, or you might want to combine several instruments or other sources and record them on a single track. The MT120 offers two “channel-to-track assignment”...

  • Page 17: Step 2: Monitor Setup

    The MT120 allows you to monitor the material being recorded either via a pair of headphones connected to the PHONES jack or via a sound system with speakers connected to the MONITOR OUT jacks. The level appearing at the PHONES jack and MONITOR OUT jacks is controlled by the MONITOR/PHONES control.

  • Page 18: Step 3: Setting Recording Levels

    This is to ensure the best possible signal- to-noise ratio and allow plenty of plus and minus leeway 3. Press transport REC/PAUSE button, this activates MT120’s for later adjustment. If the fader setting is way off, try record circuit, and puts the transport in RECORD/PAUSE adjusting the volume control on the instrument or other mode.

  • Page 19: Overdubbing

    When MONITOR select is in the MONITOR position, it is not possible to hear input source unless MT120’s transport is in RECORD or RECORD/PAUSE. If you are not ready to actually record your overdub, and would like to hear the new input source along with previously recorded tracks, set the MONITOR select switch to the MIX position.

  • Page 20: Ping-Pong Recording

    3 tracks down onto track 4 you can also mix in a live original tracks all over again. instrument via the MT120 mixer section. That would give you 4 parts recorded on track 4 of the tape. With the 3 [Note] It is recommended that you record using the 9.5...

  • Page 21: A Ping-Pong Recording Example

    If something sounds odd, go back and MONITOR SELECT Switch repeat the ping-pong process. You can do this as many Set to MIX so you’ll only hear signals from the MT120 times as necessary until you get it right — then go on to recorder.

  • Page 22: Mixdown

    A “MIX” is created by finely balancing the four tracks to achieve just the right sound. This final balance is achieved using MT120’s mixer section and is re-recorded onto a conventional stereo tape deck. Tracks can be faded in or out as required, and refinements such as overall reverberation or equalization can be added using external signal processing equipment and MT120’s 5-band on-board GRAPHIC EQUALIZER.

  • Page 23: Using The Graphic Equalizer

    USING THE GRAPHIC EQUALIZER The MT120 has a stereo 5-band graphic equalizer built in. As the block diagram below makes clear, signals assigned to the left and right channels by the PAN control and level adjusted using the MASTER fader are sent to the equalizer. Therefore, it can be used during ping-pong recording, mixdown operation and when recording with the REC SELECT control set to “L”...

  • Page 24: Using The Tape Out Jacks

    USING THE TAPE OUT JACKS The tape out jacks can be used to feed the tape outputs to an external mixer. In mixdown, individual tracks can be processed using a signal processor, which receives signal from the TAPE OUT jack and the output of which is returned to a channel’s INPUT jack.

  • Page 25: Using The Aux Send/Return Loop

    USING THE AUX SEND/RETURN LOOP The MT120’s AUX SEND controls function like a secondary mixer that derives its input signals from the main mixer’s four channels and combines them into a mono signal which is delivered via the AUX SEND jack (refer to the diagram below). You can use the AUX SEND controls to create an “effect mix”, independent of the main mix, thus adding the required degree of...

  • Page 26: Punch-In/Out Recording

    Punch-in/out Using the REC SELECT Switches Footswitch Punch-in/out 1. With all REC SELECT switches set to OFF, start the 1. Plug a YAMAHA FC4 or FC5 (optional) footswitch into the MT120 PUNCH l/O jack. recorder running — a few measures before the section to be re-recorded begins —...

  • Page 27: Maintenance

    MAINTENANCE The MT120 recording & playback head has been precision-constructed to extremely fine tolerances in order to make high- quality 4-track recording possible. Optimum performance can only be achieved if the head surface is kept immaculately clean. Cleaning should be carried out at regular intervals — at least after every 10 hours of use Dirty heads can cause any of, or a combination of, the following problems: Recording, playback and erasure are not possible.

  • Page 28: Specifications

    SPEClFlCATlONS TAPE TRANSPORT Chrome (70 microsec. EQ) Tape Type Heads 4-channel Permalloy rec/play head 4-channel ferrite erase head 4.8 cm/sec., 9.5 cm/sec. Tape Speed Approx. ± 10% Pitch Control Wow & Flutter Less than 0.12% WRMS Approx. 110 sec., for C-60 tape Rewind Time DC servo motor Motor...

  • Page 29: Block Diagram

    BLOCK DIAGRAM...
  • Page 31 SERVICE This product is supported by YAMAHA’s worldwide network of factory trained and qualified dealer service personnel. In the event of a problem, contact your nearest YAMAHA dealer. ENTRETIEN L'entretien de cet appareil est assure par le réseau mondial YAMAHA de personnel d'entretien qualifié et formé en usine des concessionnaires.
  • Page 32 YAMAHA 9202 R4 Printed in Japan...
  • Page 33 YAMAHA Recyclable Yamaha Corporation of America 6600 Orangethorpe Avenue, P.O. Box 6600, Buena Park, CA 90622-6600 9/15 26680...
