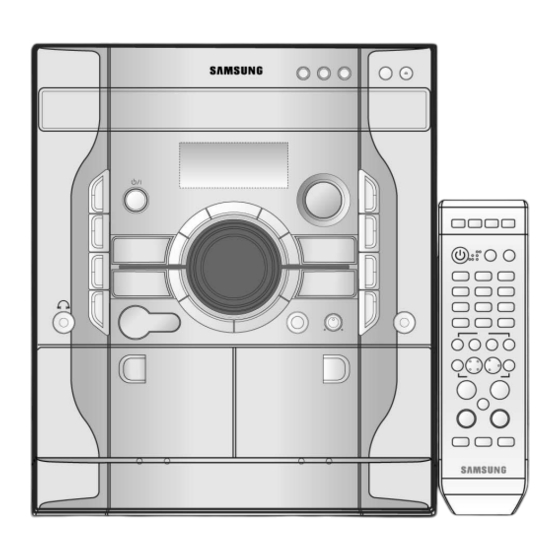

- Page 1 THREE-CD CHANGER MINI-COMPACT SYSTEM MP3-CD/WMA-CD/CD-R/RW PLAYBACK MAX-X55/X56/X57 MAX-X65/X66 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUKT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPO- SURE TO BEAM. -
Page 3: Table Of Contents
....................................2 AFETY ARNINGS NSTALLING OMPACT YSTEM Front Panel View(MAX-X55/X56/X57) ..............................4 Rear Panel View (MAX-X55)..................................4 Rear Panel View (MAX-X56/X57) ................................5 Remote Control(MAX-X55/X56/X57)................................ 5 Front Panel View(MAX-X65/X66) ................................6 Rear Panel View (MAX-X65)..................................6 Rear Panel View (MAX-X66)..................................7 Remote Control(MAX-X65/X66) ................................ -
Page 4: Front Panel View(Max-X55/X56/X57)
31. SEARCH FUNCTION BUTTONS 11 12 TUNING MODE OR STOP BUTTON 13 14 32. WINDOW DISPLAY 33. VOLUME CONTROL Rear Panel View (MAX-X55) 1. AM Aerial Connector Terminals 2. FM Aerial Connector Terminal 3. Speaker Connector Terminals 4. Voltage Selector(option) -
Page 5: Rear Panel View (Max-X56/X57)
2. FM Aerial Connector Terminal 3. Speaker Connector Terminals 4. Voltage Selector(option) All those pictures of Front panel, Rear panel and remote control are based on MODEL:MAX-X56 Remote Control(MAX-X55/X56/X57) 1. CD 2. TUNER(BAND) 3. POWER TIMER/CLOCK 5. TIMER ON/OFF 6. AI SLEEP 7. -
Page 6: Front Panel View(Max-X65/X66)
Front Panel View(MAX-X65/X66) STANDBY/ON TAPE 1/2 TAPE REVERSE MODE MP3-CD/CD FUNCTION CD REPEAT TUNER MEMORY HEADPHONE JACK CONNECTOR TUNER BAND FUNCTION SOUND MODE 10. FM MONO/STEREO 11. CASSETTE DECK 1 12. TIMER/CLOCK 13. TIMER ON/OFF 14. MIC(OPTION) 15. CASSETTE DECK 2 16 . -
Page 7: Rear Panel View (Max-X66)
Rear Panel View (MAX-X66) 1. AM Aerial Connector Terminals 2. FM Aerial Connector Terminal 3. Speaker Connector Terminals 4. Voltage Selector(option) Remote Control(MAX-X65/X66) 1. CD 2. TUNER(BAND) 3. POWER TIMER/CLOCK 5. TIMER ON/OFF 6. AI SLEEP 7. DEMO 8. MO/ST 9. -
Page 8: Where To Install Your Mini-Compact System
To achieve the correct sound quality,insert those speaker con- nector cables to the speaker connector terminals of the sys- (OPTIONAL). tem. Plug the main lead into an appropriate socket. Press the (STANDBY/ON) button to switch your mini-compact system . MAX-X55/X56/X57/X65... -
Page 9: Connecting To An External Source
Connecting the AM (MW)Aerial The AM aerial can be: MAX-X66 Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM . To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires. -
Page 10: Demo/Dimmer Function
DEMO/DIMMER function Setting the Clock Your system is equipped with a clock which allows you to All functions available on the system can be viewed on the turn your system on and off automatically. display and the display's brightness can be switched between "on"... -
Page 11: Loading And Changing Compact Discs
Loading and Changing Compact To replay the CD/MP3/WMA-CD Discs The CD disc changer can contain up to three 12 cm or 8 cm This is a player that enables the playback of audio CD, CD-R, compact discs without using an adapter. CD-RW and MP3/WMA-CD and does not possess the function that saves MP3 files. -
Page 12: Selecting A Cd In The Disc Changer
To select the MP3/WMA-CD title Selecting a CD in the Disc changer and track The CD function is automatically selected when Disc Skip is The title and track of the MP3/WMA-CD desired to listen may pushed. be selected on stopping or during playbacks. To select a specific disc, press the corresponding DISC (1, 2, 3) but- ton on the front panel or DISC SKIP on the remote control, until the required disc indicator flashes. -
Page 13: Searching For A Specific Music Passage On A Cd
Searching for a Specific Music What is WMA? Passage on a CD WMA means Windows Media Audio, the global standard for audio signal compression technology. When listening to a compact disc, you can quickly search for a specific music passage on a track. What is MP3? It is recommended that you turn the volume down before using MP3 means MPEG1 Layer 3, the global standard for audio... -
Page 14: Repeating One Or All Tracks On The Compact Discs
Repeating One or All Tracks Function to skip through 10 on the Compact Discs tracks at a time You can repeat indefinitely: Press the +10 button briefly while playing back a A specific track on a compact disc. CD and MP3/WMA-CD . The track 10 tracks after the All tracks on the compact disc selected. -
Page 15: Programming The Order Of Cd Playback
Programming the Order of CD Play- back You can decide: The order in which you listen to the tracks on the discs loaded Which tracks you do not wish to listen to You can program up to 24 tracks. You must stop the compact disc player before selecting the tracks. This feature can be combined with the Repeat function. -
Page 16: Checking Or Changing Programmed Cd Tracks
Checking or Changing Programmed CD Tracks You can check or change your selection of tracks at any time. Press once if you have started listening to the selection. Press ENTER/PRGM.. Result: The following indications are displayed: (CH = Check, 01=Program No, CH1 = Disc No, – – = Track No on the disc) If you have already programmed 24 tracks, CH is displayed instead of PR when you press ENTER/PRGM.. -
Page 17: Searching For And Storing The Radio Stations
Searching for and Storing the Radio Stations You can store up to: 15 FM stations 15 AM stations Switch the system on by pressing STANDBY/ON. Select the TUNER function by pressing TUNER BAND. Select the required frequency band by pressing TUNER BAND again on the front panel or TUNER (BAND) on the remote control. -
Page 18: Selecting A Stored Station
Selecting a Stored Station Improving Radio Reception You can improve the quality of radio reception by: Rotating the FM or AM(MW) aerial You can listen to a stored radio station as follows: Testing the positions of the FM and AM(MW) aerials before fixing them permanently Switch the system on by pressing STANDBY/ON. -
Page 19: Listening To A Cassette
TAPE1/2 button on the remote control to select the cassette to be played. Result: Depending on the Tape selected, the TAPE 1 or TAPE 2 indication is displayed. FOR MAX-X55/X56/X57 To listen to... Press ... Side A,B TAPE ( Result: The cassette starts playing. -
Page 20: Recording A Radio Program
Recording a Radio Program Tape Counter You can record a radio program of your choice. When playing a cassette in one of the cassette decks, a counter is displayed to enable you to take note of the counter You can only record on cassettes in TAPE2. value at the start of each track to start playback at the beginning of the track to which you wish to listen. -
Page 21: Timer Function
Timer Function The timer enables you to switch the system on or off at If the timer switch on and off times are identical, the word ERROR is specific times. displayed. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. -
Page 22: Mute Function
Mute Function Power Sound Function Your mini-compact system is equipped with the function of You can turn the sound off temporarily on your system. POWER SOUND mode . Example: You wish to answer a telephone call. The function of POWER SOUND mode amplifies bass and improves high key or bass twice as much for you to appreci- Press MUTE. -
Page 23: Setting The System To Switch Off Automatically
Setting the System to Switch off Connecting Headphones Automatically You can connect a set of headphones to your mini-compact system so that you can listen to music or radio programmers without disturbing other people in the room. The headphones While listening to a compact disc or a cassette, you can ø... -
Page 24: Safety Precautions
Cleaning Your Mini-Compact Safety Precautions System The following diagrams illustrate the precautions to be taken To obtain the best possible results from your mini-compact when using or moving your mini-compact system. system, you must clean the following elements regularly: The outer casing The compact disc player The cassette players (heads, rollers and drive capstans) Always unplug the system from the wall outlet:... -
Page 25: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. -
Page 26: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO AM (MW) Signal/noise ratio 40 dB Usable sensitivity 54 dB Total harmonic distortion... - Page 27 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country Customer Care Center Web Site...
