Samsung MAX-B550 Service Manual

Samsung MAX-B550 Service Manual

3 cd changer mini mini component
Hide thumbs Also See for MAX-B550:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
RTV servis Horvat
Tel:
++385-31-856-842
Tel/fax: ++385-31-856-139
Mob:
098-788-319
www.rtv-horvat-dj.hr
3 CD CHANGER
MINI MINI COMPONENT
MAX-B550
MAX-B570
MAX-B555
MAX-ZB550

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAX-B550 and is the answer not in the manual?

Questions and answers

ngurah artawan
January 20, 2025

protect problem

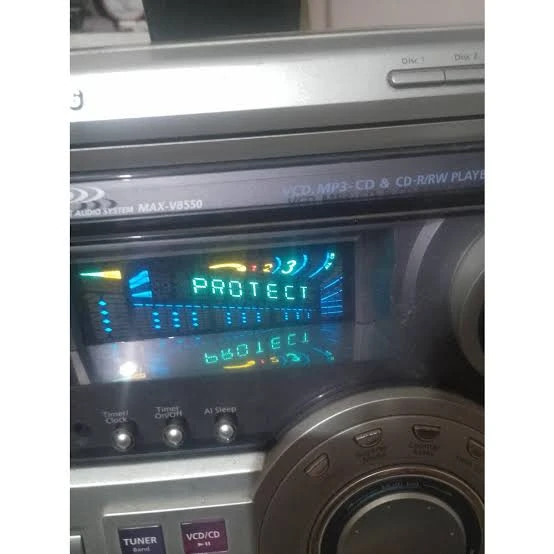

User image 678d9e689b3ce
0
1 comments:
Mr. Anderson
February 4, 2025

The protection issues with the Samsung MAX-B550 include:

1. Electric Shock Risk:
- The device contains dangerous voltage inside that can cause electric shock if mishandled.
- Users are warned not to remove the rear cover or access internal parts.

2. Laser Radiation:
- The CD player is a Class 1 Laser Product. Improper use, such as tampering with controls or defeating interlocks, can expose users to hazardous laser radiation.

3. Fire or Moisture Damage:
- The appliance should not be exposed to rain or moisture to prevent fire or electric shock.

4. Power Supply Issues:
- Users must check the voltage and ensure the system is plugged into an appropriate socket to avoid damage.

5. Battery Corrosion:
- If the remote control is unused for a long time, batteries should be removed to prevent corrosion.

Users are advised to follow the safety instructions and refer servicing to qualified personnel.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Samsung MAX-B550

Summary of Contents for Samsung MAX-B550

  • Page 1 RTV servis Horvat Tel: ++385-31-856-842 Tel/fax: ++385-31-856-139 Mob: 098-788-319 www.rtv-horvat-dj.hr 3 CD CHANGER MINI MINI COMPONENT MAX-B550 MAX-B570 MAX-B555 MAX-ZB550...
  • Page 12 **** MAXB550/B555/B570 PARTS LIST ***** AH26-00164A TRANS POWER;-,MAX-B550,230V,50HZ. AH26-00164B TRANS POWER;-,MAX-B550,127V,60HZ AH26-00164C TRANS POWER;-,MAX-B550,110/220V,60/50HZ AH26-00164D TRANS POWER;-,MAX-B550,230/264V,50HZ AH26-00164F TRANS POWER;-,MAX-B570,230V,50HZ. AH26-00164G TRANS POWER;-,MAX-B570,127V,60HZ AH26-00164H TRANS POWER;-,MAX-B570,110/220V,60/50HZ AH26-00164J TRANS POWER;-,MAX-B570,230/264V,50HZ AH26-00164K TRANS POWER;-,MAX-B570,220V,50/60HZ AH39-00257A POWER CORD;Z-88,-,CP2,250V,2.5A,1830MM AH40-00008A TUNER-PACK ASSY;KST-MB114LS1-30,FM/MW/LW AH42-20001P ANT LOOP;-,KS971120-01,18.5UH##10%,- AH59-00134H REMOCON-ASSY;MAX-B550,SAMSUNG,-,-,27KEY,...
  • Page 13 AH81-00614C A/S-SCREW;-,METAL,6003-000294,-,-,-,- AH81-00614D A/S-WASHER;-,PBT,AJ60-00608A,-,-,-,- AH81-00614E A/S-GEAR(C);-,PBT,AJ66-00006A,-,-,-,- AH81-00614F A/S-GEAR(B);-,PBT,AJ66-00005A,-,-,-,- AH81-00614G A/S-GEAR(A);-,PBT,AJ66-00004A,-,-,-,- AH81-00614H A/S-MOTOR-FEED;-,-,AJ31-00601E,-,-,-,- AH81-00614J A/S-MOTOR-PCB ASSY;-,-,AJ41-00601S,-,-,- AH81-00614K A/S-CONNECTOR;-,-,AJ37-00601A,-,-,-,- AH92-01352A ASSY PCB-FRONT;MAX-B550,FRONT-PCB UIC2 0904-001316 IC-I/O CONTROLLER;M66010,24BIT,SOP,32P,2 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3.5X3M UVR4 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm UVR2 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm UVR1 3406-001054 SWITCH-ROTARY;5V DC,0.5mA,-,7.5mm...
  • Page 14 USW20 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW17 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW18 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW19 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST AH41-00432A PCB;MAX-B550/570/VB555,-,-,-,-,247 AH92-01353A ASSY PCB;MAX-B550,ASSY-MAIN MAX-B550 RBD2 0402-000450 DIODE-BRIDGE;PBL403,200V,4.0A,DIP-4 RBD1 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK OJACK 0603-001051 OPTIC TRANSMITTER;5V,6Mb/s,5m,-15dBm,660 FIC1 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV DIC1 1201-001819 IC-PREAMP;-,-,44P,-,-,-,PLASTIC,18V,625M RIC1 1203-001653 IC-VOLTAGE REGULATOR;4959,MULTIWATT,15P,...
  • Page 15 DC34 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm 2701-000178 INDUCTOR-AXIAL;33uH,10%,3x7mm 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm 3602-000147 FUSE-CLIP;250V,7.5A,30mohm AH92-01354A ASSY PCB;MAX-B550,CE,ASSY-AMP E MAX-B550 AIC1 1201-001582 IC-POWER AMP;402-070,SIP,15P,-,DUAL,30dB AR5L 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP, AR5R 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP, AR4R 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP, AR4L 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP,...
  • Page 16 COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,- AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,- ACW2 AH39-00249A LEAD CONNECTOR ASSY;MX-K5,#1007,22AWG,UL JMP1 AH39-50001L WIRE HARNESS;RING,1007#24,200MM,BLK AH61-00973A BRACKET-H/SINK,L;MAX-WB650,SECC T1.0,-,- AH61-00977A BRACKET-H/SINK,R;NAX-WB650,SECC T1.0,-,- AH62-00063B HEAT SINK-,M;MAX-B550,AL EXTR,-,-,-,-,-, 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, AQ10 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T AQ7R 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 AQ7L 0501-000331 TR-SMALL SIGNAL;KSC1009-Y,NPN,800mW,TO-9 AQ2L 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9...
  • Page 17 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM FR11 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm RR10 2001-000038 R-CARBON;390ohm,5%,1/4W,AA,TP,2.4x6.4mm RR11 2001-000050 R-CARBON;2.7Kohm,5%,1/4W,AA,TP,2.4x6.4m DR18 2001-000111 R-CARBON;150ohm,5%,1/4W,AA,TP,2.4x6.4mm FR25 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m FR24 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm DR17 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm...
  • Page 18 AC4R 2401-001154 C-AL;33uF,20%,10V,GP,-,5x11,2mm AC23 2401-001912 C-AL;1uF,20%,50V,GP,BK,5x11mm,2mm AC22 2401-001912 C-AL;1uF,20%,50V,GP,BK,5x11mm,2mm AC21 2401-001912 C-AL;1uF,20%,50V,GP,BK,5x11mm,2mm **** MAXZB550 PARTS LIST ***** AH26-00164A TRANS POWER;-,MAX-B550,230V,50HZ. AH26-00164B TRANS POWER;-,MAX-B550,127V,60HZ AH26-00164C TRANS POWER;-,MAX-B550,110/220V,60/50HZ AH26-00164D TRANS POWER;-,MAX-B550,230/264V,50HZ AH38-10001A WIRE-LEAD;1007#22,1500MM AH39-00257A POWER CORD;Z-88,-,CP2,250V,2.5A,1830MM/1 AH40-00008A TUNER-PACK ASSY;KST-MB114LS1-30,FM/MW/LW AH42-20001P ANT LOOP;-,KS971120-01,18.5UH##10%,- AH59-00134K REMOCON-ASSY;MAX-B550,SAMSUNG,-,-,27KEY,...
  • Page 19 AH81-00614C A/S-SCREW;-,METAL,6003-000294,-,-,-,- AH81-00614D A/S-WASHER;-,PBT,AJ60-00608A,-,-,-,- AH81-00614E A/S-GEAR(C);-,PBT,AJ66-00006A,-,-,-,- AH81-00614F A/S-GEAR(B);-,PBT,AJ66-00005A,-,-,-,- AH81-00614G A/S-GEAR(A);-,PBT,AJ66-00004A,-,-,-,- AH81-00614H A/S-MOTOR-FEED;-,-,AJ31-00601E,-,-,-,- AH81-00614J A/S-MOTOR-PCB ASSY;-,-,AJ41-00601S,-,-,- AH81-00614K A/S-CONNECTOR;-,-,AJ37-00601A,-,-,-,- AH92-01352A ASSY PCB-FRONT;MAX-B550,FRONT-PCB ASSY UIC2 0904-001316 IC-I/O CONTROLLER;M66010,24BIT,SOP,32P,2 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3.5X3M UVR2 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm UVR4 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm UVR3 3406-001054 SWITCH-ROTARY;5V DC,0.5mA,-,7.5mm...
  • Page 20 UD18 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD15 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD16 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP UD17 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, UQ10 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L, 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO- 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO- 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO- UQ11 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO- 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO- 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO- ULD6 0601-001238...
  • Page 21 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW26 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW25 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW24 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW23 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST USW22 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST AH41-00432A PCB;MAX-B550/570/VB555,-,-,-,-,247 AH92-01353A ASSY PCB;MAX-B550,ASSY-MAIN RBD2 0402-000450 DIODE-BRIDGE;PBL403,200V,4.0A,DIP-4 RBD1 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK OJACK 0603-001051 OPTIC TRANSMITTER;5V,6Mb/s,5m,-15dBm,660 FIC1 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV DIC1 1201-001819 IC-PREAMP;-,-,44P,-,-,-,PLASTIC,18V,625M RIC1 1203-001653 IC-VOLTAGE REGULATOR;4959,MULTIWATT,15P,...
  • Page 22 DC34 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm FC18 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm 2701-000178 INDUCTOR-AXIAL;33uH,10%,3x7mm 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm 3602-000147 FUSE-CLIP;250V,7.5A,30mohm AH41-00434A PCB;MAX-B550/570/VB555/D,-,-,-,-,3 AH92-01354A ASSY PCB;MAX-B550,CE,ASSY-AMP PCB,CE AIC1 1201-001582 IC-POWER AMP;402-070,SIP,15P,-,DUAL,30dB AR5R 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP, AR5L 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP, AR4L 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP, AR4R 2003-000390 R-METAL OXIDE(S);0.27OHM,5%,2W,AA,TP,...
  • Page 23 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,- AC18L 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,- AC2L 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm AC2R 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm AC301 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm AC302 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm AC3R 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5 AC6L 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5 AC4R 2401-001154 C-AL;33uF,20%,10V,GP,-,5x11,2mm AC4L 2401-001154 C-AL;33uF,20%,10V,GP,-,5x11,2mm AC21 2401-001912 C-AL;1uF,20%,50V,GP,BK,5x11mm,2mm AC22 2401-001912 C-AL;1uF,20%,50V,GP,BK,5x11mm,2mm AC23 2401-001912 C-AL;1uF,20%,50V,GP,BK,5x11mm,2mm AH41-00433B PCB;MAX-B550/570/VB555,-,-,-,-,247...
