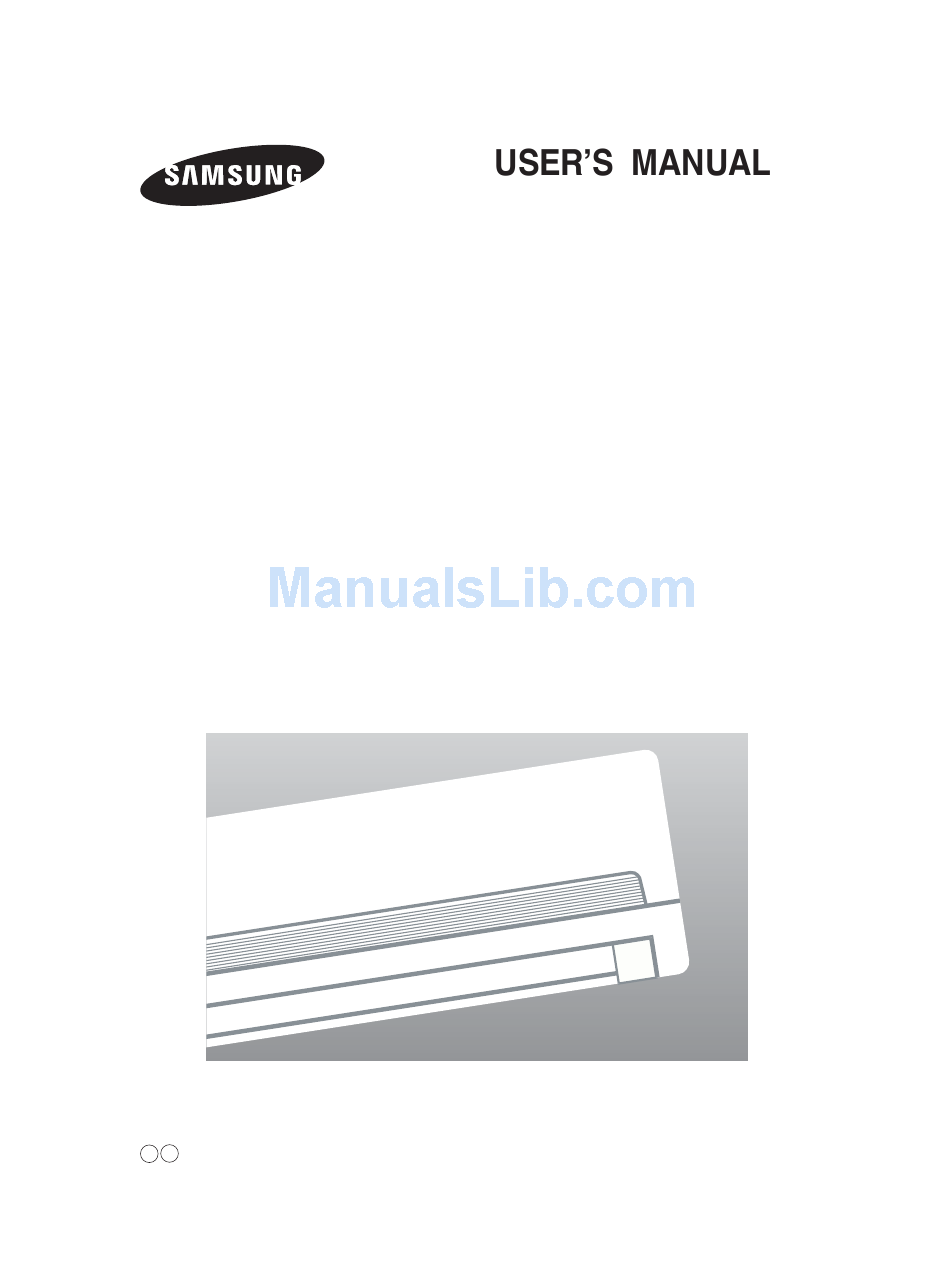

  • Page 1 AQ12F Series AQ09N Series AQ12N Series Split-type Air Conditioner (Cooling and Heating) DB98-28220B...

  • Page 3: Table Of Contents

    Contents REPARING YOUR AIR CONDITIONER I Safety Precautions..............2 I View of the Unit ..............4 Remote Control Buttons and Display ........Inserting the Remote Control Batteries ......... I Getting Started ..............8 PERATING YOUR AIR CONDITIONER Selecting the Automatic Operating Mode......Cooling Your Room .............

  • Page 4: I View Of The Unit

    Series Series...
  • Page 5 Outdoor Unit Air Inlet (Rear) Air Outlet Connection Valve...

  • Page 6: Remote Control Buttons And Display

    Remote Control - Buttons and Display Remote control transmission indicator Mode selection button (AUTO, COOL, DRY, Operating mode indicator FAN, HEAT) AUTO, COOL, DRY, FAN, HEAT) Temperature adjustment Temperature setting buttons Turbo function indicator Turbo button good'sleep mode indicator Fan speed adjustment Fan speed indicator button Swing button...

  • Page 9: Selecting The Automatic Operating Mode

    Selecting the Automatic Operating Mode You can start the air conditioner in Auto mode from your remote control. In the Auto mode, the cooling operation is selected automatically. You can also raise or lower the temperature but not the fan speed. If necessary, press the button.

  • Page 10: Cooling Your Room

    Cooling Your Room You must select the Cool mode if you wish to adjust the: N Cooling temperature N Fan speed when cooling If necessary, press the button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used.

  • Page 11: I Heating Your Room

    Automatic (rotated : ¬ ¬ Medium High...

  • Page 12: Removing Excess Humidity

    Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used.

  • Page 13: Airing Your Room

    Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used.

  • Page 14: Changing The Room Temperature Quickly

    Changing the Room Temperature Quickly The Turbo cooling/heating function is used to cool or heat your room as quickly as possible. Example : You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected.

  • Page 15: Adjusting The Air Flow Direction Vertically

    Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air ow blade on the bottom of the unit, thus increasing the ef ciency of the air conditioner. Press the button one or more times as required.

  • Page 16: Setting The On Timer

    Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 0.5 hour to 24 hours. To set the operating time, press the button one or more times until the required time is displayed.

  • Page 17: Setting The Off Timer

    Setting the off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 0.5 hour to 24 hours. To set the operating time, press the button one or more times until the required time is displayed.

  • Page 18: Selecting Good'sleep Mode

    Selecting good'sleep mode good'sleep mode helps users to fall asleep well after going to bed whether being too hot to sleep or being awakened by coldness. The good'sleep mode can be selected only when the air conditioner is "switched on" in cool mode. Selecting good'sleep mode , as a result, the Off Timer will switch off the air conditioner after 8 hours automatically, or you can press the button to...

  • Page 19: Cool Mode

    Selecting good'sleep mode To prevent excessive cooling/heating during sleep, the good'sleep mode automatically modifies the temperature setting in according with the time setting. Temperature and air current change according to the 3 stages; Falling Asleep, Sound Sleep, Wake Up from good'sleep mode, and then the air conditioner will automatically turn off when the set time has elapsed.

  • Page 20: Operating Recommendations

    Operating Recommendations When you use your air conditioner, it is recommended that you read the following: Topic Recommendation Common Air conditioner should be used only in the single closed room. Effective air conditioner operation can be guarantee if all windows and doorsin the room are closed.

  • Page 21: Temperature And Humidity Ranges

    Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... Then... High temperatures The automatic protection feature may be triggered and the air conditioner stopped. Low temperatures A water leak or some other malfunction may occur if the heat exchanger freezes.

  • Page 22: Solving Common Problems

    Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The air conditioner does not N Check that the breaker used for the air conditioner is switched on. operate at all N Check that the operation indicator on the indoor unit is on;...

  • Page 23: Cleaning Your Air Conditioner

    Cleaning Your Air Conditioner...

  • Page 24: Installation And Maintenance

    Maintenance* Service works means elimination of defects, caused by Manufacturer. Service works are performed by authorized Samsung service centers; you can find contacts at “Customer Contact Center” by phones, mentioned in warranty card 8-800-200-0-400. Preventive maintenance means periodically carried out cleaning, testing, tuning of Aircon, that necessary for its normal work.
  • Page 25 Memo...
  • Page 26 Memo...
  • Page 27 Memo...
  • Page 28 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center. Country Customeer CareCenter Web Site RUSSIA 8-800-555-55-55 www.samsung.ru KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz UZBEKIST AN 8-800-120-0-400 www.samsung.uz UKRAINE 8-800-502-0000 www.samsung.com/ua LITHUANIA 8-800-77777 www.samsung.lt...
  • Page 29 AQ12F Series AQ09N Series AQ12N Series R DB98-28220B...
  • Page 30 • • • ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆...
  • Page 31 ◆ ....... . ■ ....... . ■...
  • Page 32 Series Series...
  • Page 33 SH30ZC1(C2)X...
  • Page 34 good'sleep good'sleep...
  • Page 35 ◆ ◆ ◆ ◆ ◆ ◆ ◆...
  • Page 36 ◆ ◆...
  • Page 37 ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆...
  • Page 38 ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ° ° : ◆ ° ◆ ◆...
  • Page 39 ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ° ° ◆ ° ◆ ◆ ◆ ◆...
  • Page 40 ◆ ◆ ◆ ◆ ◆ ◆ ◆ ° ° ◆ ° ◆ ◆...
  • Page 41 ◆ ◆ ◆ ◆ ◆ ◆...
  • Page 42 ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆...
  • Page 44 ◆ ◆ ◆ ◆ ◆...
  • Page 45 ◆ ◆ ◆...
  • Page 46 good'sleep good'sleep good'sleep good'sleep good'sleep ◆ ◆ good'sleep good'sleep ◆ good'sleep good'sleep good'sleep...
  • Page 48 ◆ ◆...
  • Page 49 ° ° ° ° ° ° ° ° ° ° ° ❇ ° ◆ ◆ ◆...
  • Page 50 ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆...
  • Page 53 AQ12FLN AQ09NLN AQ12NLN 2006.12.8 ~ 2009.1.17...
  • Page 56 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung product, contact the SAMSUNG customer care center . Country Customer Care Center Web Site RUSSIA 8-800-555-55-55 www.samsung.ru KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz UZBEKISTAN 8-800-120-0-400 www.samsung.uz UKRAINE 8-800-502-0000 www.samsung.com/ua...
