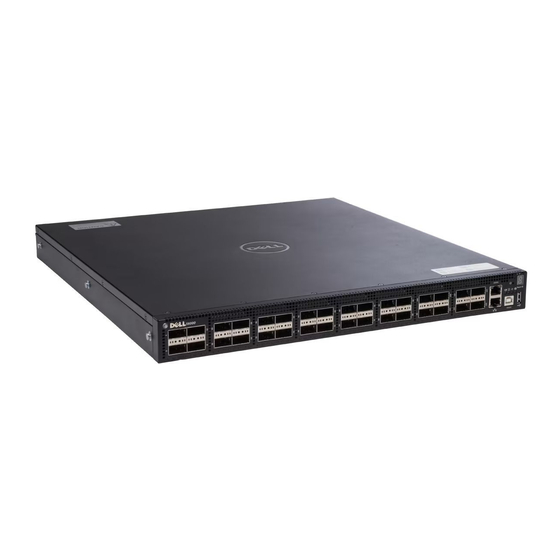

Dell Networking S6000 System Getting Started Manual
Hide thumbs
Also See for Networking S6000 System:
- Test report (19 pages) ,
- Installation manual (56 pages) ,
- Reference manual (1510 pages)
Related Manuals for Dell Networking S6000 System
Summary of Contents for Dell Networking S6000 System
- Page 1 Dell Networking S6000 System Getting Started Guide Publication Date: October 2013 Regulatory Model: S6000...
- Page 2 Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
-
Page 3: Table Of Contents
Rack Mounting Safety Considerations ....Installing the Dell ReadyRails System ....Installing the Switch . - Page 4 Contents Installing the Software ....Navigating CLI Modes ......Console Access .
-
Page 5: About This Guide
About this Guide This document is intended as a Getting Started Guide to get new systems up and running and ready for configuration. For complete installation and configuration information, refer to the documents listed in Table 1-1. Table 1-1. S6000 Documents Information Documentation Hardware installation and power-up... - Page 6 About this Guide...
-
Page 7: Introduction
For information about how to configure and monitor switch features, refer to the FTOS Configuration Guide for the S6000 System, which is available on the Dell Support website at support.dell.com/support. - Page 8 By providing increased 40GbE bandwidth for device interconnection in a shared network storage environment, with the possibility of splitting 40GbE quad small form-factor pluggable plus (QSFP+) uplinks into 10GbE SFP+ connections, the S6000 switch is perfectly positioned to help transition a data center with multiple speed requirements.
-
Page 9: Hardware Overview
Hardware Overview This section contains information about device characteristics and modular hardware configurations for the S6000 switch. The S6000 has the following physical dimensions: • 434 x 460 x 43.5 mm (W x D x H). • 17.09 x 18.11 x 1.71 inches (W x D x H). The S6000 has a chassis design with 1280Gbps switching bandwidth as listed below: •... -
Page 10: I/O Panel
I/O Panel The I/O panel includes: • Thirty-two fixed QSFP+ ports • One USB-A 2.0 port • One USB-B serial console port • One RS-232 serial console port • One 10/100/1000BaseT (RJ-45) Ethernet management port Figure 3-1 shows the S6000 I/O panel. Figure 3-1. -
Page 11: Utility Panel
PSUs are required for full redundancy, but the system can operate with a single PSU. NOTE: If you use a single PSU, install a blank plate in the other PSU slot. Dell Networking recommends using power supply 1 (PSU1) as the blank plate slot. -
Page 12: Fans
WARNING: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the S6000 and its components. CAUTION: To prevent electrical shock, ensure the S6000 is grounded properly. If you ground your equipment correctly, excessive emissions may result. -
Page 13: System Status
System Status You can view S6000 status information in several ways, including LEDs and boot menu options. You can also view status information through the command line interface (CLI) show commands and with simple network management protocol (SNMP). For more information about these options, refer to the FTOS Command Line Reference Guide and FTOS Configuration Guide for the S6000 System. - Page 14 1 - Serial Console 2 - Master LED 3 - Power LED 4 - Fan Status LED 5 - Locator LED 6 - Stack ID 7 - USB-A 8 - USB-B Console 9 - Management Table 3-1 lists the LED definitions for the S6000 system. This includes system, PSU, and fan status.
- Page 15 Table 3-1. System LED indicators Feature Detailed Description Comment System LED • Solid green–Normal operation. CLI I/O side prompt available • Blinking green–Boot-up in progress • Solid yellow–Major Fault. Displays summary of all major faults within the system; the faults are traffic affecting •...
- Page 16 The S6000 supports splitting a single 40G QSFP+ port into four 10G SFP+ ports using one of the supported breakout cables. When you use the fanout feature, the 40G QSFP+ port is deleted and four10G SFP+ ports are created. QSFP+ ports have eight LEDs associated with each stack of two ports; four for the top and four for the bottom ports.
-
Page 17: Installation
Installation Unpacking the Switch This section describes the package contents and the steps to unpack the S6000 switch. Package Contents When unpacking each switch, make sure that the following items are included: • One S6000 switch • One RJ-45 to DB-9 female cable •... -
Page 18: Installing An Ac Or Dc Power Supply
PSU and the status LED is at the bottom of the PSU. NOTE: If you use a single PSU, install a blank plate in the other PSU slot. Dell Networking recommends using power supply 1 (PSU1) as the blank plate slot. -
Page 19: Rack Mount The Switch
You may either place the switch on the rack shelf or mount the switch directly into a 19" wide, EIA-310-E-compliant rack (four-post, two-post, or threaded methods). The Dell ReadyRails™ system is provided for 1U front-rack, and two-post installations. The ReadyRails system includes two separately packaged rail assemblies and two rails that are shipped attached to the sides of the switch. -
Page 20: Installing The Dell Readyrails System
Do not mount the equipment with the rear panel facing in the downward position. Installing the Dell ReadyRails System The ReadyRails rack mounting system is provided to easily configure your rack for installation of your switch. You can install the ReadyRails system using the 1U tool-less method or one of three possible 1U tooled methods (two-post flush mount, two-post center mount, or four-post threaded). - Page 21 Figure 4-1. 1U Tool-less Configuration 2 Align and seat the front flange pegs in the holes on the front side of the vertical post. Refer to Figure 4-1, item 2. 3 Repeat this procedure for the second rail. 4 To remove each rail, pull on the latch release button on each flange ear and unseat each rail.
- Page 22 Two-Post Flush-Mount Configuration: 1 For this configuration, remove the castings from the front side of each ReadyRails assembly. Refer to Figure 4-2, item 1. Use a Torx driver to remove the two screws from each front flange ear (on the switch side of the rail) and remove each casting.
- Page 23 Two-Post Center-Mount Configuration: 1 Slide the plunger bracket rearward until it clicks into place and secure the bracket to the front post flange with two user-supplied screws. Refer Figure 4-3, item 1. Figure 4-3. Two-Post Center-Mount Configuration 2 Slide the back bracket towards the post and secure it to the post flange with two user-supplied screws.
-
Page 24: Installing The Switch
Figure 4-4. Four-Post Threaded Configuration Installing the Switch You can mount the switch in the 1U front-rack or 1U two-post (flush and center) configurations. The following is an example of a 1U front-rack configuration. For the 1U two-post (flush and center) configurations, slide the switch into the rails in the same manner as the four-post configurations. - Page 25 Figure 4-5. Attaching the Switch Rails 2 After you install both switch rails, line them up on the previously mounted Ready-Rails and slide the switch in until it is flush with front of rack. About three inches prior to full insertion, the rail locking feature engages to keep the switch from inadvertently sliding out of the rack and falling.
- Page 26 Figure 4-6. Front Rack Installation Installation...
-
Page 27: Technical Specifications
Technical Specifications Operate the product at an ambient temperature not higher than 40°C. Lithium Battery Caution: There is a danger of explosion if the battery is Replace only with same or equivalent type. Dispose of the incorrectly replaced. batteries according to the manufacturer's instructions. Chassis Physical Design Parameter Specifications... -
Page 28: Power Requirements
Power Requirements Parameter Specifications Power supply 100–240 VAC 50/60 Hz Maximum current draw per system 2.9 A @ 286 watts/100vac 1.4 A @ 286 watts/200vac Maximum power consumption 286 Watts Reliability MTBF 355,178 hours Technical Specifications... -
Page 29: Installing The Software
Installing the Software Navigating CLI Modes The FTOS prompt changes to indicate the CLI mode. You must move linearly through the command modes, with the exception of the end command which takes you directly to EXEC Privilege mode and the exit command which moves you up one command mode level. - Page 30 To set up the RS-232 console port, follow these steps. Step Task Install an RJ-45 copper cable into the console port. Use a rollover cable to connect the S6000 console port to a terminal server. Connect the other end of the cable to the DTE terminal server. Set the default terminal settings as follows: •...
-
Page 31: Default Configuration
Default Configuration A version of FTOS is pre-loaded onto the S6000 system; however, the system is not configured when you power up for the first time (except for the default host name, which FTOS ). You must configure the system using the CLI. Configuring Layer 2 (Data Link) Mode To enable Layer 2 data transmissions through an individual interface, use the switchport command in INTERFACE mode. -
Page 32: Accessing The System Remotely
Accessing the System Remotely You can configure the S6000 system to be accessed remotely by Telnet. The system has a dedicated management port and a management routing table that is separate from the IP routing table. To access the system remotely, follow these steps. Step Task Configure an IP address for the management port... -
Page 33: Configuring The Management Route
— stores the password in the running/startup configuration using a data encryption standard (DES)-encryption method. • enable secret — stores the password in the running/startup configuration using a stronger, MD5-encryption method. Dell Networking recommends using the enable secret password. Installing the Software... -
Page 34: Creating A Port-Based Vlan
To configure the enable secret password, follow this step. Task Command Syntax Command Mode Create a password to enable [password | secret] [level level] CONFIGURATION access EXEC [encryption-type] password Privilege mode. Creating a Port-based VLAN The default VLAN (VLAN 1) is part of the system startup configuration and does not require configuration. - Page 35 To view which interfaces are tagged or untagged and to view which VLAN the interfaces belong, use the show vlan command. To view just the interfaces that are in Layer 2 mode, use the show interfaces switchport command in EXEC Privilege mode or EXEC mode.
-
Page 36: Assigning An Ip Address To A Vlan
Assigning an IP Address to a VLAN VLANs are a Layer 2 feature. For two physical interfaces on different VLANs to communicate, assign an IP address to the VLANs to route traffic between the two interfaces. The shutdown command in INTERFACE mode does not affect Layer 2 traffic on the interface. - Page 37 Printed in the U.S.A. www.dell.co m | sup po r t.de ll.c om...
