Page 1: User Manual

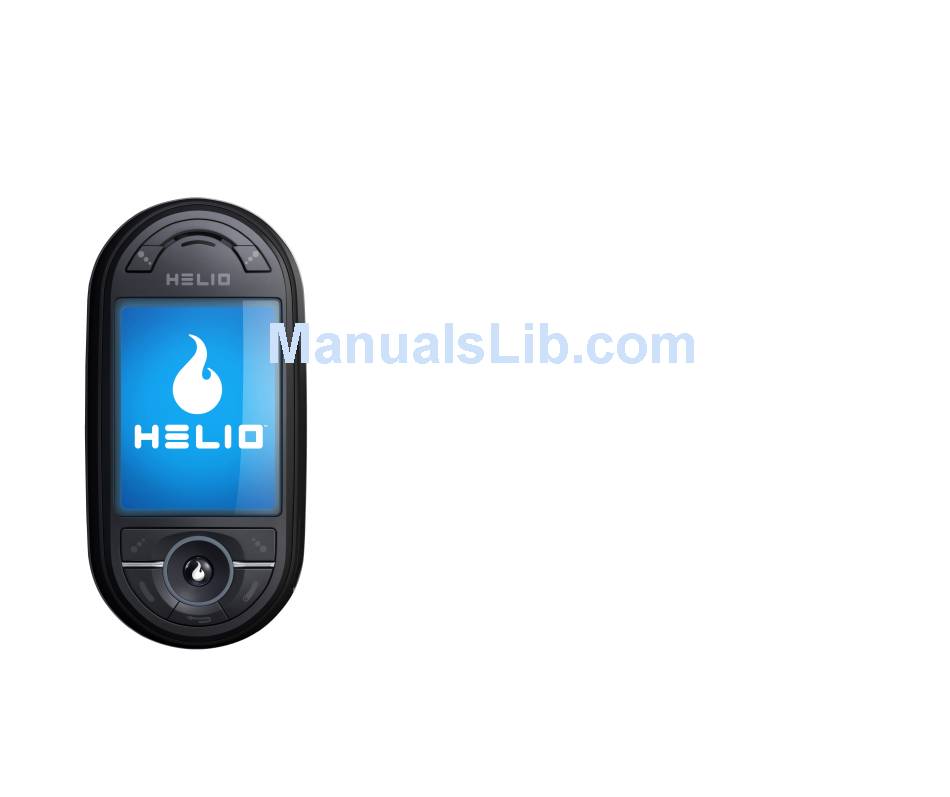

User Manual OCEAN... -
Page 2: Table Of Contents
WELCOME hank you for choosing the Helio Ocean wireless handset. Developed by our dedicated team of top researchers, this product allows for high speed communication services, such as web browsing, and data services, and has an animated, graphic menu system for easy access to its many features. - Page 3 CHAPTER 4. MENU FUNCTIONS...45 CUSTOMIZE ...46 RINGS...46 DOWNLOAD RINGS ...46 SCREENS...47 DOWNLOAD SCREENS ...48 SETTINGS ...48 SURF ...64 ACCESS HELIO PORTAL ...64 GO...64 BROWSER MENU...64 SNAP ...69 CAMERA ...69 VIDEO CAMERA ...74 PHOTO ALBUM ...78 VIDEO ALBUM...80 HELIO ALBUM ...81 TABLE OF CONTENTS SETTINGS ...82...
- Page 4 TABLE OF CONTENTS MESSAGE ...111 SEND TEXT/PIC ...112 TEXT/PIC INBOX ...114 OVER-THE-AIR SETTINGS SERVICE ...115 INSTANT MESSAGING ...116 EMAIL MESSAGES ...118 SEND EMAIL ...119 HELIO MAIL ...121 YAHOO!...121 AOL...122 WINDOWS LIVE...122 GMAIL...122 EARTHLINK ...123 EMAIL MENU OPTIONS...123 CUSTOM POP3/IMAP ...124 APPS...125...
-
Page 5: Inside The Package
International Charm Function Key BEFORE USING This handset is a dual-mode CDMA2000 1X, EVDO digital handset with camera and WEB browsing capabilities. The Ocean weighs 5.61 oz. The dimensions are 4.33” x 2.20” x 0.86”. Downloads Key Earpiece Alerts Key... -
Page 6: The Function Keys
HANDSET DESCRIPTION BEFORE USING (15) Download Store key - (18) Space bar keys - Enters a Press to access Helio Store. (16) Shift key - Enters upper (19) Emoticon key - Opens a case letters and symbols. You can either press the... -
Page 7: Display Indicators
New TEXT or voice message/ Text Message Voicemail Pic Message New TEXT or voice Pic message/New Email/ Pic+Text Message Email Helio Mail New Instant Message Yahoo Mail Windows Live Yahoo IM AOL Mail Windows Live Battery Battery charging level – the more fill, the stronger the charge. -
Page 8: Battery Usage
BATTERY USAGE BEFORE USING BATTERY INSTALLATION As shown in the picture below, put the metal locators of the battery into the holes located in the bottom of the unit. Place the battery on the back of the handset and slide into place. Push the battery down until it locks into place. -
Page 9: Battery Handling Information
BATTERY USAGE BEFORE USING BATTERY USAGE TIMES The operating time is subject to your handset usage and configuration. Battery Capacity STD 1320 mAh up to 360 Minute BATTERY STANDBY TIME The operating time is subject to your handset usage and configuration. Battery Capacity STD 1320 mAh up to 260 Hours... -
Page 10: Microsd Card Usage
MICROSD CARD USAGE BEFORE USING USING MICROSD CARD (OPTIONAL ACCESSORY) The microSD card stores sounds, images, photos and videos, music, and other files. INSTALLING THE MICROSD CARD To install your microSD card, use the following steps: With the microSD card slot opened, and the gold contacts facing down, insert the microSD card into the slot. -
Page 11: Turning The Handset On / Off
TURNING THE HANDSET BASIC OPERATION ON / OFF TURNING THE HANDSET ON Slide the handset open, press and hold “HELIO” Logo and animation appears and the power on tone sounds. • If your handset is locked, enter your 4-digit password to unlock your handset when “Enter Lock Code”... -
Page 12: Menu Summary
2. Trusted Devices 3. Discovery Mode 4. Find Device 5. Device Name MENU SUMMARY BASIC OPERATION DEPTH DEPTH 1. Access Helio Portal 1. Camera 2. Video Camera 3. Photo Album 1. Default 4. Video Album 1. Default 5. Helio Album 1. -
Page 13: Basic Functions
7. Notepad 8. Voice Memo 9. Stopwatch 0. Memory Info 8. MESSAGE 1. Send Text/Pic 2. Send Email 3. Text/Pic Inbox 4. Helio Mail 5. Yahoo! 6. AOL 7. Windows Live 8. Gmail 9. EarthLink 9. APPS Download App BASIC FUNCTIONS... -
Page 14: Calling A Number From Contacts
BASIC FUNCTIONS BASIC OPERATION CALLING A NUMBER FROM CONTACTS Press [CONTACT] to access the directory. Select the desired phone number and press ANSWERING A CALL When your handset rings or vibrates, slide the handset open, press to answer the incoming call. (Depending on your handset’s settings, you may also answer incoming calls by opening the handset or by pressing any number key.) -
Page 15: Call Waiting
BASIC FUNCTIONS BASIC OPERATION CALL WAITING Notifies you of an incoming call when you are already on a call by sounding a beep tone and displaying the caller’s phone number. To answer another call while on the handset, press This places the first call on hold. To switch back to the first caller, press again. -
Page 16: Music Player
Want to download your music and video files onto your Ocean? It’s easy, all you need is the USB cable included with your Ocean. First, plug one end of the USB cable into the Ocean and the other end into your computer’s USB port. -
Page 17: Call History
BASIC FUNCTIONS BASIC OPERATION CALL HISTORY Displays information about All Calls, Missed Calls, Incoming Calls, Outgoing Calls and Ignored calls. Press To see a list of the 40 most recent All Calls, Missed Calls, Incoming Calls, Outgoing Calls and Ignored calls. -
Page 18: Making An Emergency Call
DURING A CALL BASIC OPERATION SEND MESSAGE Enables you to send a message (SMS) during a call. Press [MENU] MY NUMBER Enables you to see your handset number while on a call. Press [MENU] RECORD CALL Records the conversation for up to three minutes during a call. DO NOT record any calls unless you have informed all the parties in the call that you are recording the conversation. -
Page 19: Chapter 3. Memory Functions
MEMO CHAPTER 3 MEMORY FUNCTIONS This chapter addresses memory functions including: STORING A PHONE NUMBER ENTERING LETTERS, NUMBERS & SYMBOLS MAKING A CALL FROM THE PHONE BOOK... -
Page 20: Storinga Handset Number
STORING MEMORY FUNCTIONS A HANDSET NUMBER The contact list stores up to 4500 entries (2500 Helio, 1000 Yahoo!, and 1000 AOL)." Slide the handset open, enter handset # then press [SAVE], and then choose “New Contact” or “Existing Contact”. Press to select. -
Page 21: Entering Letters, Numbers & Symbols
ENTERING LETTERS, MEMORY FUNCTIONS NUMBERS & SYMBOLS STANDARD INPUT MODE Use the number keys to enter letters, numbers and characters. Enter letters using the key pad as follows: Press Press Press Key Pad 2 times 3 times 1 Time 2ABC 3DEF 4GHI 9WXYZ... -
Page 22: Numeric Mode
ENTERING LETTERS, MEMORY FUNCTIONS NUMBERS & SYMBOLS NUMERIC MODE Allows you to enter numbers. Press [Abc] repeatedly, until “123” mode is displayed. To enter a number, press a digit key. SYMBOL MODE Allows you to enter symbols. Press [Abc] repeatedly, until “Sym” mode is displayed. -
Page 23: Making A Call From The Phonebook
MAKING A CALL FROM MEMORY FUNCTIONS THE PHONEBOOK ONE-TOUCH/TWO-TOUCH DIALING Ideal for frequently dialed numbers, this feature allows phone book entries to be dialed via the keypad with only one or two key presses. ONE-TOUCH DIALING: 1~9: Press and hold the corresponding memory number for more than 1 second. -
Page 24: Screens
Delete All: Delete all contents in the live ring list. • File Info: Display the selected live ring information. To save it, press [SET]. DOWNLOAD RINGS Connects directly to the Helio Store, where you can download rings. Press [MENU] Connecting to Helio Service. to access the Settings CUSTOMIZE... -
Page 25: Download Screens
CUSTOMIZE MENU FUNCTIONS DOWNLOAD SCREENS Connects directly to the Helio Store, where you can download screens. Press [MENU] Connecting to Helio Service. SETTINGS Customizes your handset and optimizes performance through a variety of settings. SOUND Sets Ring Vibration, Volume, Alerts, Sound Effects and Missed Calls. - Page 26 Keypad: To set key tone with left or right Navigation Key. (Off, KeyClick, LeoClick, Tick, Arp, Henry) • Slide: To set Slide tone with left or right Navigation Key. (Off, Mambo1 ~ Mambo5, Helio) • Menu: To set menu select tone with left or right Navigation Key. (Off, On) •...
- Page 27 • Banner: To select Banner with left or right Navigation Key. (Off, On) • Text: To enter a banner. (Default-Helio) • Font Color: To select a banner color with left or right Navigation Key. To save, press MENU FUNCTIONS [MENU] [SET].
- Page 28 CUSTOMIZE MENU FUNCTIONS FONT To select a Font Mode: Press [MENU] To select Font set mode with up or down Navigation Key. 1. English: Type1 / Type2 2. Korean: Type1 / Type2 To save, press [SET]. BACKLIGHT Backlights the LCD, while the slide is closed and keypad light for easy viewing in dark places.
- Page 29 CUSTOMIZE MENU FUNCTIONS CALL FORWARDING The device can divert all incoming calls to another number with this feature (network dependent). To activate call forwarding: Press [MENU] Select one of the following options with up or down Navigation Key. 1. On/Off: To select “On” or “Off” with Navigation Key. 2.
- Page 30 CUSTOMIZE MENU FUNCTIONS DEVICE Displays the following information about your handset: Memory Info, S/W Version, My Number, resets handset to default settings and Mode Transition Time. MEMORY INFO To view “Internal“ or “External“ memory information. Press [MENU] Select “Internal Memory” or “External Memory” with left or right Navigation Key.
- Page 31 CUSTOMIZE MENU FUNCTIONS SECURITY Prevents unauthorized use of your handset. The following settings can be restricted: PHONE LOCK Prevents the handset from being used without entering the password first. Press [MENU] password. (The default password is “0000”.) Press “Phone Lock”. Select “Lock Now”, “Lock at Power Up”...
- Page 32 CUSTOMIZE MENU FUNCTIONS POWER The Power feature allows you to turn the Bluetooth function on and off. Press [MENU] Select “On” or “Off” then press To extend battery life, set Bluetooth power to “Off” when not in use. If you turn Bluetooth power “Off”, your phone will not connect to accessories until you turn Bluetooth power “On”...
-
Page 33: Surf
3. Games: To launch Helio Games web site. 4. Rings: To launch Helio Rings web site. 5. Screens: To launch Helio Screen web site. 6. Helio Album: To launch Helio UP Album web site. VIEW 1. FIT TO SCREEN / SHOW ACTUAL SIZE Select “Fit To Screen”... - Page 34 Displays security certificate information for the secure web sites when available. SEARCH 1. SEARCH Navigates to the Helio search page. 2. FIND IN PAGE To find words or phrases in a current web site. 3. INSERT MOBILE NUMBER Insert Mobile Number from Contacts in a text entry field.
-
Page 35: Snap
Send Message: To send a picture message. • Send Email: To send a email. • Helio UP: To upload picture to Helio Screen web site. • Set As Screen: To assign to display for idle screen. • Set As Contact Pic: To assign to display for contact’s ID. - Page 36 Send Message: To send a picture message. • Send Email: To send a email. • Helio UP: To upload picture to Helio Screen web site. • Set As Screen: To assign to display for idle screen. • Set As Contact Pic: To assign to display for contact’s ID.
- Page 37 SNAP MENU FUNCTIONS UNDER [MENU] - 1. Camera Mode To select a camera mode. (Photo, Video) UNDER [MENU] - 2. Shot Mode To select a Shot Mode. (Single, Auto Series 4cuts, Auto Series 6cuts, Auto Series 9cuts). If you taking a picture with the handset closed, to select a Shot Mode.
-
Page 38: Video Camera
Send Message: To send a picture message. • Send Email: To send a email. • Helio UP: To upload video to Helio Screen web site. • Set As Screen: To assign to display for idle screen. VIDEO MODE OPTIONS When the handset is open and in Video Mode, several user options are available. - Page 39 SNAP MENU FUNCTIONS UNDER [MENU] - 1. Camera Mode To select a camera mode. (Photo, Video) UNDER [MENU] - 2. Recording Type To select a video recording type. (Normal, MMS Movie, Idle Screen Movie) UNDER [MENU] - 3. Resolution To take a video which can be sent as a Pic Message, ensure resolution is set at 176x144.
-
Page 40: Photo Album
MENU FUNCTIONS PHOTO ALBUM In Review Mode you can view all the pictures you have taken, store selected images in your handset, send pictures to the Helio Album with Helio UP, delete images and access additional picture options. Press [MENU] Select saved Photo’s Folder. -
Page 41: Video Album
Select the video with the Navigation Key and then press [PLAY] or press [MENU]. Helio Album allows you to upload photos from photo album by sending pictures messages using Navigation Up Key to your Helio Album. [CHECK/UNCHECK]. SNAP... -
Page 42: Settings
To preview set options, press Press [SAVE] to save option. The Ocean comes equipped with a 2-megapixel built-in camera that allows you to print images directly to a printer using PictBridge technology. A USB cable must be connected between your handset and the printer before any printing can occur. -
Page 43: Video+Music
- Shuffle+Repeat: To select “Normal”, “Shuffle All”, “Repeat All” or “Repeat One” with Navigation Key, then press DOWNLOAD VIDEO Connects directly to the Helio Store, where you can download videos. Press [MENU] Connecting to Helio Service. to access the Get Video... -
Page 44: Music
- Equalizer: To select “Auto”, “Default”, “Rock”, “Jazz”, “Classic” or “Pop” with Navigation Key, then press VIDEO+MUSIC DOWNLOAD MUSIC Connects directly to the Helio Music Store, where you can download music. Press Connecting to Helio Service. MUSIC PLAYER MENU FUNCTIONS... -
Page 45: Memory
External Memory: Enter your password, then press [YES]. Press [OK]. Stores up to 4500 entries (2500 Helio, 1000 Yahoo!, and 1000 AOL), each of which can be assigned to a group. Entries can be retrieved by name, handset number or group. CONTACT MENU FUNCTIONS... -
Page 46: Contact
CONTACT MENU FUNCTIONS NEW CONTACT Adds a new entry. To add a new entry to the phone book, press [CONTACT] To enter a name or number, use the Navigation Key to select the phone book field. • Contact Field: First Name, Last Name, Graphic, Phone Number 1 ~ 6, Speed Dial, Ring, Default Number, Email, Instant Messaging, MySpace, Notes, Group. -
Page 47: Search Contacts
CONTACT MENU FUNCTIONS SEARCH CONTACTS You can review all the entries stored in your phone book list or find an entry quickly by entering all or part of a name. Press [CONTACT] Enter a name or its character string, press [SEARCH]. -
Page 48: Synchronize
CONTACT MENU FUNCTIONS SYNCHRONIZE Press [CONTACT]. Press [MENU] Select MyHelio Sync, Yahoo! Sync, or AOL Sync, press • Yahoo! and AOL Sync options will only appear after you have configured your Yahoo! or AOL email (see Email section for details). •... -
Page 49: Settings
CONTACT MENU FUNCTIONS SETTINGS Press [CONTACT]. Press [MENU] • Name Display: Press [LIST] to select “First name Last name” or “Last name First name”. • Hide Yahoo! Contacts: Press • Hide AOL Contacts: Press • Usage Stats: Press [GO] to usage contacts information appears. -
Page 50: Games
GAMES MENU FUNCTIONS From the Games menu, press to access the Download menu, press to access the Last menu. DOWNLOAD GAME Press [MENU] Press the [MENU] to access the following Option: • Move to Folder: To move the selected game to the other saved location or folders. -
Page 51: Wake-Up Call
PLAN MENU FUNCTIONS SUBJECT Use the keypad to enter a title in your annual event. DATE Use the keypad to change or enter the date. ANNUALLY Press to check annually set. CONTENTS Use the keypad to input an anniversary plan message. Press [SAVE] to save it or calendar. -
Page 52: Alarm
To set a “Screen” using the left or right Navigation Key. (No picture, Helio Night, Helio Day, Helio Orange, Sea, Helio Type 1 ~ 3, Light Rain, Monoeye, Organic, Pattern Type 1 ~ 4, Starmap, Waterdrop, Zigzag Type 1 ~ 2,... -
Page 53: Calculator
PLAN MENU FUNCTIONS MEMO Use the keypad to input an alarm message. Press [SAVE] to save it. Press [MENU] to 1. Delete or 2. Delete All. CALCULATOR To access the calculator: Press [MENU] Follow the instructions below to calculate 6 4-2.5=9.5 •... -
Page 54: Unit Converter
PLAN MENU FUNCTIONS UNIT CONVERTER To access the unit converter: Press [MENU] Select the desired convert unit item with left or right Navigation Key, and input number. To change the unit type (for example: m, cm...) with left or right Navigation Key. •... -
Page 55: Voice Memo
PLAN MENU FUNCTIONS VOICE MEMO Voice Memo allows you to record a reminder message that can be up to remain time. To record a memo: Press [MENU] Record a new voice memo, press To stop recording a memo, press voice memo. The list of all memos, in saved order, is displayed. -
Page 56: Memory Info
2. Setup Email Accounts: Set user preferences for prepopulated emails and setup new email boxes. Ocean allows you to set up two (2) more mailboxes using any POP3 or IMAP account. Note that some IMAP Exchange accounts may need to be tested and customized with your system administrator."... -
Page 57: Message
MESSAGE MENU FUNCTIONS SEND TEXT/PIC In the message menu, you can open the keypad to writing a message quickly. To compose a new text message: Press [MENU] “To” field is highlighted. Input the recipient hand- set number and press • By pressing [CONTACTS], you can choose from the following:... -
Page 58: Text/Pic Inbox
MESSAGE MENU FUNCTIONS TEXT/PIC INBOX The Inbox manages received Text/Picture messages. To access: Press [MENU] Select a message and press If URL is included, press [GoTo]. If handset number is included, press If video file is included, press To reply to the message, press •... -
Page 59: Instant Messaging
MESSAGE MENU FUNCTIONS INSTANT MESSAGING Ocean provides access to your Yahoo!, AOL, or Windows LIve Instant Messaging services. If you're a registered user, you can take the experience with you on your Ocean. From your Message screen just navigate to the portal to get started. There are three tabs inside each of the portals;... -
Page 60: Email Messages
EMAIL MESSAGES Mobile email allows you to access your Yahoo! Mail, AOL Mail, AIM Mail, Windows Live (Hotmail or MSN Mail), Gmail, Earthlink, or Helio Mail accounts on your handset. Now you can quickly and easily check your email while you're away from your computer. You can... -
Page 61: Helio Mail
MESSAGE MENU FUNCTIONS HELIO MAIL To use your Helio Mail account, you just need to setup your password. As a Helio member, you automatically received a your_device_ number@myhelio.com Email Account (ex. 3105551212@myhelio.com) and have the option to create a friendly username during the pass- word process. -
Page 62: Aol
MESSAGE MENU FUNCTIONS Press [MENU] Input the “Screen Name” and press Input the “Password” and press WINDOWS LIVE Press [MENU] Input the “E-mail address” and press Input the “Password” and press GMAIL Press [MENU] Read the message, press EARTHLINK EMAIL MENU OPTIONS MESSAGE MENU FUNCTIONS Press... -
Page 63: Custom Pop3/Imap
MESSAGE MENU FUNCTIONS CUSTOM POP3/IMAP Enter the “exact” configuration details provided by your email provider. Make sure to select either IMAP or POP3 for Incoming Mail Server Type to match your email provider and confirm all other form details are correct. -
Page 64: Chapter 5. Safety And Warranty
MEMO CHAPTER 5 SAFETY AND WARRANTY This chapter addresses the safety guidelines and precautions to follow when operating your handset. Before operating your handset, please be aware of all the safety details. This chapter contains the terms and conditions of services and the warranty for your handset. -
Page 65: Safety Information For Wireless Handheld Handsets
SAFETY INFORMATION FOR SAFETY AND WARRANTY WIRELESS HANDHELD HANDSETS Read This Information Before Using Your Handheld Portable Cellular Device EXPOSURE TO RADIO FREQUENCY SIGNALS Your wireless handheld portable device is a low power radio trans- mitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. -
Page 66: Chapter 1. Before Using Your Handset
SAFETY INFORMATION FOR SAFETY AND WARRANTY WIRELESS HANDHELD HANDSETS ELECTRONIC DEVICES Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless handset. PACEMAKERS The Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless handset and a pacemaker to avoid potential interference with the pacemaker. -
Page 67: Safety Information For Fcc Rf Exposure
SAFETY INFORMATION FOR SAFETY AND WARRANTY WIRELESS HANDHELD HANDSETS PRECAUTIONS Your Handheld Portable Device is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on (1) AC Adaptor (2) Battery and (3) Product Using Battery. •... -
Page 68: Sar Information
SAR INFORMATION SAFETY AND WARRANTY THIS MODEL HANDSET MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. -
Page 69: Fcc Hearing-Aid Compatibility (Hac) Regulations For Wireless Devices
FCC HEARING-AID COMPATIBILITY SAFETY AND WARRANTY (HAC) REGULATIONS FOR WIRELESS DEVICES On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless handsets under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless handsets be compatible with hearing-aids. -
Page 70: Fda Consumer Update
FDA CONSUMER UPDATE SAFETY AND WARRANTY U.S. Food and Drug Administration - Center for Devices and Radiological Health Consumer Update on Wireless Handsets 1. Do wireless handsets pose a health hazard? The available scientific evidence does not show that any health problems are associated with using wireless handsets. - Page 71 FDA CONSUMER UPDATE SAFETY AND WARRANTY 4. What are the results of the research done already? The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless handsets have yielded conflicting results that often cannot be repeated in other laboratories.
- Page 72 FDA CONSUMER UPDATE SAFETY AND WARRANTY 8. What has FDA done to measure the radiofrequency energy coming from wireless handsets ? The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless handsets and other wireless handsets with the participation and leadership of FDA scientists and engineers.
- Page 73 FDA CONSUMER UPDATE SAFETY AND WARRANTY 12. Where can I find additional information? For additional information, please refer to the following resources: • FDA web page on wireless phones (http://www.fda.gov/cdrh/phones/index.html) • Federal Communications Commission (FCC) RF Safety Program (http://www.fcc.gov/oet/rfsafety) • International Commission on Non-Ionizing Radiation Protection (http://www.icnirp.de) •...
-
Page 74: Month Limited Warranty
12 MONTH LIMITED SAFETY AND WARRANTY WARRANTY Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular device, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s... - Page 75 12 MONTH LIMITED SAFETY AND WARRANTY WARRANTY Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.
