Heath Zenith SL-5210 Owner's Manual

Motion Sensor
Decorative Lighting
Control
Model SL-5210
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Override, the control must be
wired through a wall switch.
• Some codes require installation by a qualified
electrician.
• Switch Module mounts into a standard 4" x 4" junction box.
The SL-5210 package includes:
• The Sensor Module and Switch Module
• Three wire nuts
• Two sensor module screws

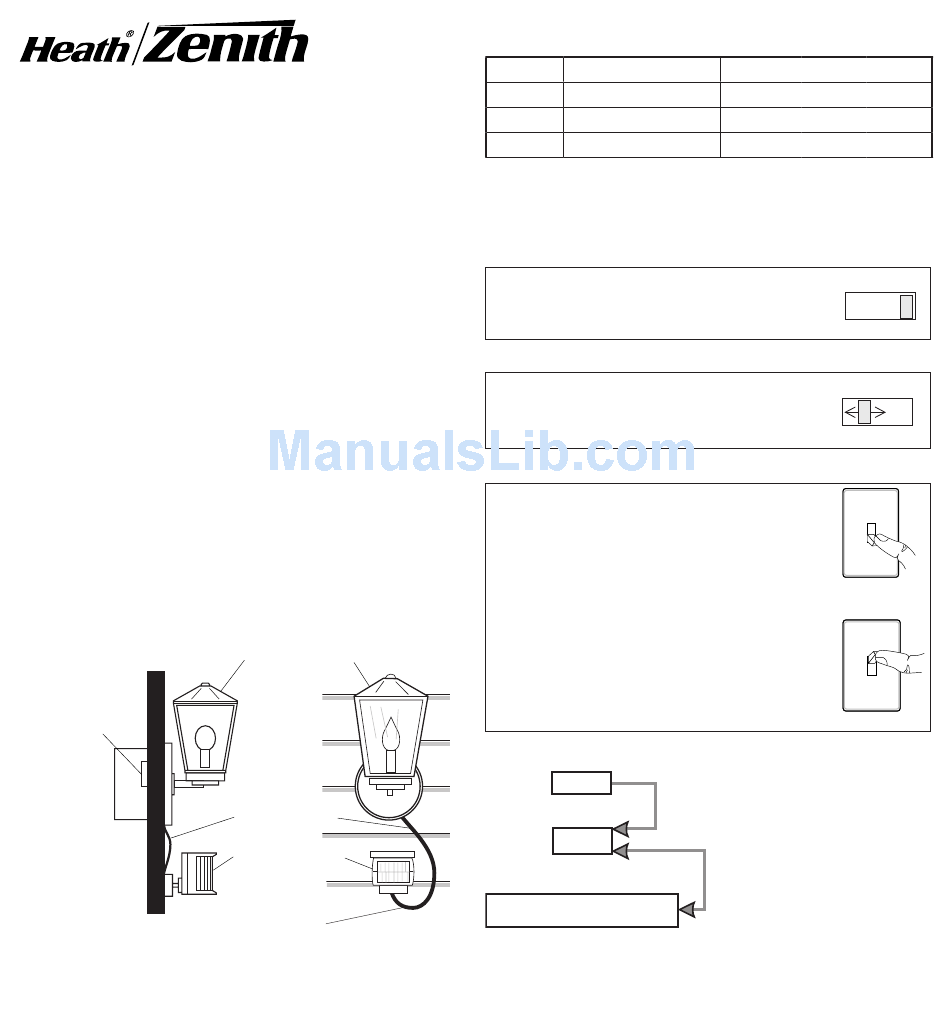

Typical Installation
Switch Mod-
ule In Junction
Box Behind
Light Fixture
NOTE: The Drip Loop is neccessary to prevent rain from
running down the cord to the Sensor Module.
© 2007 HeathCo LLC
Features
Existing Light Fixture
Sensor Cord
Sensor Module
Drip Loop
OPERATION
Mode: On-Time:
Test
5 Sec
Normal 1, 5, 10 min.
Manual Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
circuitry to calibrate.
Put the ON-TIME switch on the bottom of the
sensor in the TEST position.
Put the ON-TIME switch in the 1, 5, or 10
minute position.
MANUAL MODE
Manual mode only works at night because
daylight returns the sensor to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO and
MANUAL MODE.
Manual mode works only with the ON-TIME
switch in the 1, 5, or 10 position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the power
off for one minute, then back on. After the calibration time
(1 / min.) the control will be in the AUTO mode.
1
2
Works: Day
x
/ minutes for the
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
Move ON-TIME Switch to 1,
5, or 10 minutes
Flip switch off for one
second then back on*
595-4991-07
Night
x
x
x
