Heath Zenith Motion Sensing Halogen Fixture SH-5525 Owner's Manual

Motion Sensing
Halogen Fixture
Model SH-5525
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Bulb Saver™ - Extends bulb life by up to 4x standard
bulbs. Lights bulb to full bright in under 2 seconds.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

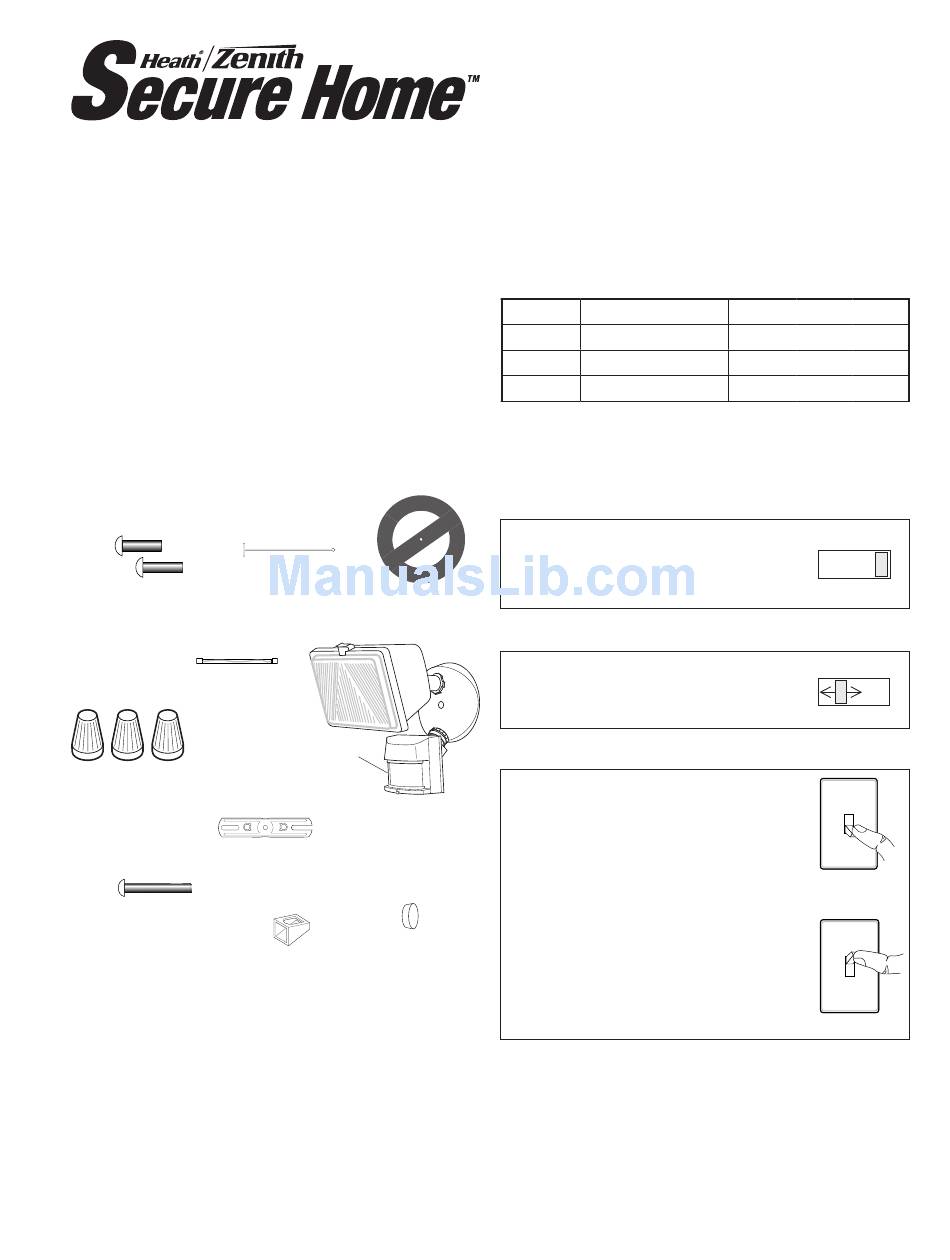

This package includes:
Plastic Hanger
6 Screws
(3 sizes included)
1 Halogen
Lamp
3 Wire
Connectors
Mounting Strap
Mounting Bolt
Light Shield
© 2008 HeathCo LLC
Gasket
Sensor
Light Control
Rubber Plug
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
OPERATION
Mode: On-Time:
Test 5 Sec
Normal
1, 5, 10 min.
Manual
Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the
bottom of the sensor in the TEST
position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Works: Day Night
x
/ minutes for
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
598-1161-03
x
x
x
