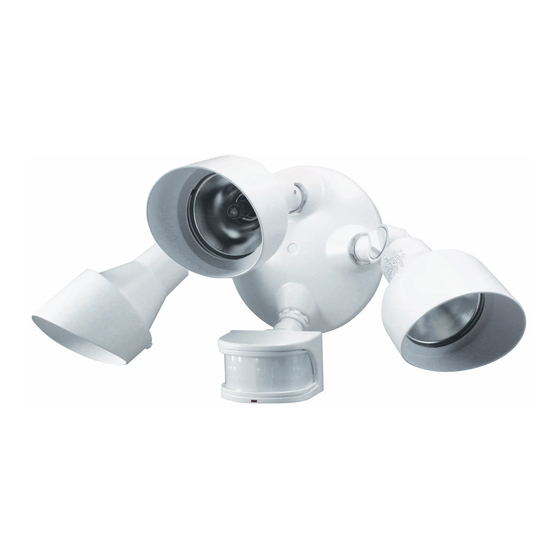

Heath Zenith SL-5798-WH-A - Heath - 270-Degree Triple Head Halogen Motion Sensing Security Light User Manual

D B
ual rite
Halogen Motion
Sensing Light
Model 5798
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Three lamp modes available: Normal, Soft, or Flash.
• D B ® Timer.
ual rite
• Photocell keeps the lighting off during daylight
hours.
• LED indicates motion was sensed (day or night).
This package includes:
Plastic Hanger
Rubber Plug
Cover
Plate
Light Control
Mounting Bolt
Mounting Strap
3 Halogen Bulbs
(Installed)
© 2007 HeathCo LLC
Triple
®
6 Mounting
Screws (3 sizes)
3 Wire
Connectors
Sensor
Gasket
Light Shield
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
OPERATION
Mode: On-Time:
Test 5 Sec
Normal 1, 5, 20 min.
Manual
Until Dawn*
Accent
3, 6 Hr. to Dawn
* resets to Auto Mode at dawn.
NOTE: When first turned on wait about 1
the circuitry to calibrate.
Put ON-TIME switch
on the sensor bottom
to TEST and the D -
ual
B switch OFF.
®
rite
LAMP MODE
Put the LAMP MODE switch
in the Normal, Soft, or Flash
position.
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Works: Day Night
x
/ minutes for
1
2
TEST
ON-TIME D B
ual rite
TEST 1 5 20 Off 3 6 Dusk to
Dawn
LAMP MODE
NORMAL SOFT FLASH
AUTO
ON-TIME
TEST 1 5 20
598-1309-01
x
x
x
x
®
