Heath Zenith SL-5670 Installation Instructions

Model SL-5670
READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through
conduit or another acceptable means. Contact a qualified electrician if there is any question as to the suitability of
the system.

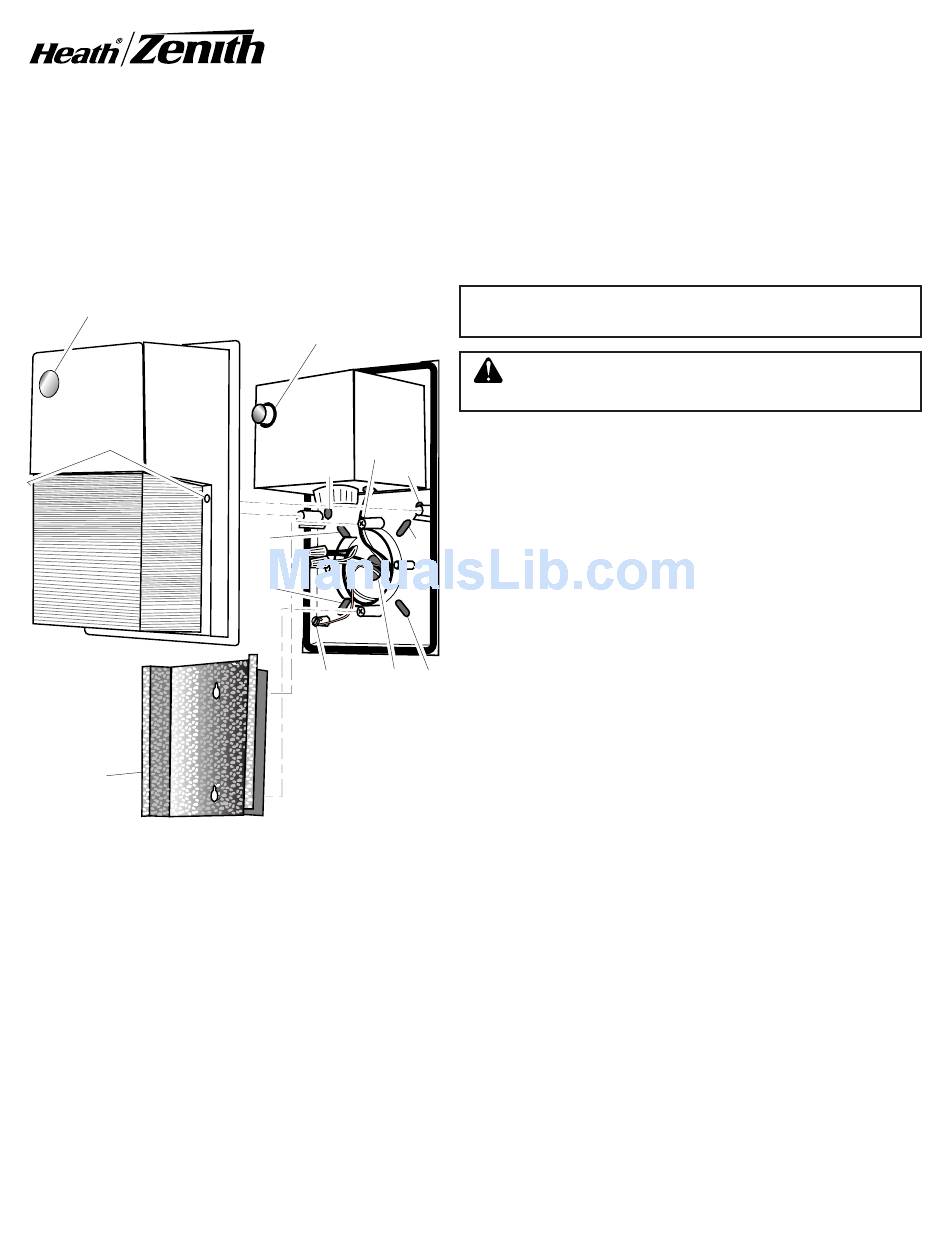

Photocontrol

Window
(A)
Reflector
© 2007 HeathCo LLC

Installation Instructions

Photocontrol
(B)
(C)
(C)
(E)
(F)
(F)

Ground

(D) (E)
Screw

No Service Parts Available for this Product

See your Canadian Tire retailer for warranty information.
High Pressure Sodium
Dusk-To-Dawn Wall Light
Lamp in Fixture Contains Mercury. Dispose According
to Local, State, or Federal Laws.
WARNING: Turn power off at the fuse or circuit
breaker.
1. Select a location on a flat wall with structurally sound wood. The
wood should be at least 3/4 inch thick to safely secure the fixture.
2. Loosen the two screws (A) securing the front housing until the
screws turn easily. Remove the front housing.
3. Loosen screw (B) two turns. Slide the reflector up until the keyholes
clear the screw heads and remove the reflector.
If Mounting Directly to Wall
4. Knock out slugs at (C) and (D).
5. Attach cable clamp or flexible conduit to hole (D). Thread the service
wires thru this hole.
6. Mount the fixture with two 1/4 inch lag screws that will penetrate
the wood surface at least 3/4 inch.
Or, if Mounting to a 3-1/2" or 4" Electrical Box
4. Determine which pair of slots line up with the mounting holes on
your box, (E) or (F). Knock out the slugs that line up. Knock out
slug (D).
5. Thread the service wires thru hole (D).
6. Mount the fixture to the box with screws of the proper size for your
box.

Wiring and Final Assembly

7. Connect the fixture wires to the service wires (black to black and
white to white). Secure with wire nuts provided.
8. Secure the service ground wire under the head of the green ground
screw.
9. Make sure the wire nuts and wires are inside the circular wiring
compartment. Reinstall the reflector and tighten screw (B).
10. Install ONLY a 35 watt H.P.S. type S76 lamp (provided).
11. Reinstall the front cover.
To test operation during daylight, cover the photocontrol window with
black tape. Turn on the power. The photocontrol has a time delay (up
to 2 minutes) before it will respond to light changes. The light will take
up to ten minutes to reach full brightness. Uncover the photocontrol and
your unit will operate automatically—on at dusk, off at dawn.
for Canadian Tire
598-1210-01
